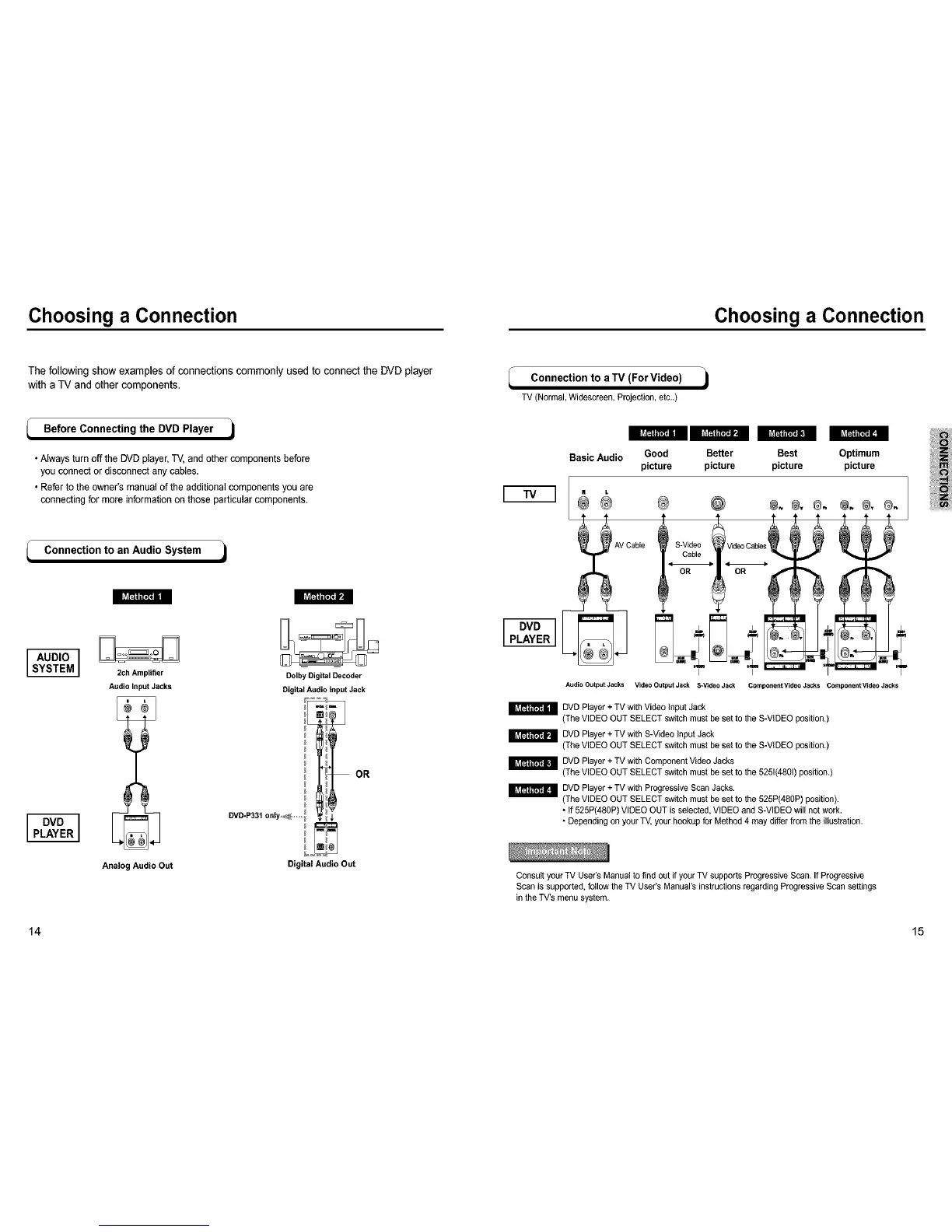

Choosing a Connection Choosing a Connection
The following show examples of connections commonly used to connect the DVD player
with a TV and other components.
Before Connecting the DVD Player
• Always turn off the DVD player,TV,and other components before
you connect or disconnect any cables,
• Refer to the owner's manual of the additional components you are
connecting for more information on those particular components,
Connection to an Audio System j
_'_II
AUDIO ]
SYSTEMJ
2chAmplifier
Audiofi utJacks
[ DVD 1
PLAYERI
Analog Audio Out
Dolby Digital Decoder
DigitalAudioInput Jack
m_
i OR
DVD-P331onty_d
Digital Audio Out
Connection to a TV (For Video)
TV(Normal,Widescreen,Projection,etc..)
TV
DVD ]
PLAYER]
m
m
m
m
mm m
h'J_EI
Basic Audio Good Better Best Optimum
picture picture picture picture
®.®, ®.®,®.
S-Video I V'_eoCabIes
Cable
OR OR
Audio Output Jacks Video Output Jack S-Video Jack Component Video Jacks Component Video Jacks
DVD Player +TV withVideo input Jack
(The VIDEO OUT SELECT switch must be set to the S-VIDEO position.)
DVD Player +TV with S-Video inputJack
(The VIDEO OUT SELECT switch must be set to the S-VIDEO position.)
DVD Player +TV with Component Video Jacks
(The VIDEO OUT SELECT switch must be set to the 5251(4801)position.)
DVD Player +TV with Progressive Scan Jacks.
(The VIDEO OUT SELECT switch must be set to the 525P(480P) position).
• if 525P(480P) VIDEO OUT is selected, VIDEO and S-VIDEO will not work,
• Depending on your TV, your hookup for Method 4 may differ from the illustration,
Consult your TV User's Manual to find out if your TV supports Progressive Scan. If Progressive
Scan is supported, foflow the TV User's Manual's instructions regarding Progressive Scan settings
in the TV's menu system.
14 15
