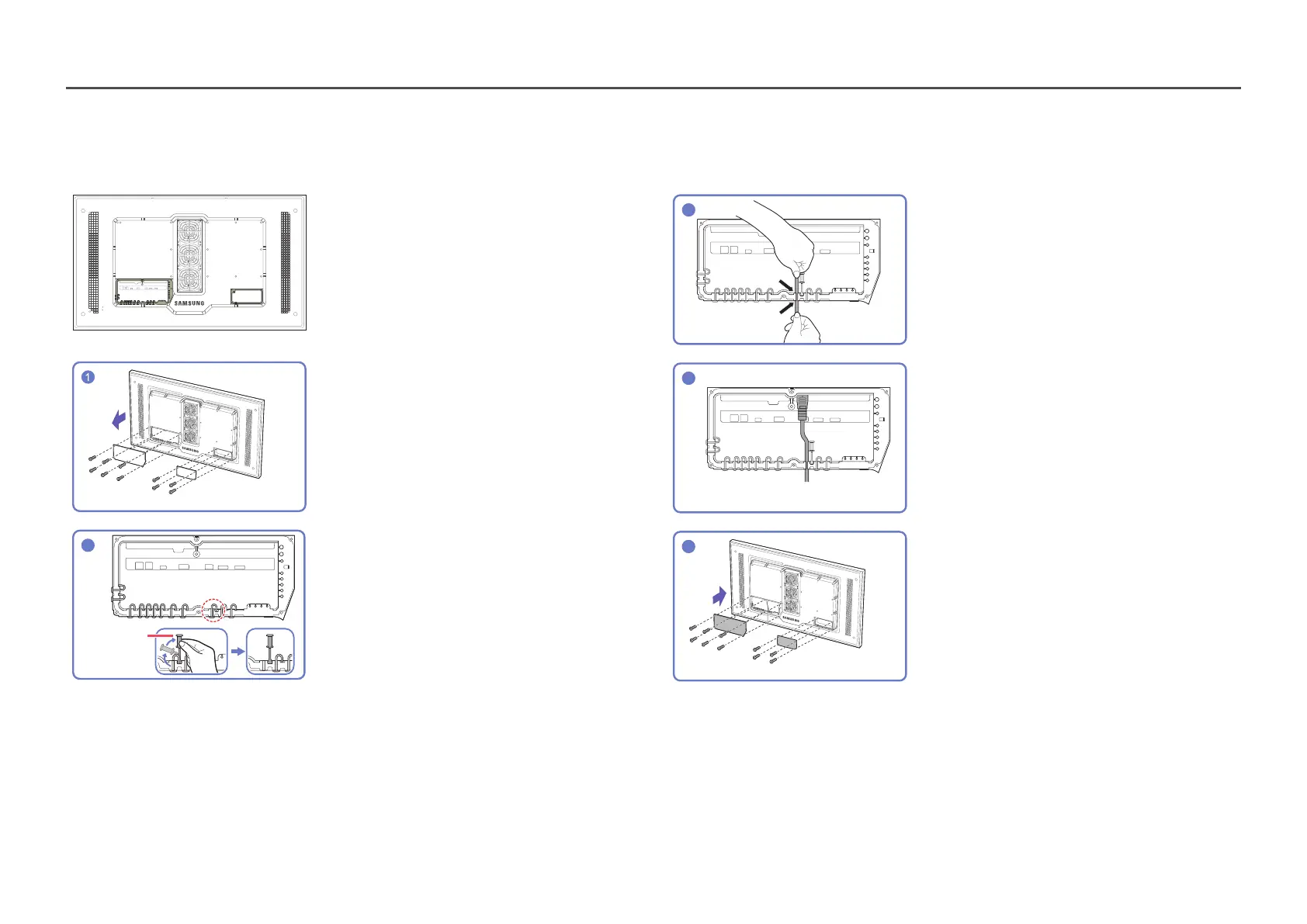

Before connecting cables

The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.
Unfasten the screws, then remove the cover.
2
Silicone bar
Remove the appropriate silicone bar for the
thickness of the cable to connect.
Different hole sizes and corresponding cable
thickness for each:
* JACK

7 Ø hole x 2: Insert the 7 Ø cable

5.5 Ø hole x 6 : Insert the 5.5 Ø cable

3 Ø hole x 4 : Insert the 3 Ø cable
* POWER INLET

7 Ø hole x 1: Insert the 7 Ø cable
3
Insert the appropriate cable into the hole from
which the silicone bar was removed.
4
The cable should be connected as shown.
5
Close the cover, then fasten the screws.

After all the cables are connected, make sure to
close the cover and fasten the screws to ensure it is
water tight.

Recommended torque : 10 - 12 kgf.cm

Samsung OH55F Specifications

General

Panel life	- h
Color gamut	72 %
Pixel pitch	- mm
Touchscreen	-
Response time	6 ms
Display diagonal	55 \
Display brightness	2500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	96 - 123 Hz
Horizontal scan range	108 - 139.5 kHz
Contrast ratio (dynamic)	100000:1
Display number of colors	16.78 million colors
Supported graphics resolutions	1920 x 1080 (HD 1080)
DVI port	No
Ethernet LAN	Yes
DisplayPorts quantity	0
VGA (D-Sub) input ports	1
Operating hours (hours/days)	24/7
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Placement supported	Outdoor
Panel mounting interface	1186 x 560 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	292 W
Annual energy consumption	405 kWh
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 80 %
Package depth	230 mm
Package width	1358 mm
Package height	845 mm
Package weight	58100 g
Cables included	AC

Weight and Dimensions

Depth	85 mm
Width	1260.6 mm
Height	731.4 mm
Weight	52600 g
