Connecting to a Video Device
 Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
 You can connect a video device to the product using a cable.

Connecting parts may differ in different products.

Press the SOURCE button on the remote control to change the source.
Using an HDMI cable or HDMI to DVI Cable (up to 1080p)
 For better picture and audio quality, connect to a digital device using an HDMI cable.
 An HDMI cable supports digital video and audio signals, and does not require an audio cable.
 The picture may not display normally (if at all) or the audio may not work if an external device that
uses an older version of HDMI mode is connected to the product. If such a problem occurs, ask the
manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.
 Be sure to use an HDMI cable with a thickness of 14 mm or less.
 Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection
error may occur.
 A basic high-speed HDMI cable or one with ethernet is recommended.
This product does not support the ethernet function via HDMI.

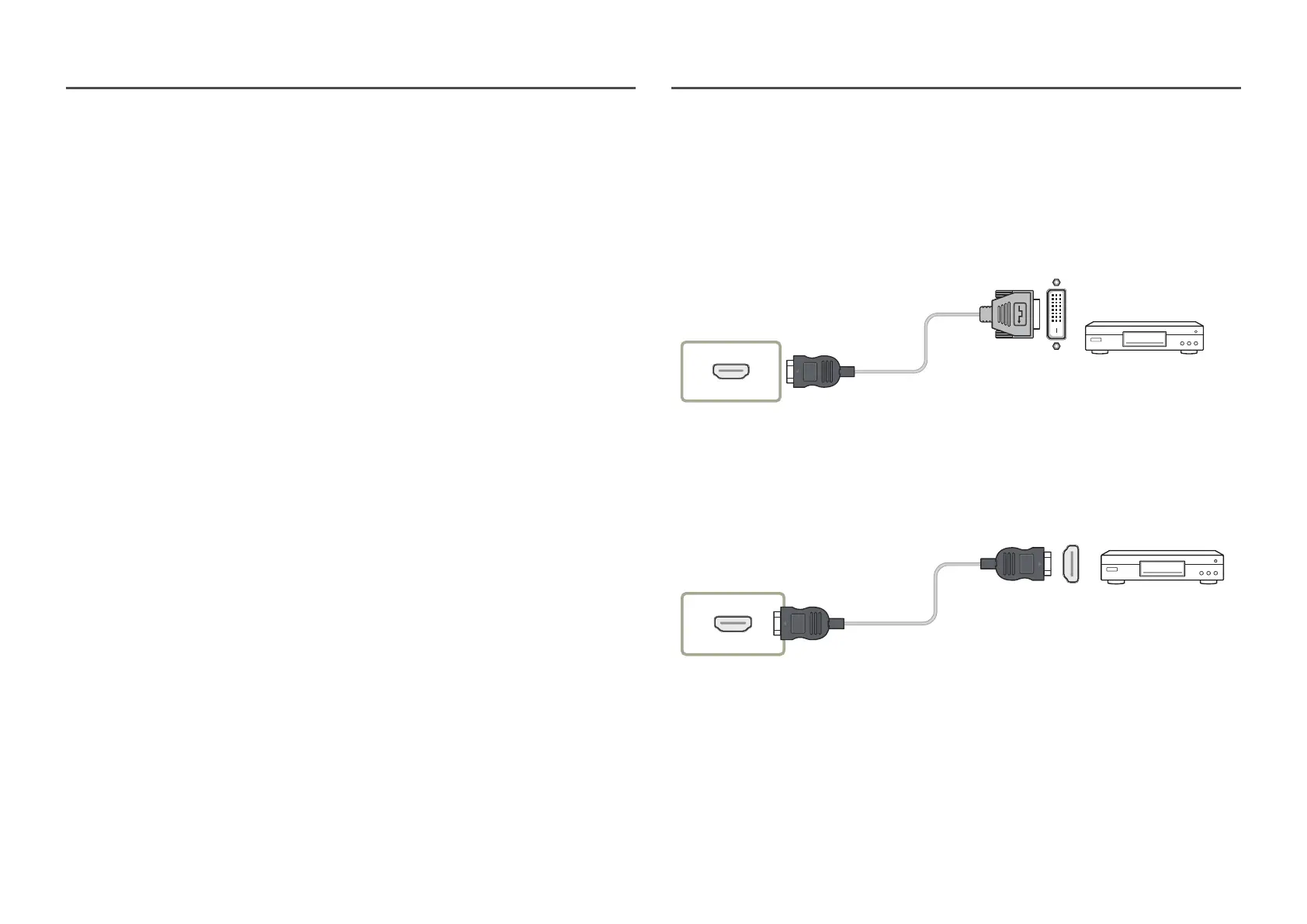

Connection Using an HDMI-DVI Cable
Supported resolutions include 1080p (50/60Hz), 720p (50/60Hz), 480p, and 576p.

The appearance may differ depending on the product.

Connecting parts may differ in different products.

Audio will not be enabled if the product is connected to a video device using an HDMI-DVI cable.
HDMI IN 1, HDMI IN 2
Connection Using an HDMI Cable

The appearance may differ depending on the product.

Connecting parts may differ in different products.
HDMI IN 1, HDMI IN 2

Samsung OH55F Specifications

General

Panel life	- h
Color gamut	72 %
Pixel pitch	- mm
Touchscreen	-
Response time	6 ms
Display diagonal	55 \
Display brightness	2500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	96 - 123 Hz
Horizontal scan range	108 - 139.5 kHz
Contrast ratio (dynamic)	100000:1
Display number of colors	16.78 million colors
Supported graphics resolutions	1920 x 1080 (HD 1080)
DVI port	No
Ethernet LAN	Yes
DisplayPorts quantity	0
VGA (D-Sub) input ports	1
Operating hours (hours/days)	24/7
Orientation	Horizontal/Vertical
Product color	Black
Product design	Digital signage flat panel
Placement supported	Outdoor
Panel mounting interface	1186 x 560 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	292 W
Annual energy consumption	405 kWh
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 80 %
Package depth	230 mm
Package width	1358 mm
Package height	845 mm
Package weight	58100 g
Cables included	AC

Weight and Dimensions

Depth	85 mm
Width	1260.6 mm
Height	731.4 mm
Weight	52600 g
