Samsung SC-DX205 User Manual

102_ English
connecting to AV devices
You can view the recorded video and photo images(SC-DX205 only) on a large screen by connecting the
DVD camcorder to a TV.
CONNECTING TO A TV
•
This function is available in DISC Play/CARD Video Play/CARD Photo Play mode.

page 26
• To play back your recordings, the television must be NTSC compatible.

page 121
• We recommend that you use the AC power adaptor as the power source for the DVD
camcorder.

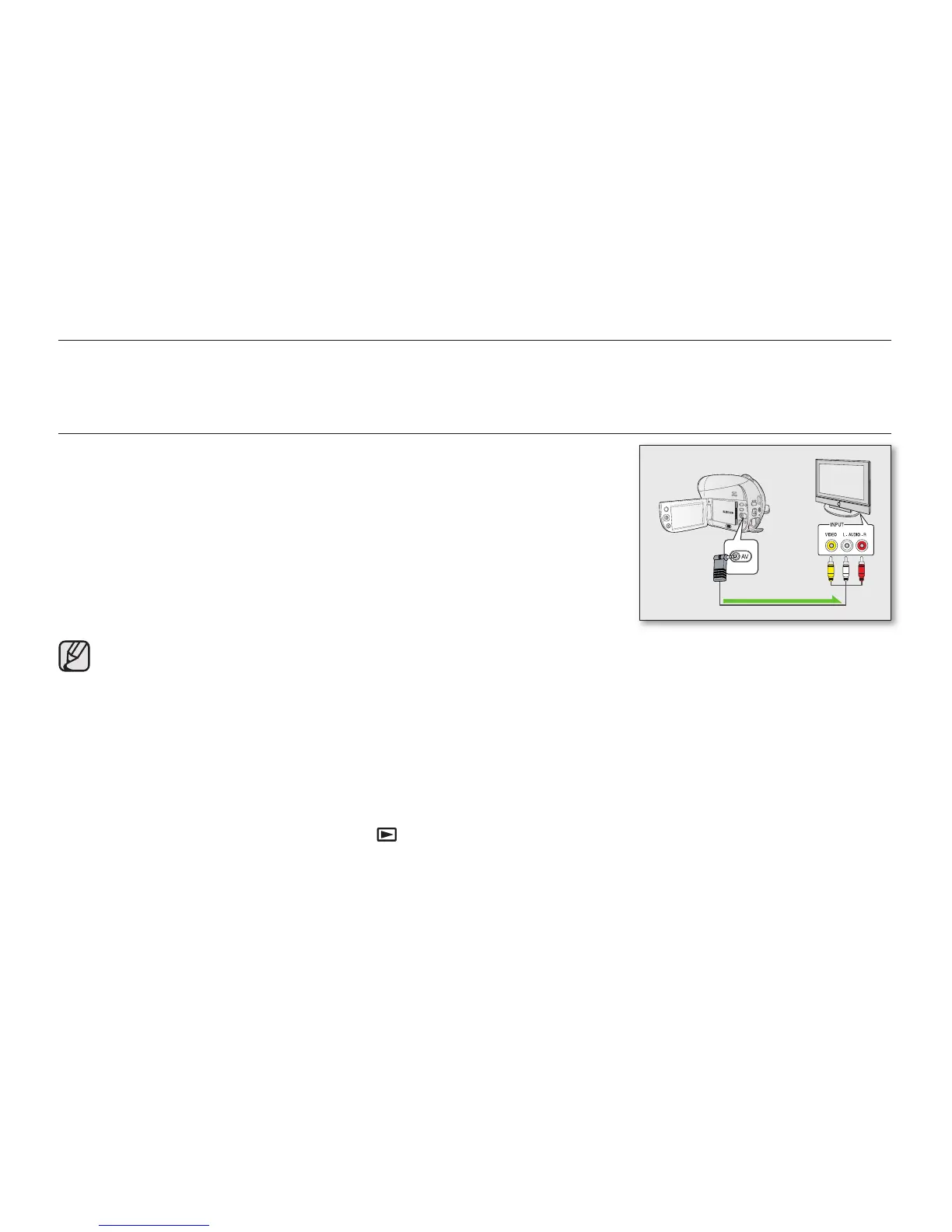

Use the provided AV cable to connect the DVD camcorder to a TV as
follows:
1. Connect the end of the AV cable with the single plug to the AV jack of the
DVD camcorder.
2. Connect the other end with video (yellow) and left(white)/ right(red) audio
cables to the TV.
• For more information about the connection, refer to your TV’s user manual.
• Before connecting, make sure that the volume on TV is turned down: forgetting this may cause feedback from the TV
speakers.
• Carefully connect the input and output cables to the corresponding connections on the device the DVD camcorder is being
used with.
Viewing on TV screen
1. Turn on the TV and set the input selector to the Input connection the DVD camcorder is connected to.
- This is often referred to as “line.” Refer to the TV instruction manual for how to switch the TV input.
2. Turn the DVD camcorder on.
- Slide the
POWER switch downwards, then open the LCD screen.
- Set the appropriate storage media. (SC-DX205 only)

page 38
- Press the MODE button to select the Play ( ) mode.

page 26
- Press the MENU button and use the Joystick to set the desired “Play Mode” on the menu.

page 45
- The image from the camcorder will appear on the TV screen.
3. Perform playback.
- You can perform playback, recording or make settings in the menu while viewing on your TV screen.
TV
Signal fl ow
AV cable
DVD camcorder

Samsung SC-DX205 Specifications

General

Filter size	30.5 mm
Digital zoom	2200 x
Optical zoom	34 x
Image stabilizer	Yes
Focal length range	2.3 - 78.2 mm
Sensor type	CCD
Total megapixels	0.68 MP
Optical sensor size	1/6 \
I/O ports	- Composite output: 1Vp-p (75 Om) - Audio output: -7.5dBs (600 Om) - USB output: Mini-B
Minimum RAM	64 MB
Minimum processor	Power PC G5
Power requirements	AC 100 - 240V 50/60Hz, DC 8.4 V
Aperture range (F-F)	1.6 - 4.3
Minimum system requirements	USB2.0
Power consumption (typical)	3 W
Compatible operating systems	Windows 2000, XP MAC OS X v 10.4+
Display diagonal	2.7 \
Display resolution	720 x 480 pixels
Video formats supported	H.264
Analog signal format system	NTSC
Camera shutter speed	1/60 - 1/10000 s
Minimum illumination	2 lx
Product color	Black
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	121.5 mm
Width	56.5 mm
Height	91 mm
Weight	365 g
