INSTALLATION (SNO-6084R)
J
`
This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the
external cable is not. You are recommended to install this product below the edge of eaves to
prevent the cable from being externally exposed.

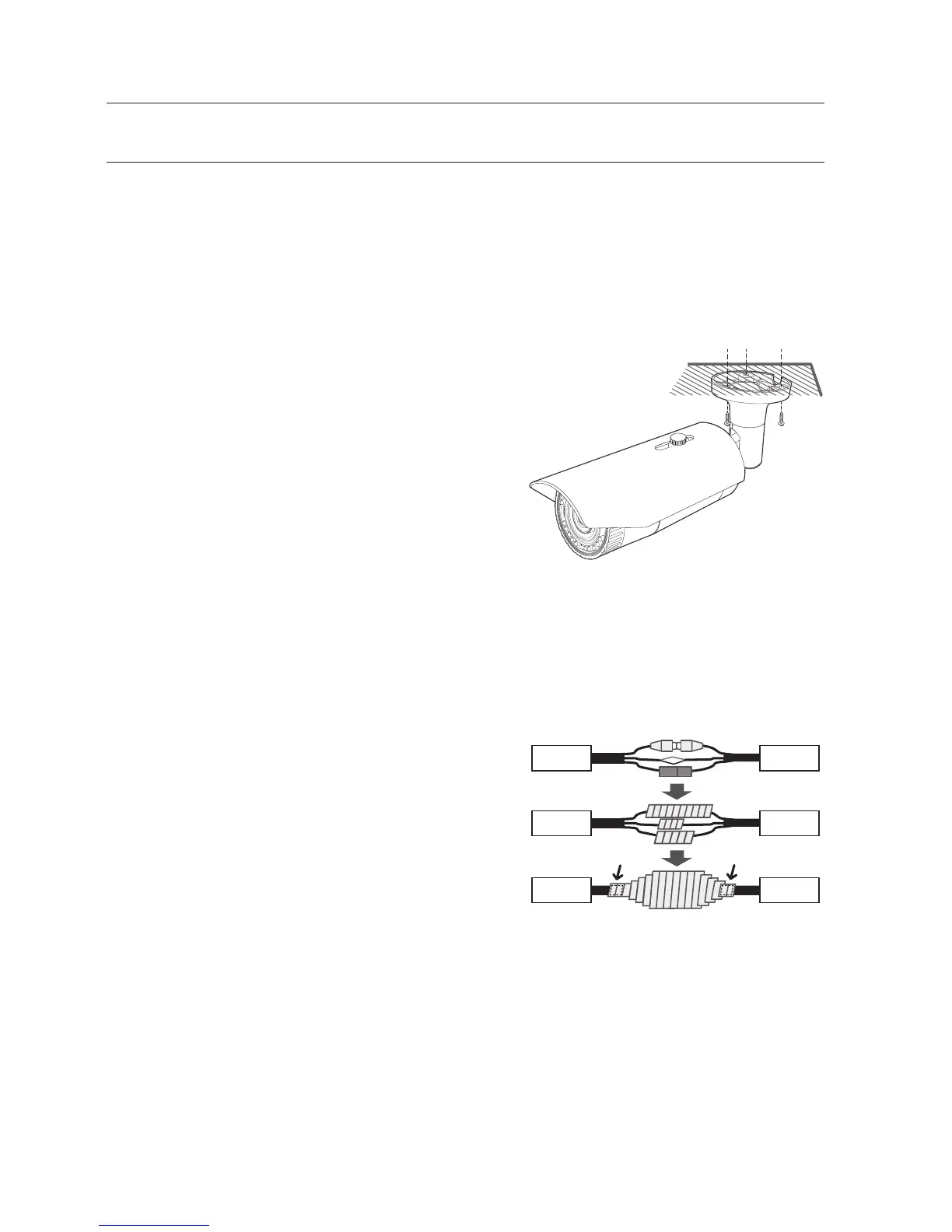

Installation
1. Fix the camera in 3 holes by tightening the
three tapping screws supplied with the
product.
2. Connect the cables with the camera port.
3. Adjust the direction of the camera with the
L-wrench supplied with the product.
Outdoor installation
When you install it outside of the building, please waterproof it with waterproof butyl rubber
tape (can be purchased in stores) so that water does not leak from the gap of the cable
connected to the outside.
1. Connect the power, I/O, BNC, and LAN
cables.
2. Wrap the black cable jacket (Area A) and the
cable connection area with waterproof (butyl
rubber) tape so that more than half of the
butyl rubber tape is overlapped.
J
`
If the cable jacket is not waterproofed properly,
then it can directly cause leakage. Make sure to
protect the cable with a dense layer of taping.
`
Waterproof butyl tape is made of butyl rubber that can be stretched to twice its normal length.
