Samsung SND-6084R User Manual

English _29
● INSTALLATION & CONNECTION
INSTALLATION (SNV-6084R)
J
`
This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the
external cable is not. You are recommended to install this product below the edge of eaves to
prevent the cable from being externally exposed.

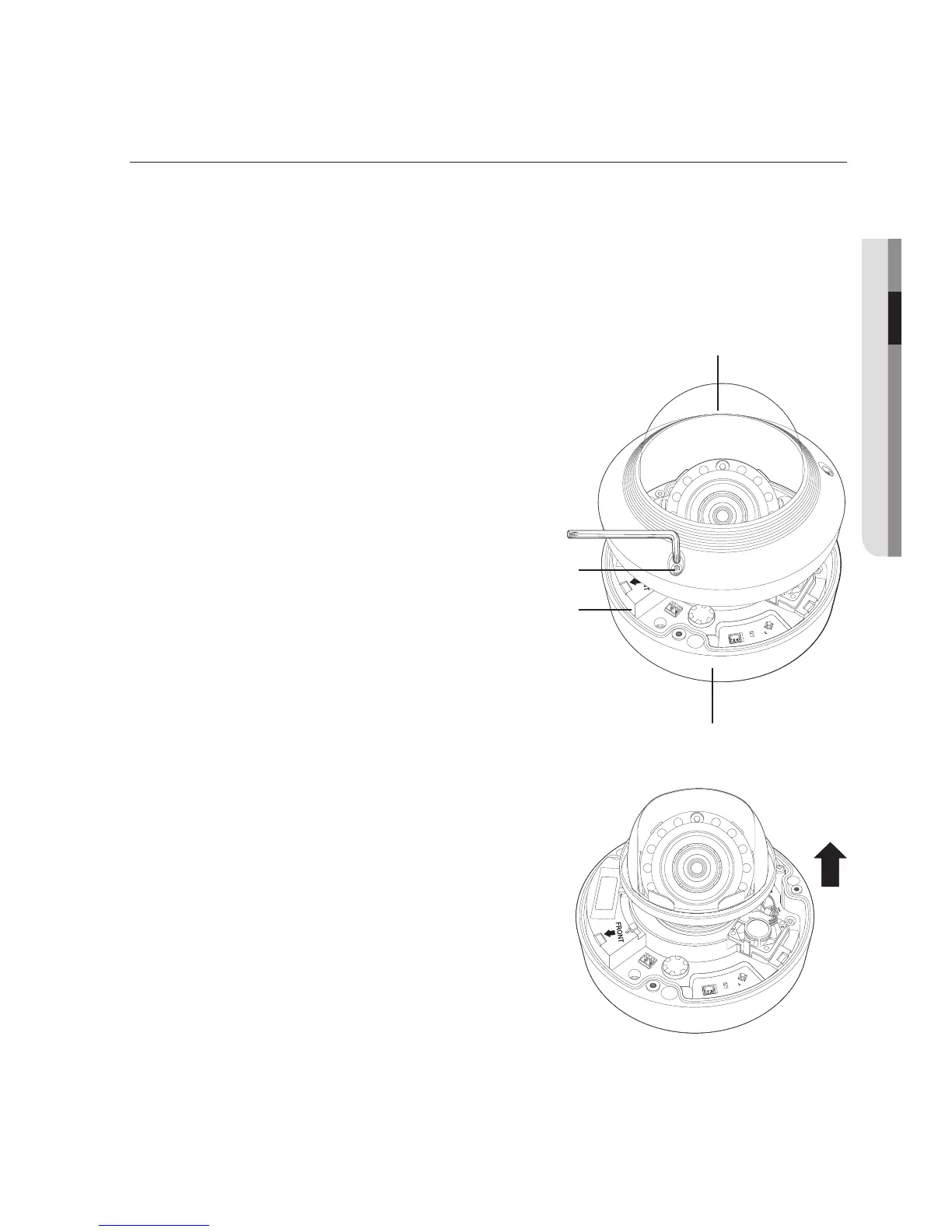

Disassembling
1. With the provided L-wrench, loosen
3 bolts on the dome cover counter
clockwise to remove the cover.
2. Lift up the inner cover to separate it.
AC 24V / DC 12V
RESET
VID EO
F
W
AF
T
N
+ -
AC 24V / DC 12V
RESET
VID EO
F
W
AF
T
N
+ -
Bolts
Dome cover
Camera Case
Camera Body
AC 24V / DC 12V
RESET
VID EO
F
W
AF
T
N
+ -

Samsung SND-6084R Specifications

General

Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Video formats supported	H.264
Video compression formats	H.264, M-JPEG
Supported graphics resolutions	320 x 180, 640 x 360, 640 x 480 (VGA), 800 x 450, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	1/2.8 \
White balance	ATW, AWC
Minimum illumination	0.0017 lx
Voice codecs	G.711, G.726
Signal-to-Noise Ratio (SNR)	50 dB
Focal length range	3 - 8.5 mm
Maximum aperture number	1.2
LED type	IR
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Built-in HDD	No
Compatible memory cards	SD, SDHC, SDXC
Wi-Fi	-
Number of users	15 user(s)
Cabling technology	10/100Base-T(X)
Ethernet interface type	Gigabit Ethernet
Power source type	PoE
Form factor	Dome
Mounting type	Ceiling/Desk
Product color	White
Housing material	Polycarbonate (PC)
Number of cameras	1
Interface	RJ-45

Weight and Dimensions

Height	107.6 mm
Weight	525 g
Diameter	132.1 mm
