Connected to a potential transformer, the PT wires provide voltage sensing and power
to the control and internal relays. Average IntelliCap 2000 control power consumption is
0.5 watt. Control power is used to wett the open and close relay contacts to operate the
capacitor bank switches or the interposing relays.
The IntelliCap 2000 control relay contacts are rated at 20 A @ 250 Vac. In addition, they
have been tested to operate three Joslyn vacuum switches (36 A). If you need 125 Vdc to
operate the capacitor switches, install interposing relays rated for 125 Vdc.
Control power is used as wetting voltge for the Open and Close relays and is not fused
in the IntelliCap 2000 control. An external fuse must be installed when necessary. Polarity
and phase-angle corrections can be adjusted with the control software.
Table 1. Catalog Number 238164-67 Var and Neutral Input Wiring.
Catalog Number 240164-J67 Var and Neutral Input Wiring
Black Station power hot (+)
Blue Close
Red Open
Red CT return (–)
Red CT hot (+)
White PT/ac—neutral
Black PT/ac—line
Wiring for Neutral Input
Orange Neutral sensor hot (+)
White Neutral sensor return (–)

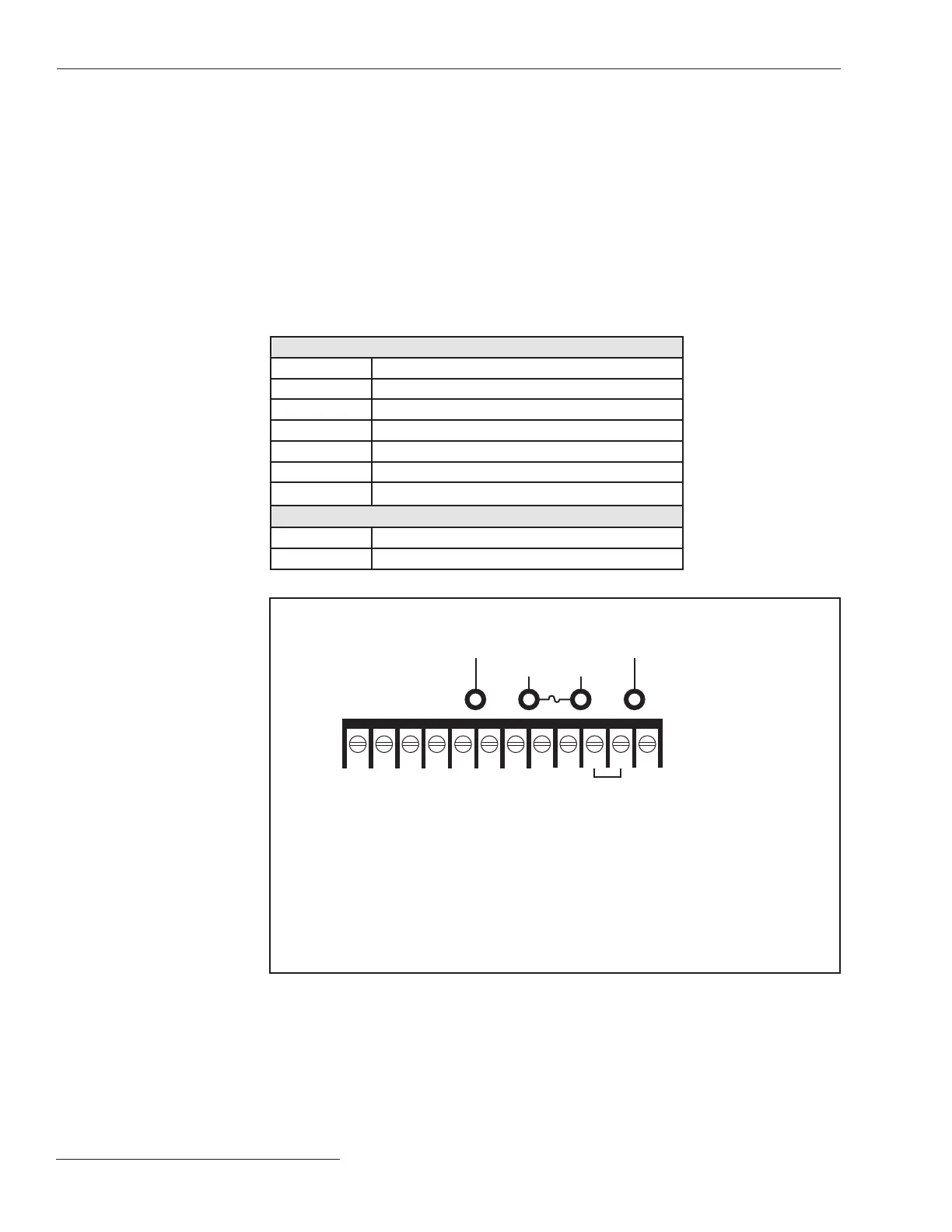

Figure 19. Terminal block wiring and test point configuration for catalog number suffix -JB1
or -JB2.
54321 76
121110 98
1
2
4
FUSE
3
INPUT TERMINAL BLOCK
Load
AC-Line
Phase Current
Sensor Hot (+)
AC-Neutral &
Sensor Return(s)(–)
TEST POINTS
Jumper
INPUT TERMINALS
1 Ac neutral (connected to terminal 12)
2 Digital input 3—user defined
3 Digital input 2—operator close
4 Digital input 1—operator open
5 CT or phase current sensor hot (+)
6 CT return
7 Neutral sensor hot (+)
8 Open
9 Close
10 Ac-line—motor operator power
11 Ac-line—control power and sensing
12 Ac-neutral and sensor return(s)(–)
Installing the Capacitor Control
18 S&C Instruction Sheet 1024-510
