- 15 -

TAPE MECHANISM (TM-C50PRMEC-SH

. . . Only Initial)

REF.NO. PART NO. DESCRIPTION

614 303 0225 ASSY,MECHA,TM-C50PRMEC-SH

TM01 614 293 6634 HEAD,R/P

TM02 645 033 3354 HEAD,ERASE

TM03 645 028 0030 ASSY,PINCH-ARM

TM04 645 025 5892 MAIN-BELT

TM05 645 029 6246 MAIN-BELT

TM06 614 293 9505 ASSY,MOTOR,PLAY MECHA MOTOR

TM07 645 028 0542 ASSY,PINCH-ARM

TM08 645 036 3726 HEAD,PLAY,AUDIO

PARTS LIST

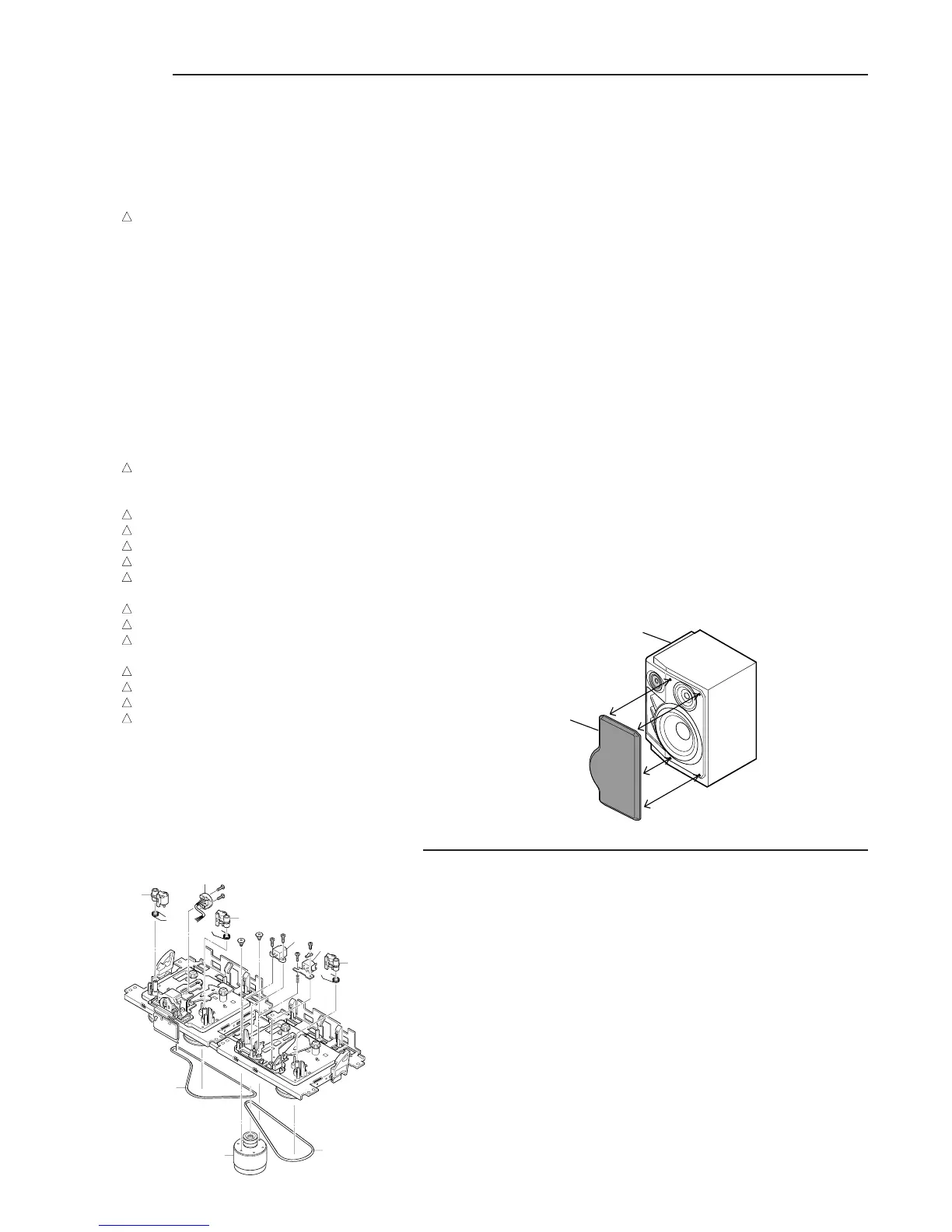

EXPLODED VIEW (TAPE MECHANISM)

REF.NO. PART NO. DESCRIPTION

Q4921 405 141 3406 TR KTA1266-GR

or 405 141 3505 TR KTA1266-Y

or 405 005 2002 TR 2SA733-P

or 405 005 1906 TR 2SA733-K

or 405 004 4502 TR 2SA608-F-NP

or 405 004 5004 TR 2SA608-G-NP

Q4940

405 138 6403 TR KTD2058Y

Q4941 405 141 3307 TR KTC3198-GR

or 405 141 3208 TR KTC3198-Y

or 405 020 7402 TR 2SC945A-P

or 405 020 7204 TR 2SC945A-K

or 405 012 2002 TR 2SC1815-GR

Q4960 405 141 3307 TR KTC3198-GR

or 405 141 3208 TR KTC3198-Y

or 405 020 7402 TR 2SC945A-P

or 405 020 7204 TR 2SC945A-K

or 405 012 2002 TR 2SC1815-GR

Q4961 405 141 3307 TR KTC3198-GR

or 405 141 3208 TR KTC3198-Y

or 405 020 7402 TR 2SC945A-P

or 405 020 7204 TR 2SC945A-K

or 405 012 2002 TR 2SC1815-GR

Q4962

405 138 6403 TR KTD2058Y

R4437 614 241 3449 RESISTOR 0.22 K- 5W

R4438 614 241 3449 RESISTOR 0.22 K- 5W

R4706

402 081 0403 RESISTOR 4.7 J- 2W

R4707

402 081 0502 RESISTOR 330 J- 3W

R4716

402 081 1103 FUSIBLE RES 100 JA 1/4W

R4717

402 081 1103 FUSIBLE RES 100 JA 1/4W

R4718

402 081 0403 RESISTOR 4.7 J- 2W

R4750 614 241 3449 RESISTOR 0.22 K- 5W

R4806

402 081 0403 RESISTOR 4.7 J- 2W

R4807

402 081 0502 RESISTOR 330 J- 3W

R4818

402 081 0403 RESISTOR 4.7 J- 2W

R4850 614 241 3449 RESISTOR 0.22 K- 5W

R4920

402 081 1103 FUSIBLE RES 100 JA 1/4W

R4940

402 081 8904 RESISTOR 1 J- 1/2W

R4963

402 081 0601 RESISTOR 1K J- 2W

R4964

402 081 8904 RESISTOR 1 J- 1/2W

RY441 614 224 4531 RELAY,SPEAKER

or 645 035 6582 RELAY,SPEAKER

S4900 614 215 9828 SWITCH,TACT,RESET

REF.NO. PART NO. DESCRIPTION

T2301 645 038 3687 FILTER,LP 75KHZ

U2101 645 033 5327 TUNER,FM

X2301 614 246 0870 RESONATOR

X2451 645 023 4965 OSC,CRYSTAL 7.2MHZ

X2501 645 035 8326 OSC,CRYSTAL 4.332MHZ

XF221 645 010 0079 CERAMIC FILTER 10.70MHZ

or 614 240 2917 FILTER,CERAM

or 614 254 3214 FILTER

XF222 645 010 0079 CERAMIC FILTER 10.70MHZ

or 614 240 2917 FILTER,CERAM

or 614 254 3214 FILTER

XF231 614 246 0849 FILTER

XF233 645 018 8824 DISCR,CERAMIC

or 645 018 8718 DISCR,CERAMIC

OPTICAL DIGITAL OUT P.W.BOARD ASSY

REF.NO. PART NO. DESCRIPTION

81 614 310 6852 ASSY,PWB,DIGITAL OUT (Only Initial)

CN168 645 005 7373 PLUG,3P

CN169 614 240 5703 OPTO CONNECTOR

SPEAKERS (SX-S800L,R/XE)

REF.NO. PART NO. DESCRIPTION

1 614 309 6511 ASSY,GRILLE(R)

614 309 6528 ASSY,GRILLE(L)

2 614 312 3248 ASSY,BOX,SPEAKER(R)

614 312 3255 ASSY,BOX,SPEAKER(L)

TM01

TM02

TM03

TM07

TM08

TM03

TM05

TM06

TM04
