Sanyo DC-S800 User Manual

- 17 -
PARTS LIST

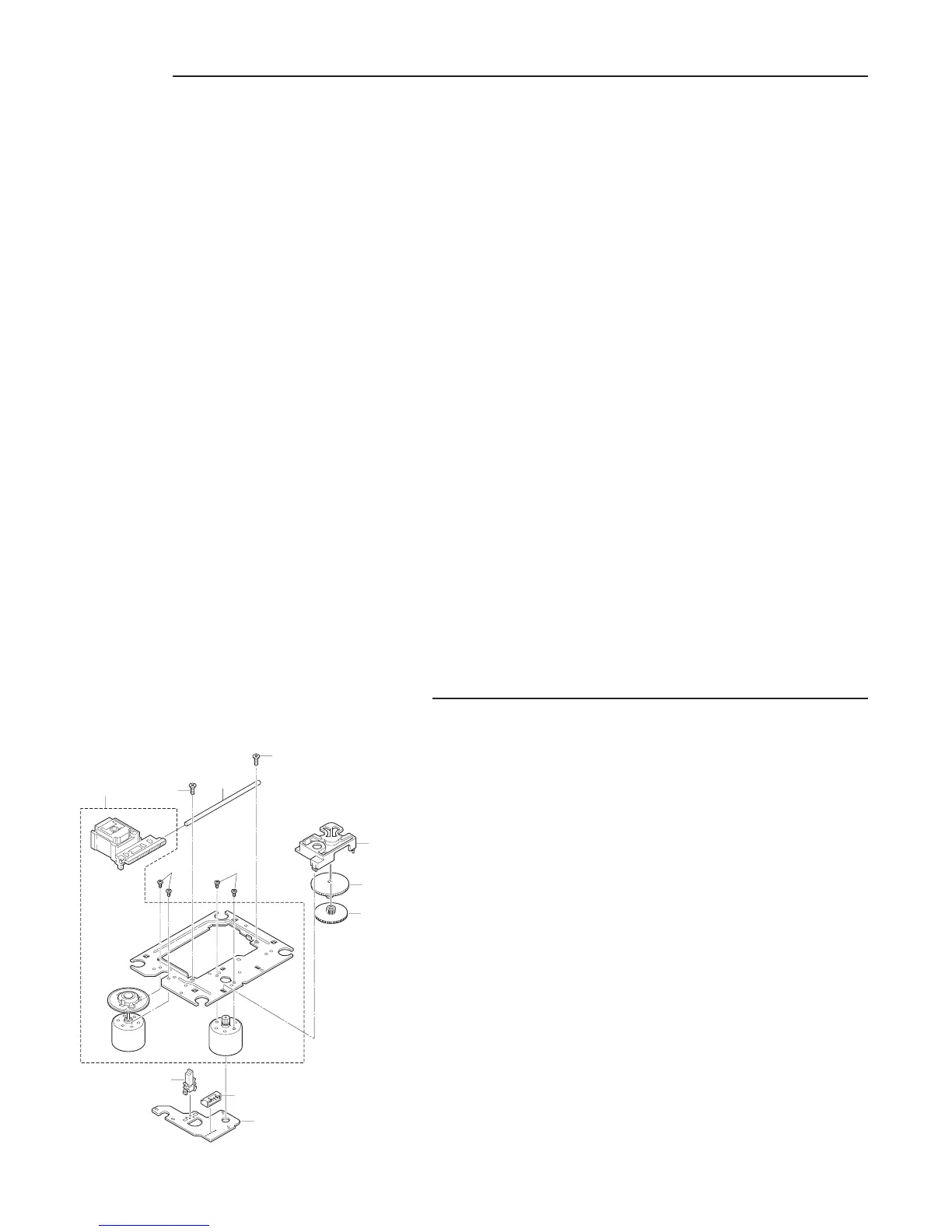

EXPLODED VIEW (CD BASE MECHANISM)
CD BASE MECHANISM (CDDA11-SASH...Only Initial)
REF.NO. PART NO. DESCRIPTION
PM01 620 021 8436 PLUG 6P
PM02 620 233 0853 ASSY MOTOR
PM03 620 236 3776 COVER,GEAR
PM04 620 230 8753 GEAR, MIDDLE
PM05 620 230 8760 GEAR,DRIVE
PM06 620 231 0596 SHAFT SLIDE
PM07 620 233 0860 SWITCH LEAF
PM08 411 104 8401 SCR PAN PCS 2X3
PM09 411 027 5402 SCR S-TPG FLT 2.6X6
PM10 620 236 0836 PWB,MOTOR
PM03
PM04
PM05
PM09
PM09
PM02
PM08
PM01
PM10
PM07
PM06
PM08
CD MECHANISM
(PM-CDS800TP-SH ... Only Initial)
REF.NO. PART NO. DESCRIPTION
CM01 645 033 6072 ASSY,CHASSIS,CHASSIS ASSY
CM02 645 033 7512 DRAWER 2
CM03 645 033 5976 ASSY,HOLDER L,
DRAWER HOLDER L ASS
CM04 645 033 6898 ASSY,HOLDER R3B,
DRAWER HOLDER R ASSY
CM05 645 033 6041 ASSY,PC BOARD A
CM06 645 033 6065 ASSY,PC BOARD B
CM07 645 033 6058 ASSY,PC BOARD C
CM08 645 033 5945 LEAD WIRE
CM09 645 033 5952 LEAD WIRE
CM10 645 033 6713 SPACER SW
CM11 645 033 6027 ASSY,GEAR DRIVE,
SINCHRO GEAR ASSY
CM12 645 041 2417 ASSY,CRG 101,CARRIAGE NO.1
CM13 645 041 2424 ASSY,CRG 201
CM14 645 041 2431 ASSY,CRG 301
CM15 645 033 5877 INSULATER
CM16 645 033 5884 INSULATER
CM17 645 033 5907 CUSHION
CM18 645 033 6324 BEVEL GEAR 4
CM19 645 033 5990 ASSY,GEAR STAR,
CARRIAGE LIFT GEAR
CM23 645 033 6089 COVER 2
CM24 645 033 6539 SHAFT
CM25 645 033 6461 SLIDER 4
CM26 645 033 6201 GEAR SPLINE
CM27 645 033 6232 BEVEL GEAR 1
CM28 645 033 6270 GEAR IDLER 1
CM29 645 033 6102 PLATE SPRING
CM30 645 033 6287 BEVEL GEAR 3
CM31 645 033 6225 PULLEY C
CM32 645 041 2448 ASSY,CLAMPER SA,CLAMPER
(SANYO)
REF.NO. PART NO. DESCRIPTION
CM33 645 033 6140 ARM SLIDER R
CM34 645 033 6157 ARM SLIDER L
CM35 645 033 6430 SLIDER 1
CM36 645 033 5969 ASSY,SLIDER 2,
FWD/RVS SLIDE ASSY
CM37 645 033 6980 ARM STOPPER A2
CM38 645 033 6416 ARM STOPPER B
CM39 645 033 6263 GEAR IDLER A2
CM40 645 033 6218 GEAR IDLER C
CM41 645 033 6447 LEVER
CM43 645 033 6454 LIFTER,CARRIGE LIFT UP
CM44 645 033 5778 BELT
CM45 645 033 5785 BELT
CM46 645 033 7048 SPRING
CM47 645 033 6393 PULLEY A
CM48 645 033 6003 ASSY,MOTOR CRG S,
CARRIGE MOTOR ASSY
CM49 645 033 6010 ASSY,MOTOR DRW S,
DRAWER MOTOR ASSY
CM50 645 033 5723 SPRING
CM51 614 303 7545 SPRING
CM52 645 033 5747 SPRING
CM60 645 033 5648 WASHER
CM61 645 033 5594 SCREW
CM62 645 033 7031 SCREW
