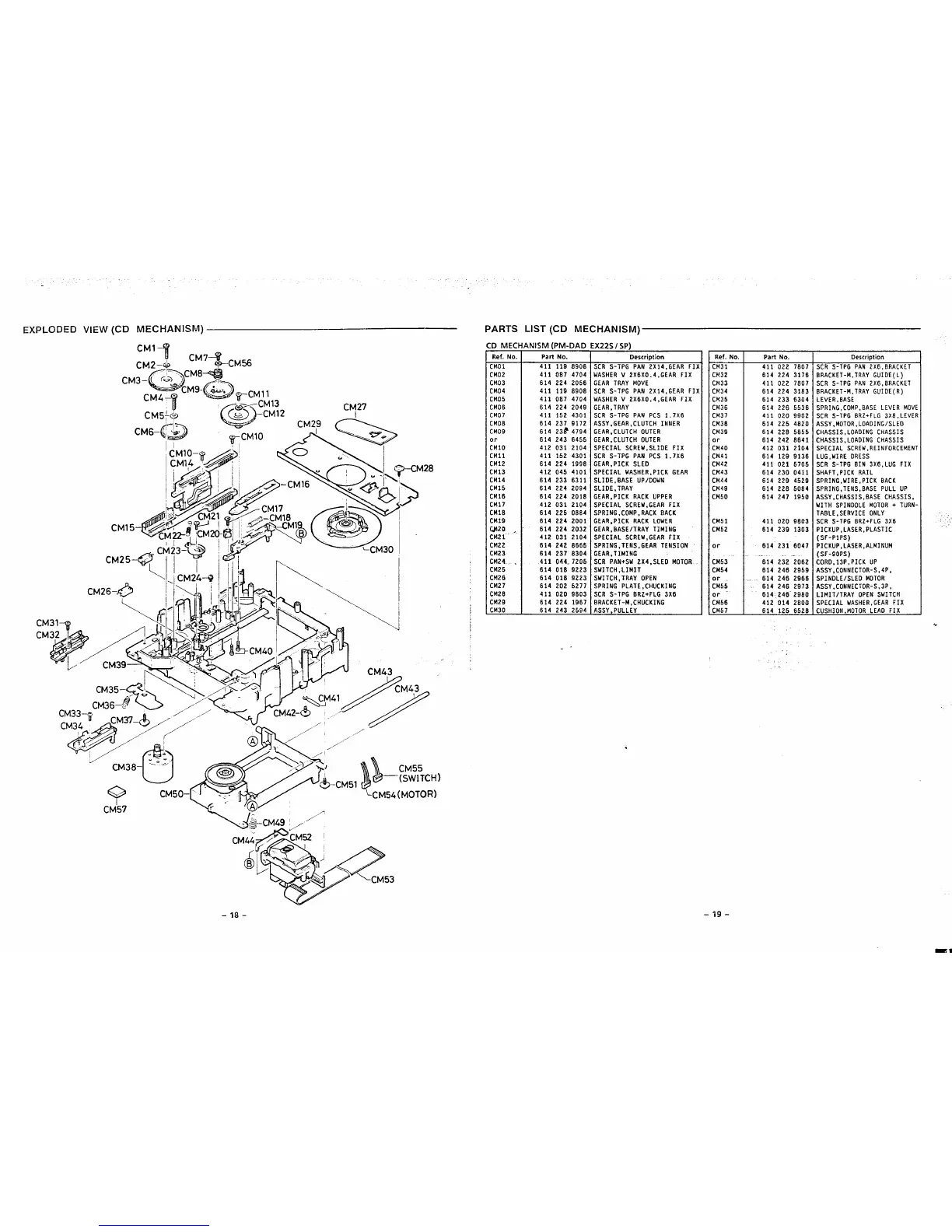

EXPLODED VIEW (CD
MECHANISM)
I
PARTS LIST (CD MECHANISM)
:D MEC
Ref. No.
CMO1
CM02
CM03
CM04
CM05
CM06
CM07
CM08
CM09
or
CM1O
CM1l
CM12
CM13
CM14
CM15
CM16
CM17
CM18
CM19
cp20
CM21” - ‘
CM22
CM23
CM24.. .
CM25
CM26
CM27
CM28
CM29
CM30
iNISM (PM-DAD
Pan No.
411 119 8908
411 087 4704
614 224 2056
411 119 6908
411 087 4704
614 224 2049
411 152 4301
614 237 9172
614 23t 4194
614 243 6455
412 031 2104
411 152 4301
614 224 1998
412 045 4101
614 233 6311
614 224 2094
614 224 2018
412 031 2104
614 225 0684
614 224 2001
614 224 2032
412 031 2104
614 242 8665
614 237 8304
411 044.7205
614 016 9223
614 016 9223
614 202 5277
411 020 9603
614 224 1967
614 243 2594
:X22S/ SP)
Description
SCR S-TPG PAN 2X14, GEAR FIX
WASHER V 2X6 X0.4, GEAR FIX
GEAR TRAY MOVE
SCR S-TPG PAN 2X14, GEAR FII
WASHER V 2X6 X0.4, GEAR FIX
GEAR, TRAY
SCR S-TPG PAN PCS 1.7x6
ASSY, GEAR, CLUTCH INNER
GEAR, CLUTCH OUTER
GEAR, CLUTCH OUTER
SPECIAL SC REW, SLIOE FIX
SCR S-TPG PAN PCS 1.7x6
GEAR, PICK SLED
SPECIAL WASHER, PICK GEAR
SLIOE , BASE UP/OOWN
SLIOE, TRAY
GEAR, PICK RACK UPPER
SPECIAL SC REW, GEAR FIX
SPRING, COMP, RACK BACK
GEAR, PICK RACK LOWER
GEAR, BASE/TRAY TIMING
SPECIAL SCREW, GEAR FIX
SPRING, TENS, GEAR TENSION
GEAR, TIMING
SCR PAN+SW 2X4 ,SLEO MOTOR
SWITCH, LIMIT
SWITCH, TRAY OPEN
SPRING PLATE, CHUCKING
SCR S-TPG BRZ+FLG 3x6
BRACKET-M, CHUCKING
ASSY, PULLEY
Ref. No.
CM31
CM32
CM33
CM34
CM35
CM36
CM37
CM38
CM39
or
CM40
CM41
CM42
CM43
CM44
CM49
CM50
CM51
CM52
or
CM53
CM54
%55
or
CM56
CM57
Part No.
Description
411 022 7B07 ; SCR S-TPG PAN 2X6,6 RACXET
614 224 3176
BRACKET-M, TRAY GUIOE(L)
411 022 7607
SCR S-TPG PAN ZX6,6RACKET
614 224 3183
BRACKET-M, TRAY GUIDE(R)
614 233 6304
LEvER, BASE
614 226 5536
SPRING, COMP, BASE LEVER MOVE
411 020 9902
SCR S-TPG BRZ+FLG 3x8, LEvEF
614 225 4B20
ASSY, MOTOR , LOAOINGISLEO
614 228 5855
CHASSIS, LOADING CHASSIS
614 242 6641
CHASSIS, LOAOING CHASSIS
412 031 2i04
SPECIAL SCREW, REINFORCEMENT
614 129 9136
LUG. WIRE DRESS
411 021 5705
SC R” S-TPG BIN 3x6, LuG FIX
614 230 0411
SHAFT, PICK RAIL
614 229 4529
SPRING, WI RE, PICK BACK
614 228 5064
SPRING, TENS,6ASE PULL UP
614 247 1950
ASSY, CHASSIS, BASE CHASSIS,
WITH SPINOOLE MOTOR + TURN-
TABLE, SERVICE ONLY
411 020 98o3
SCR S-TPG BRZ+FLG 3x6
614 239 1303
PICXUP, LASER, PLASTIC
,,SF-PIPS)
614 231 6047 PICKUP .LASER. ALMINUM
T
614 246 2959 ASSY, CONNECTOR-S,4P,
614 246 2966 SPINOLE/SLEO MOTOR
614 246 2973 ASSY, CONNECTOR-S,3P,
614246- 29B0 LIMIT/TRAY OPEN SWITCH
412 014 2800 SPECIAL WASHER, GEAR FIX
614 125 6526 CUSHION, MOTOR LEAO FIX
.
-.
-18-
–19-
