MECHANISM REMOVAL (CD)
4)
(1)
1)
2)

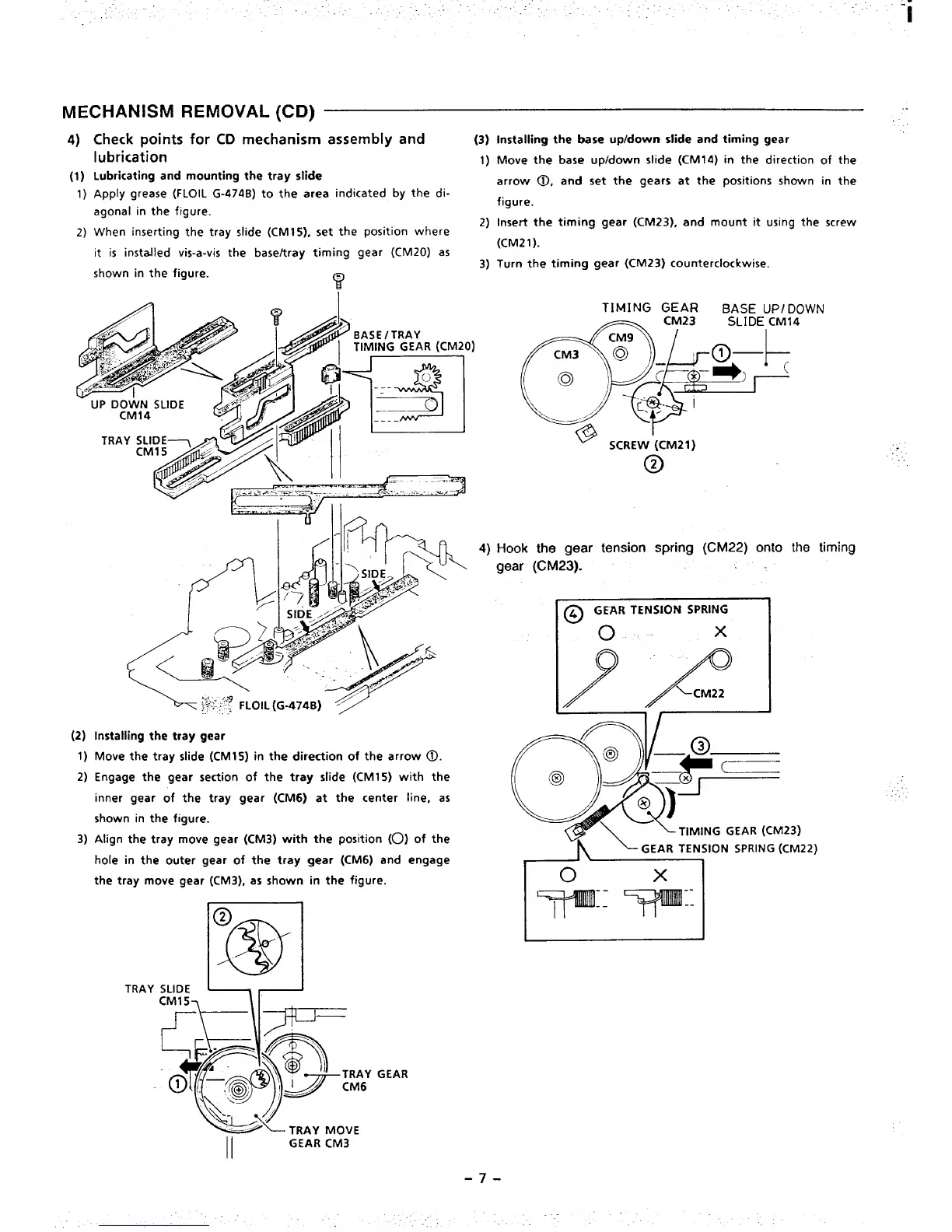

Check points for CD mechanism assembly and
(3)
lubrication
1)
Lubricating and mounting the tray slide
Apply grease (FLOIL G-474B) to the area indicated by the di-
agonal in the figure.
2)
When inserting the tray slide (CM15), set the position where
it is installed vis-a-vis the base/tray timing gear (CM20) as
3)
shown in the figure.
9
(2)
1)
2)
3)
>——.. .. .
% y:,:-? FLOIL(G-474B) ~<
Installing the tray gear
Move the tray slide
(CM 15) in the direction of the arrow o.
Engage the gear section of the tray slide (CM15) with the
inner gear of the tray gear (cM6) at the center line, as
shown in the figure.
Align the tray move gear (CM3) with the position (0) of the
hole in the outer gear of the tray gear (CM6) and engage
the
tray move gear (CM3), as shown in the figure.
TRAY
GEAR
4)
Installing the base up/down slide and timing gear
Move the base up/down slide (CM14) in the direction of the
arrow 0, and set the gears at the positions shown in the
figure.
Insert the timing gear (CM23), and mount it using the screw
(CM21).
Turn the timing gear (CM23) counterclockwise.
TIMING GEAR
BASE UP/ DOWN
p@gg:$4
v SCREW (CM21)
Hook the gear tension spring (CM22) onto the timing
gear (CM23).
.
@ GEARTENSION ,PRING
o
x
—
‘~ s GEAR TENSION SPRING (CM22)
o
x
.-
--
I
--
--
II
GEAR CM3
,..
