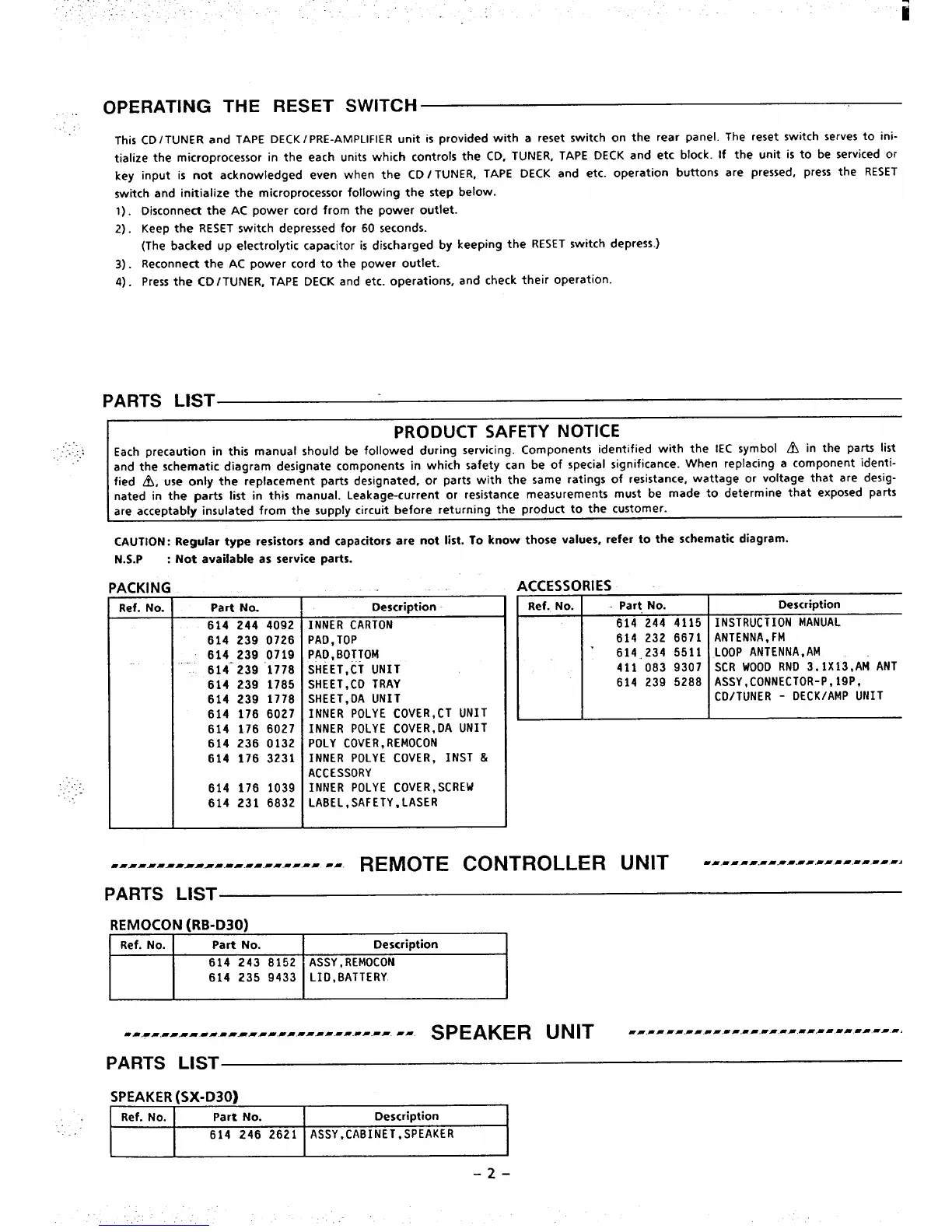

. OPERATING THE RESET SWITCH
This CD I TUNER and TAPE DECK/ PRE-AMPLIFIER unit is provided with a reset switch on the rear panel. The reset switch serves to ini-
tialize the microprocessor in the each units which controls the CD, TUNER, TAPE DECK and etc block. If the unit is to be serviced or
key input is not acknowledged even when the CD/ TUNER, TAPE DECK and etc. operation
buttons are pressed, press the RESET
switch and initialize the microprocessor following the step below.
1). Disconnect the AC power cord from the power outlet.
2). Keep the RESET switch depressed for 60 seconds.
(The backed up electrolytic capacitor is discharged by keeping the RESET switch depress.)
3). Reconnect the AC power cord to the power outlet.
4). Press the CD/TUNER, TAPE DECK and etc. operations, and check their operation.
PARTS LIST
PRODUCT SAFETY NOTICE
.-.’.-.:.”:
Each precaution in this manual should be followed during servicing. Components identified with the IEC symbol ~ in the parts list
and the schematic diagram designate components in which safety can be of special significance. When replacing a component identi-
fied ~, use only the replacement parts designated, or parts with the same ratings of resistance,
wattage or voltage that are desig-
nated in the parts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts
are acceptably insulated from the supply circuit before returning the product to the customer.
CAUTION:
Regular type resistors and capacitors are not list. To know those values, refer to the schematic diagram.
N.S.P :
Not available as service parts.
....
. ... .
PACKING
[
Ref. No. Part No.
614 244 4092
614 239 0726
614 239 0719
.
614-239 “1778
614 239 1765
614 239 1778
614 176 6027
614 176 6027
614 236 0132
614 176 3231
614 176 1039
614 231 6832
Description
INNER CARTON
PAO, TOP
PAD, BOTTOM
SHEET, CT UNIT
SHEET,CO TRAY
SHEET,OA UNIT
INNER POLYE COVER,CT UNIT
INNER POLYE COVER,OA UNIT
POLY COVER,REMOCON
INNER POLYE COVER,
INST &
ACCESSORY
INNER POLYE COVER,SCREW
LABEL,SAFETY,LASER
ACCESSORIES
Ref. No. - Part No.
614”244 4115
614 232 6671
.
614,234 5511
411 0B3 9307
614 239 5288
Description
INSTRUCTION MANUAL
ANTENNA,FM
LOOPANTENNA,AM
SCR WOODRND 3.lX13,Ai ANT
ASSY,CONNECTOR-P,19P,
CD/TUNER -
DECK/AMPUNIT
PARTS LIST
REMOCON(RB-D30)
Ref. No.
Part No.
Description
614 243 8152
ASSY,REMOCON
614 235 9433
LID,BATTERY
PARTS LIST
SPEAKER(SX-D30)
Ref. No. Part No.
Description
614 246 2621
ASSY,CABINET,SPEAKER
I
I I
I
-2-
