Installation
Connecting to a Computer
Cables used for connection
• VGA cables (Mini D-sub 15 pin) *
• Audio cables
• HDMI-DVI cable
(*One cable is supplied; other cables are not supplied with the projector.)
Note:
• Input sound to the COMPUTER1 /COMPUTER 2 AUDIO IN
terminal when using the COMPUTER IN 2 / MONITOR OUT and
the COMPUTER IN 1/ COMPONENT IN terminal as input.
• When the AUDIO OUT is plugged-in, the projector's built-in
speaker is not available.
• When the cable is of the longer variety, it is advisable to use the
COMPUTER IN 1 / COMPONENT IN and not the COMPUTER
IN 2.
• Analog RGB and component signals cannot be output from
the COMPUTER IN 2/MONITOR OUT terminal when using the
COMPUTER IN 2/MONITOR OUT terminal as output.
• When DVI signal is connected to HDMI terminal with HDMI-DVI
cable, connect the sound signal to COMPUTER 2 AUDIO IN and
set up Sound of "HDMI setup" to "Computer2". (p.50)
Unplug the power cords of both the
projector and external equipment
from the AC outlet before connecting
cables.

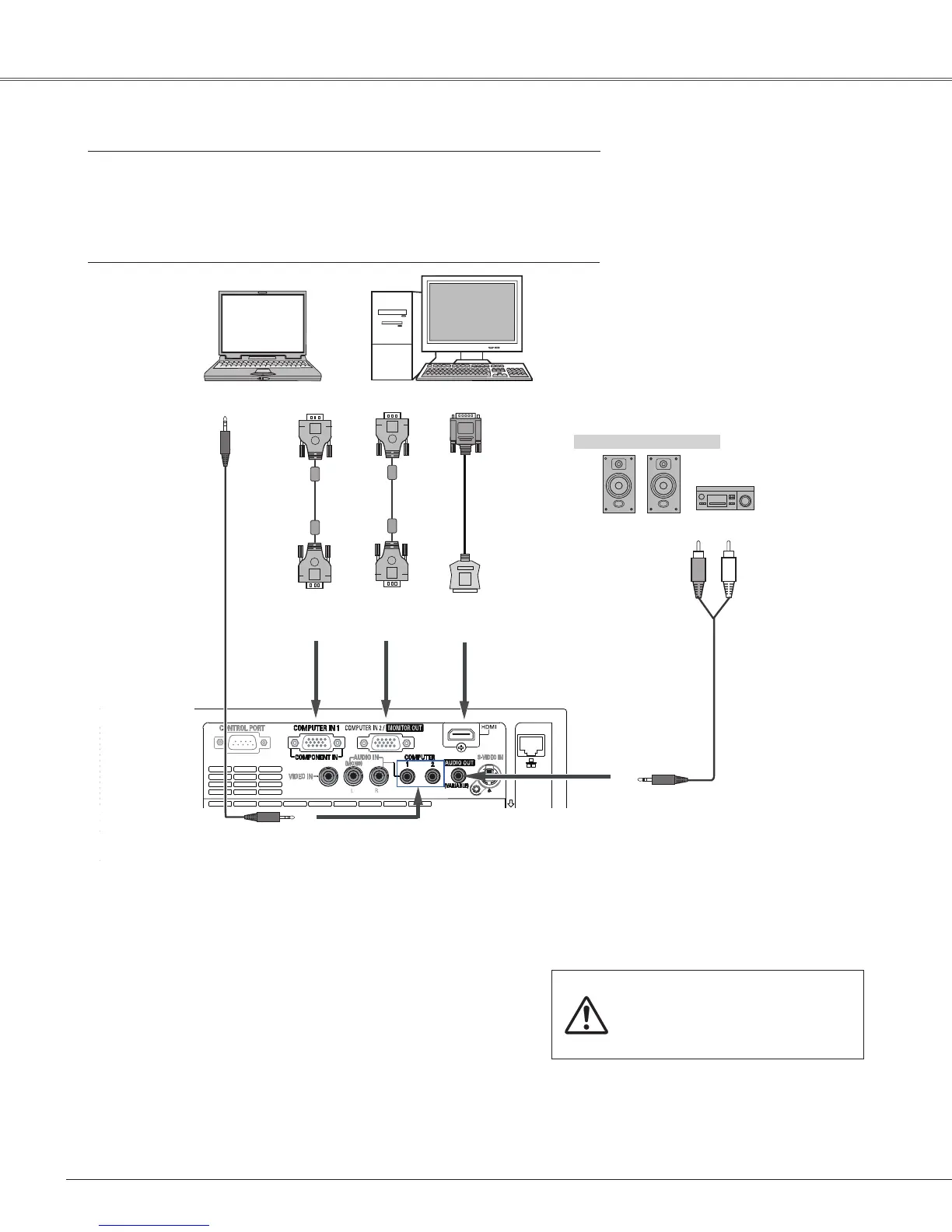

External Audio Equipment
Audio cable
(stereo)
Audio cable
(stereo)
Monitor Output
/Monitor Input
Audio Output
COMPUTER 1 /
COMPUTER 2
AUDIO IN
AUDIO OUT
(stereo)
Audio Input
VGA
cable
COMPUTER IN 2
/ MONITOR OUT
COMPUTER IN 1 /
COMPONENT IN
VGA
cable
Monitor Output
DVI output
HDMI-DVI
cable
HDMI
