9
Part Names and Functions

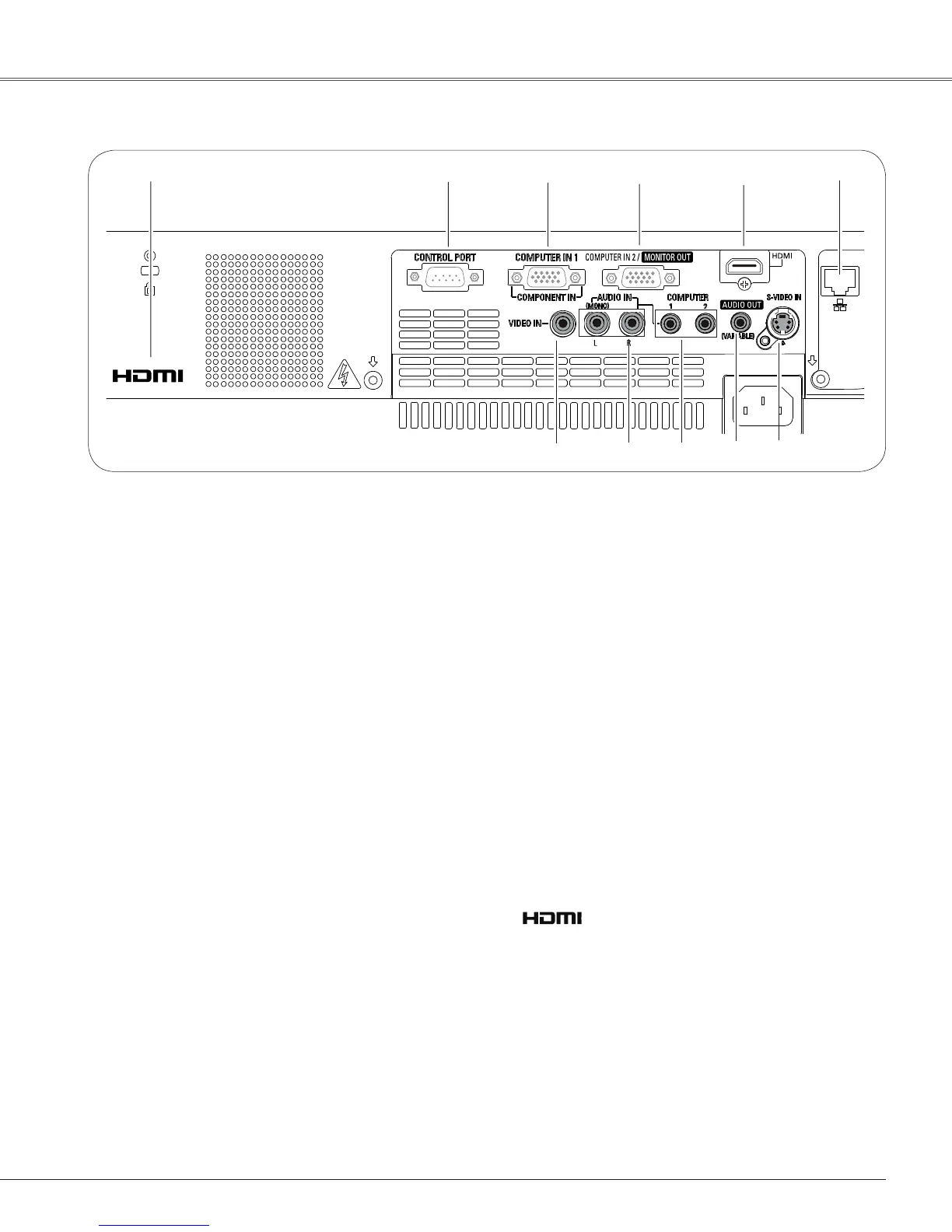

Rear Terminal
⑥ S-VIDEO IN
Connect the S-VIDEO output signal from video
equipment to this jack (p.15).
⑨ AUDIO IN
Connect the audio output signal from video
equipment connected to ⑥ or ⑩ to this jack.
For a mono audio signal (a single audio jack),
connect it to the L (MONO) jack (p.15).
⑧ COMPUTER 1 / COMPUTER 2 AUDIO IN
Connect the audio output (stereo) from a
computer or video equipment connected to ②
or ③ to this jack. (pp14, 16)
⑩ VIDEO IN
Connect the composite video output signal to
this jack (p.15).
② COMPUTER IN 1 / COMPONENT IN
Connect output signal from a computer, RGB scart
21-pin video output or component video output to
this terminal (pp.14,16).
⑦ AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this jack
(pp.14-16).
This terminal outputs sound from AUDIO IN
terminal (⑧ or ⑨).
⑤ LAN Connection Terminal
Connect the LAN cable (refer to the owner’s manual
of "Network Set-up and Operation").
② ③① ⑤
⑥
⑩
⑦⑨
① CONTROL PORT
When the projector is controlled by a computer,
connect to this jack with serial control cable.
③ COMPUTER IN 2 / MONITOR OUT
– Connect computer output to this terminal (p.14).
– This terminal can be used to output the incoming
analog RGB signal from COMPUTER IN 1/
COMPONENT IN terminal to the other monitor
(p.14).
⑧
④ HDMI
Connect the HDMI signal (including sound signal)
from video equipment or the DVI signal from
computer to this terminal (pp.14, 16).
④
*
is registered trademarks of HDMI
Licensing, LLC.
*
To Next Page
