SM830035
– 101 –
4
4.
Service procedures
4.
Service procedures
(4)

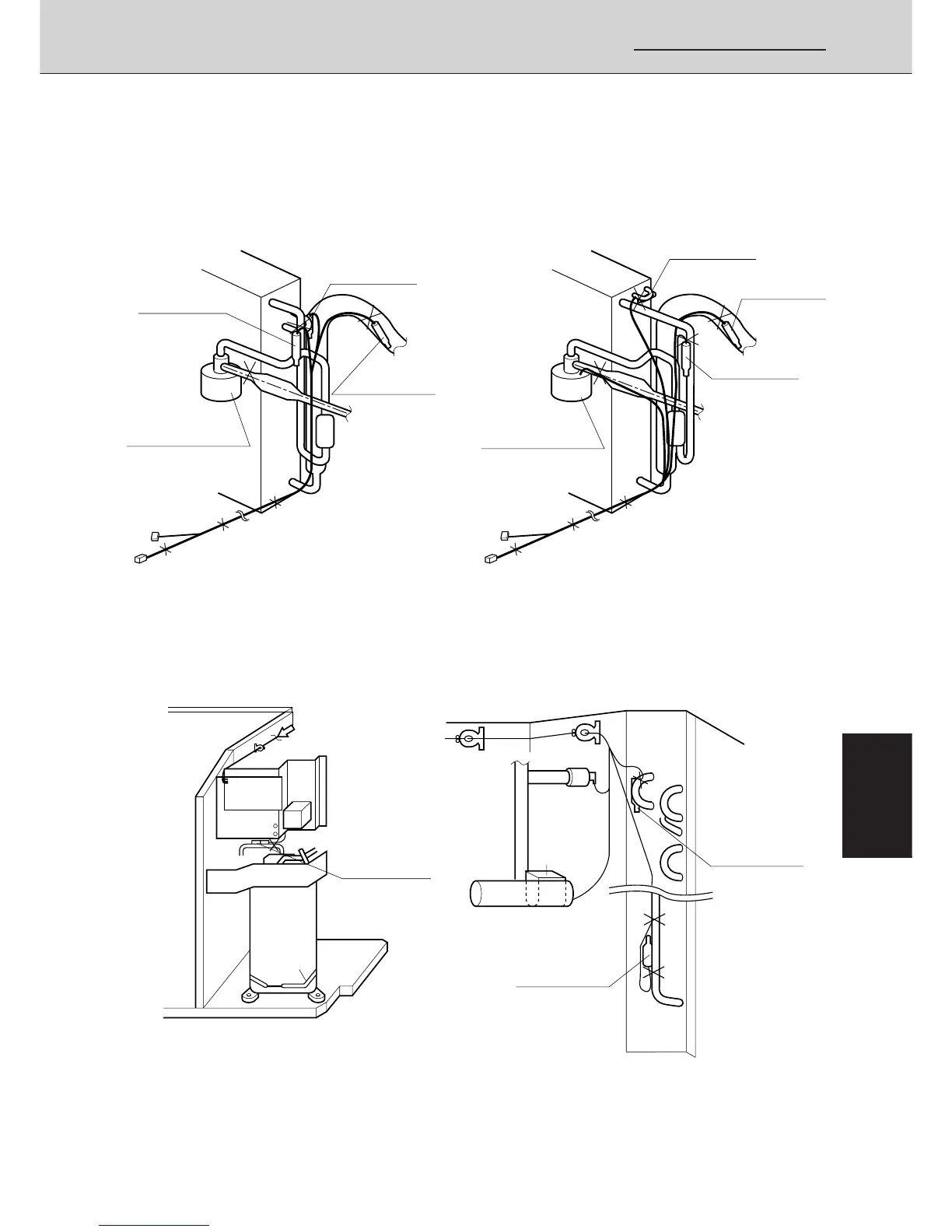

Sensor and Solenoid Layout Diagram
0583_C_S
TH6 (C1), (BLK)
20S
TH7 (C2), (RED)
TH6, 7, 8
20S, 63PH
CM
CH
TH8 (GRN)
( Discharge gas)
0582_C_S
Outdoor Unit
• SPW-C253GH5, SPW-C253GH8
Indoor Unit
• SPW-U253GH56
• SPW-U363GH56
• SPW-U483GH56
TH3 (E2), (BLK)
TH2 (E1), (RED)
Electronic refrigerant
control valve (ERCV)
TH4 (E3), (BRN)
0478_U_I
TH3 (E2), (BLK)
TH2 (E1), (RED)
Electronic refrigerant
control valve (ERCV)
TH4 (E3), (BRN)
0479_U_I
