– 25 –
SM830035
1
1. Specifications
1
1. Specifications
1-6 Operating Range
Fig. 6
Temperature Indoor air intake temp. Outdoor air intake temp.
Cooling
Maximum 35°C DB / 25°C WB 45°C DB
Minimum 17°C DB / 14°C WB –5°C DB
Heating
Maximum 27°C DB / — WB 24°C DB / 18°C WB
Minimum 16°C DB / — WB –15°C DB / — WB

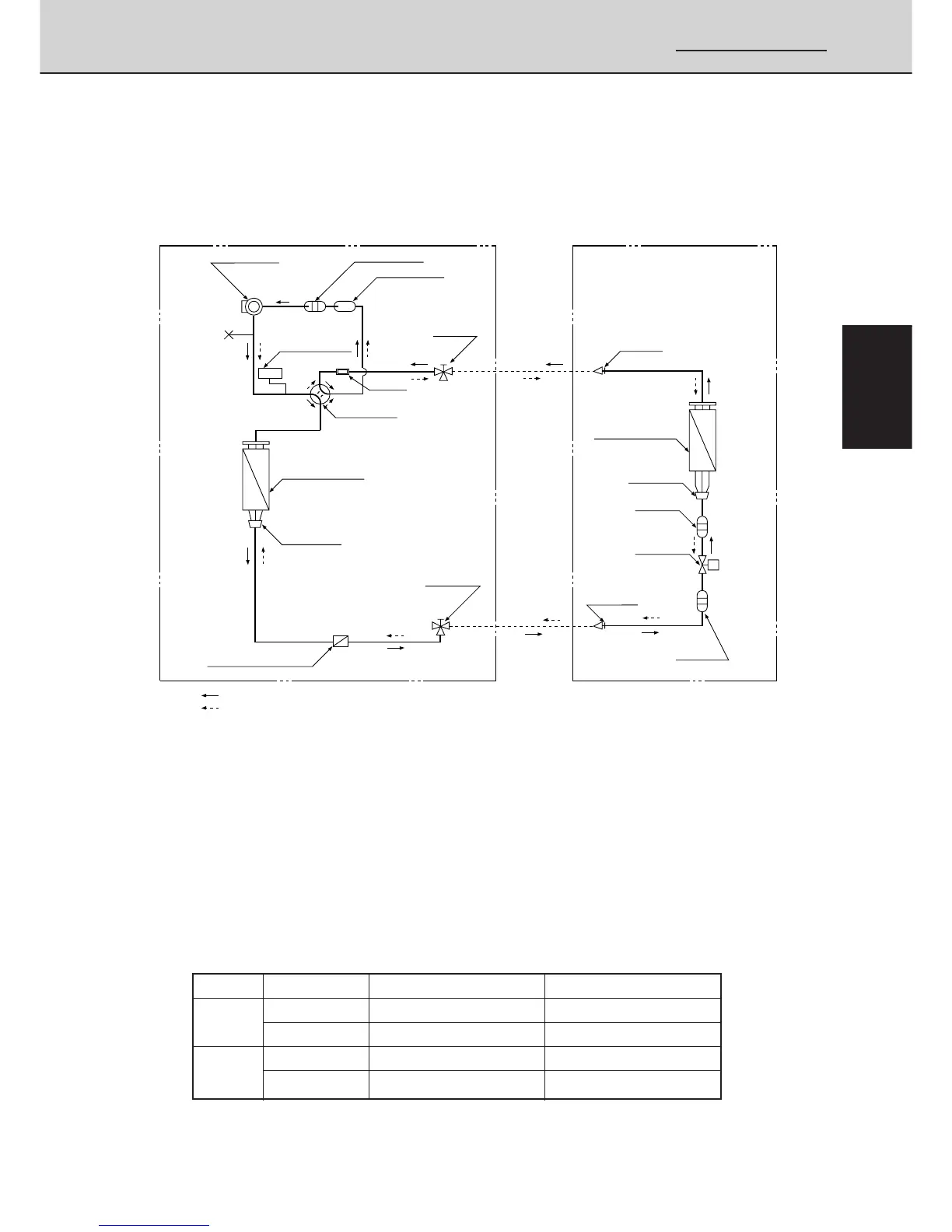

Outdoor Unit : SPW-C363GH8 Indoor Unit : SPW-U363GH56
SPW-C483GH8
SPW-U483GH56
HP
High pressure
switch
Compressor
*Accumulator
*Hot equipped in “SPW-C483GH8”
Accumulator
EC
P
Heat exchanger
4-way valve
EC
P
Heat exchanger
Distributor
Electronic
ref.control
valve
Strainer
Liquid line
nipple
Liquid line
service
valve
O.D.
ø9.52mm
(3/8")
O.D.
ø19.05mm
(3/4")
Gas line
nipple
Gas line
service
valve
Distributor
Sub-heat exchanger
Cooling Cycle
Heating Cycle
Strainer
M
Muffler
0418_C_S
To Next Page
