– 24 –
SM830035
1. Specifications
1
1-5

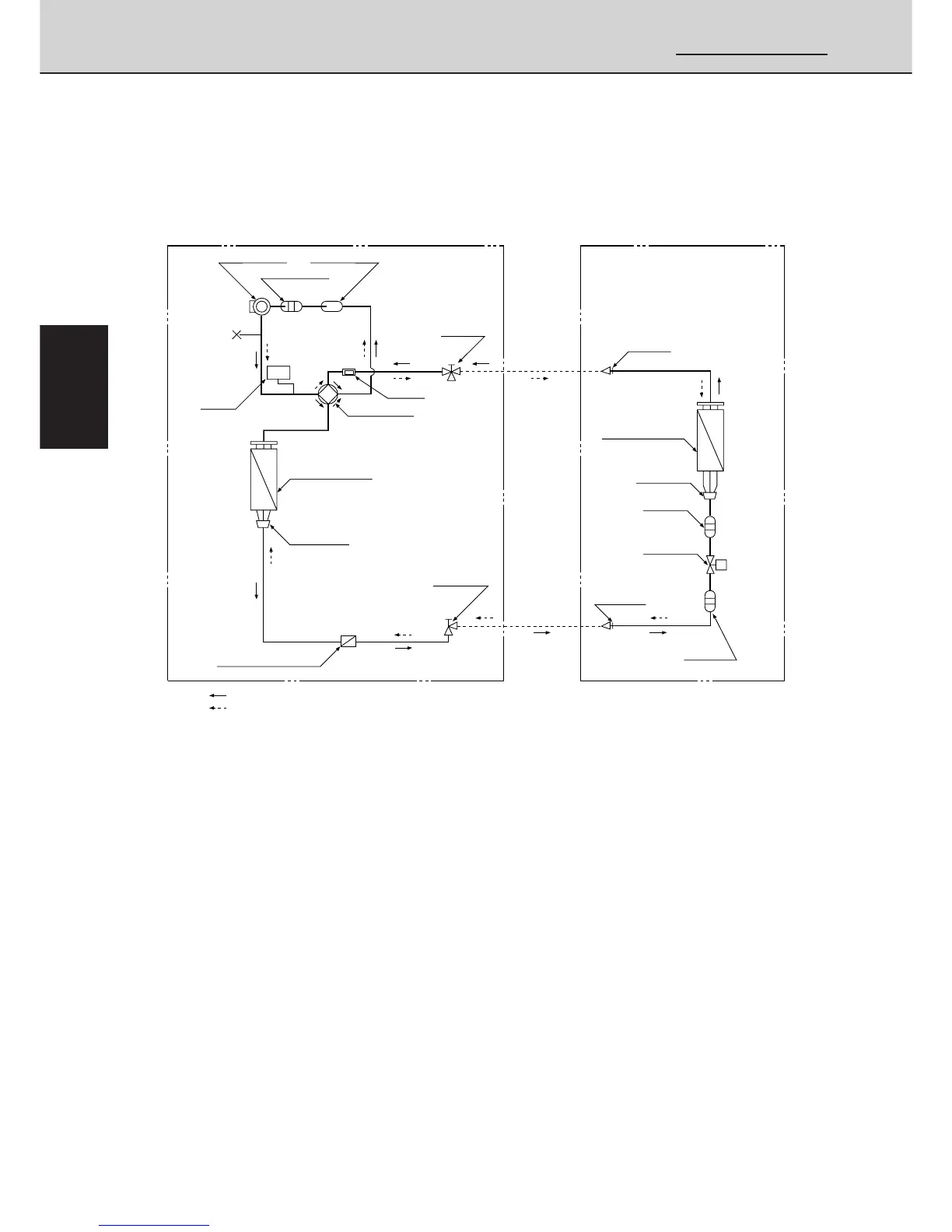

Refrigerant Flow Diagram
Outdoor Unit
:
SPW-C253GH5
Indoor Unit
:
SPW-U253GH56
SPW-C253GH8
Fig. 4
HP
High
pressure
switch
Compressor
Accumulator
Accumulator
EC
P
Heat exchanger
4-way valve
EC
P
Heat exchanger
Distributor
Electronic
ref.control
valve
Strainer
Liquid line
nipple
Liquid line
service
valve
O.D.
ø6.35mm
(1/4")
O.D.
ø15.88mm
(5/8")
Gas line
nipple
Gas line
service
valve
Distributor
Sub-heat exchanger
Cooling Cycle
Heating Cycle
Strainer
M
0417_C_S
Muffler
23
25
Table of Contents
Default Chapter
1
Service Manual
1
Please Read before Starting
2
Special Precautions
2
Table of Contents
3
1 Specifications
7
Unit Specifications
8
Major Component Specifications
12
(A) Indoor Unit
12
(B) Outdoor Unit
15
Other Component Specifications
18
Dimensional Data
20
(A) Indoor Unit
20
(B) Outdoor Unit
22
Refrigerant Flow Diagram
24
Operating Range
25
2 Processes and Functions
27
Room Temperature Control
28
(A) Cooling
28
(B) Heating
29
Cold Draft Prevention (Heating Cycle)
30
Automatic Fan Speed (Indoor Unit)
31
(A) Cooling
31
(B) Heating
31
Outdoor Fan Speed Control
32
(A) Cooling
32
(B) Heating
32
Freeze Prevention (Cooling)
33
Condensing Temperature Control (Cooling)
34
Overload Protection (Heating)
35
Discharge Temperature Control (Cooling and Heating)
36
Auto. Mode for Automatic Heating/Cooling Switching
36
Defrosting Control, Outdoor Heat Exchanger Coil (Heating)
38
4-Way Valve, Solenoid Control
39
(A) Normal Control Mode
39
(B) AUTO Control Mode
40
Automatic Restart after Power Interruption
40
Electronic Refrigerant Control Valve
41
Compressor Discharge Gas Temperature
41
(A) Cooling
41
(B) Heating (Except During Defrosting)
41
Compressor Current Detection Circuit
42
Dehumidifying Operation
43
Drain Pump Control
44
Electronic Refrigerant Control Valve Control
45
Voltage Detection Control
46
3 Electrical Data
47
Indoor Unit (Electric Wiring Diagram, Schematic Diagram)
48
Outdoor Unit (Electric Wiring Diagram, Schematic Diagram)
52
4 Service Procedures
61
Troubleshooting
62
Check before and after Troubleshooting
63
General Troubleshooting Flow Chart: Diagnosis and Remedy
65
Meanings of Alarm Messages
67
LED Indication on the Outdoor Unit's P.C.B. Ass'y
69
Symptoms and Parts to Inspect
70
Procedures When a Specific Component Does Not Work
80
Service Functions of Remote Controller
82
Checking the Electrical Components
95
Measurement of Insulation Resistance
95
Checking the Protective Devices
97
Checking the Electrical Parts
98
Sensor and Solenoid Layout Diagram
101
Thermistor Characteristic Curve
103
PCB Setting
104
Address Setting Method
105
Automatic Address Setting Method
106
Displaying Indoor / Outdoor Unit Combination Numbers
106
Items to Check Prior to Test Run
107
Test Run Procedure
108
