SM830035
– 98 –
4
4. Service procedures
(3) Checking the Electrical Parts
1 Power transformer (TR1) ................. Indoor unit *Measure the coil resistance.
• Primary ; Measure the resistance between No.1 and No.3
(WHT lead wires) terminals of 3P (WHT) socket
connected to power transformer.
• Secondary 14V ; Measure the resistance between No.1 and No.2
(RED lead wires).
10V ; Measure the resistance between No.3 and No.4
(BRN lead wires).
Refer to “1-3 Other component specifications”.
2 Power transformer (TR2) ............ Outdoor unit *Measure the coil resistance.
• Primary ; Measure the resistance between No.1 and No.3
(WHT lead wires) terminals of 3P(WHT) socket jointed
to power transformer.
• Secondary 14 V ; Measure the resistance between No.1 and No.2
(BRN lead wires).
Refer to “1-3 Other component specifications”.
3 Indoor fan motor (FMI) ............... Indoor unit *Measure the coil resistance.
• Measure the resistance between each terminal of 9P (WHT) socket
connected to the indoor fan motor.
Refer to “1–2–(A) Major component specifications”.
4 Outdoor fan motor (FMO) ........... Outdoor unit *Measure the coil resistance.
• Measure the resistance in the same manner as explained above 3.
Refer to “1–2–(B)Major component specifications”.
5 Fan motor capacitor ............ Both in indoor and outdoor unit
• Remove the lead wires from the capacitor terminals,
and then place a probe on the capacitor terminals as
shown in Fig. 45. Observe the deflection of the pointer,
setting the resistance measuring range of the multimeter
to the maximum value.
• The capacitor is “good” if the pointer bounces to a great
extent and then gradually returns to its original position.
NOTE
The range of deflection and the deflection time differ
according to the capacity of the capacitor.

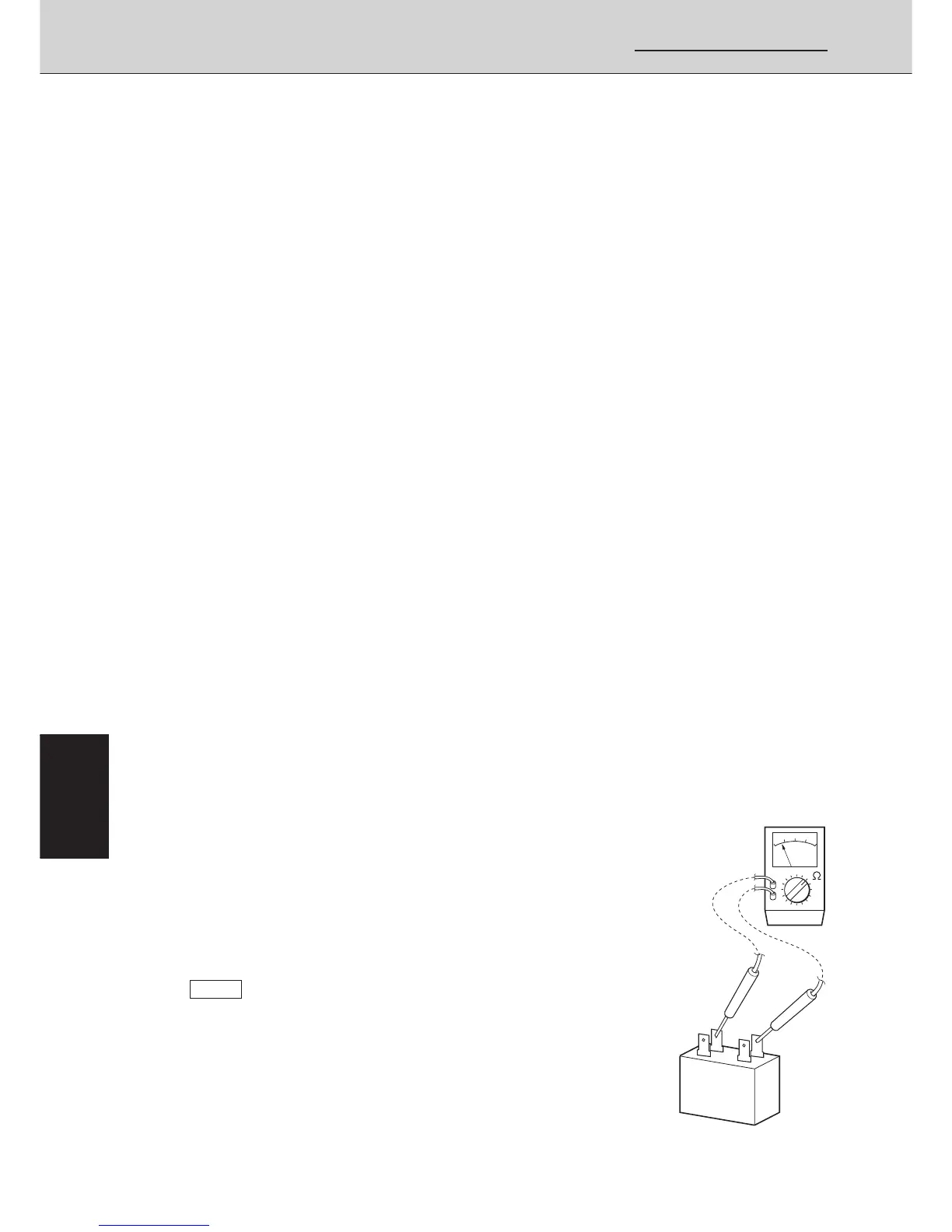

Fig. 45
Multimeter
Fan motor
Capacitor
0643_X_S
