3.8 Composition of the machine
The machine is composed of the following parts:
1. PUMP GROUP
2. WATERMAKER GROUP
3.8.1 Pump group
This pump has the duty of picking the sea water up and send it to the watermaker group, through the pre filter.
The pump group is composed of the following components:
• Diaphragm pump
• Pressure transduce
• Pump box

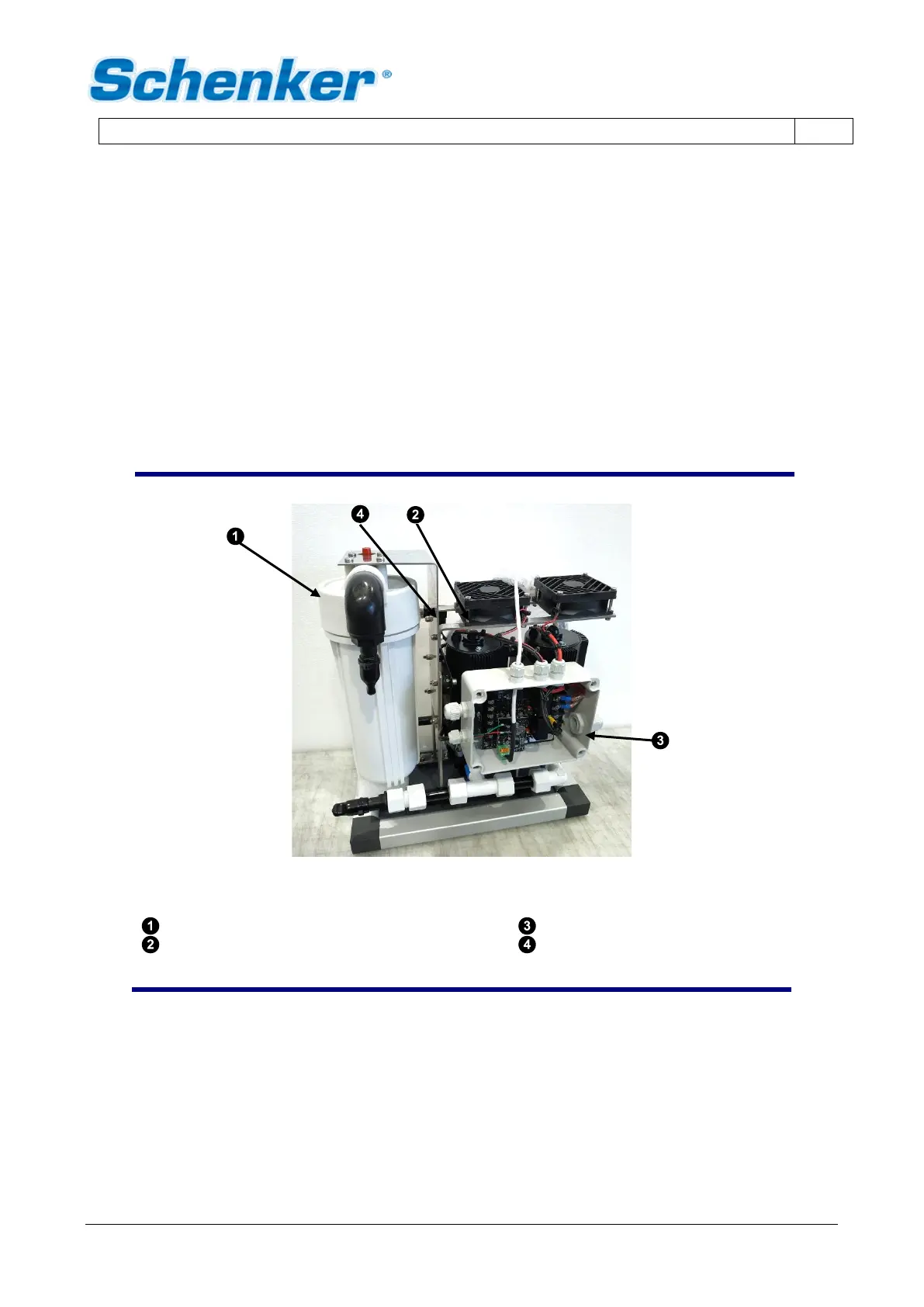

PUMP GROUP AND FILTER 12-24 V DC
FIG. 3-6
5 micron cartridge filter
Pump box
Diaphragm pumps
Pressure transducer
Pressure transducer. It Is hydraulically connected to the pump group. It stops the system if the pump pressure
exceeds 9,5 bar or if it doesn’t reach 0,8 bar.
Pump box. Plastic Box with all the electric connections for the power supply of motor, motherboard, pressure
transducer, remote panel and electrovalve.
