4.4 Hydraulic connections
HYDRAULIC CONNECTION AND HOSES

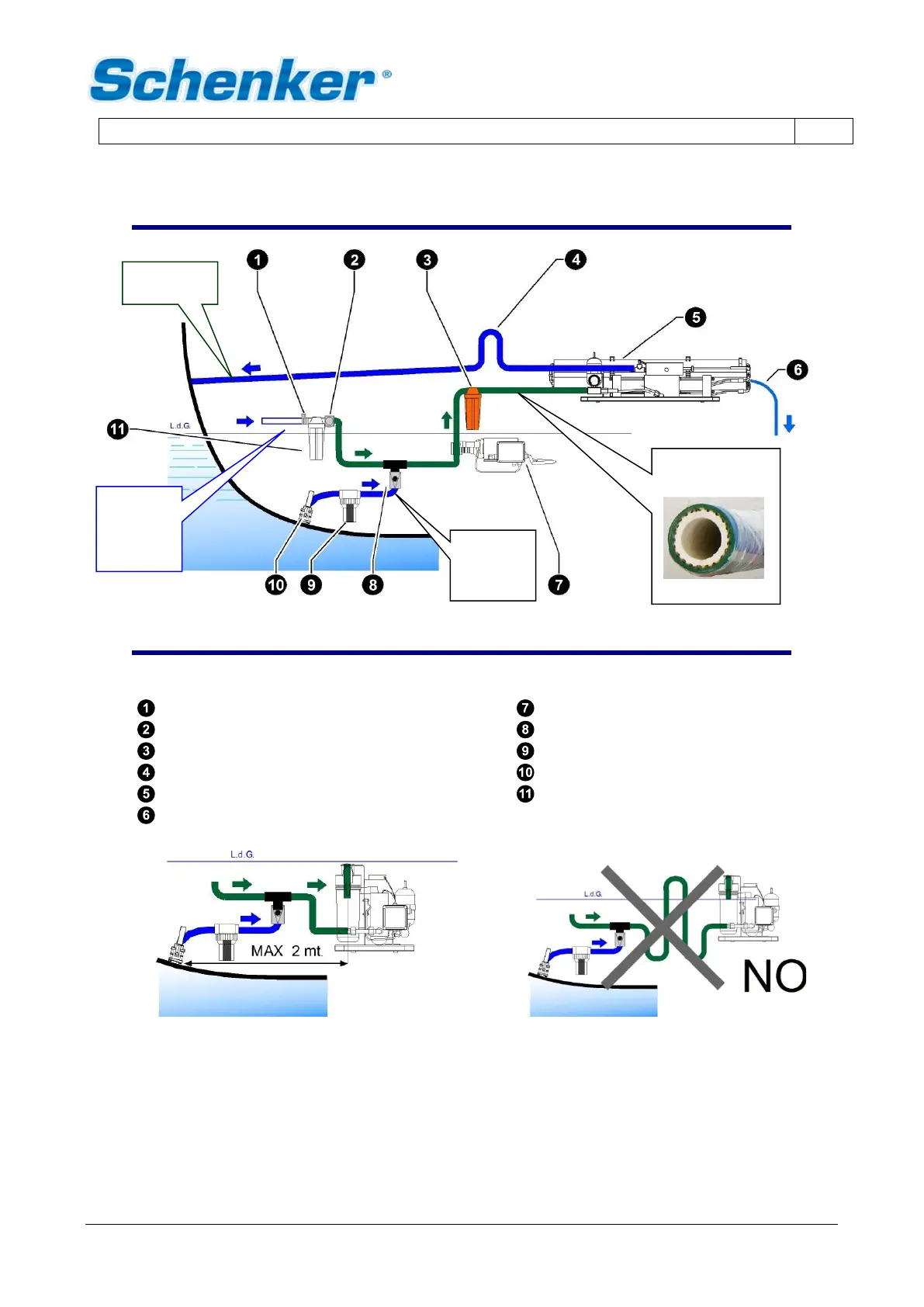

FIG. 4-1
Pressurized fresh water valve
Pump
Elecrovalve
Non return valve
5 micron filter
Mesh filter
Swan neck upward - Discharge
Water inlet
Watermaker
Active carbon filter
Fresh water outlet
All the hydraulic connections (to exception of the fresh water production) have to be realized with a 16 mm.
int. diam. hose and a ½” holder. The hydraulic section that is continuously under consistent pressure is the
pump outlet – 5 m. filter – watermaker inlet connections . For this section is necessary to use a good quality
PN 10 min. reinforced hose. An inadequate hose could burst, jeopardizing seriously the safety of the vessel.
The hydraulic connections are:
Plumb to
pressure
side of
vessel
fresh water
system
Exhausted
discharge
“Armorvin”
type hose
int. dia. 16
mm.
Reinforced hose
PN16 min int. dia.
16 mm.
