Sharp LC-24LE210E Service Manual

73
LC-24LE210
LC-24LE220
REF No. PARTS DESCRIPTION *
SN CODE EX CODE
1 CCABAC617WJ01 KS-CAB-A LC24LE210E. S -- --
1 CCABAC617WJ02 KS-CAB-A LC24LE220E. S -- --
1 CCABAC617WJ03 KS-CAB-A LC24LE220EFCB S -- --
1-1 GCABAC617WJ1A Cabinet LC24LE210E-220E. S -- --
1-1 GCABAC617WJ1B Cabinet LC24LE210EFCB. S -- --
1-2 HDECQB507WJ1A Decoration panel LC24LE210E. S -- --
12
HDECQB507WJ1B
Decoration panelLC24LE220E
S
LE210E/LE220E CABINET PARTS LISTING
1
-
2
HDECQB507WJ1B
D
ecora
ti
on pane
lLC24LE220E
.
S
-- --
1-2 HDECQB507WJ1C Decoration panel LC24LE210EFCB. S -- --
1-3 PSHEPB110WJKZ Diffuser sheet. SAA AB
2 CCABBB855WJ01 KS-CAB-B LC24LE210E-220E. S -- --
2 CCABBB855WJ02 KS-CAB-B LC24LE210EFCB S -- --
2-1 GCABBB855WJ1A Rear Cabinet LC24LE210E-220E. S -- --
2-1 GCABBB855WJ1B Rear Cabinet LC24LE210EFCB. S -- --
2-2 LANGKD044WJFW Angles (Vesa). SAA AD
3 R1LK236D3LF21Y PANEL 24" 50Hz FHD CMI LED M236H3-LA2. S BS CM
4 TLABN0134BMZZ Chassis Label. SAA AA
5 TLABN0134BMZZ Panel Label SAA AA
6 LANGKD039WJFW Connectors Angle. S AB AE
7 CANGKD040WJ01 Upper Angle. SAG A
T
8 LANGKD041WJFW Lower Angle. SAF AR
9 PZETKA572WJKZ Insulation sheet. S AD AM
10 GCOVAD819WJ1A Control Cover LC24LE210E-220E. S -- --
10 GCOVAD819WJ1B Control Cover LC24LE210EFCB. S -- --
11 JBTN-A887WJ1A Control Button LC24LE210E-220E. S -- --
11 JBTN-A887WJ1B Control Button LC24LE210EFCB. S -- --
12 RTUDAA065WJQZ TUNER TDTW-S723D S AM AY
Q
13 QCNW-L296WJQZ Wire (LV). SAG AS
14 QCNW-L300WJQZ Wire (KM). SAB AE
15 QCNW-L301WJQZ Wire (PD). SAC AH
16 QCNW-L302WJQZ Wire (RA). SAB AE
17 QCNW-L297WJQZ Wire (LA). SAB AE
18 RSP-ZA490WJZZ Speakers. SAK AX
19 TLABNC117WJZZ Model Label. SAA AC
20 TLABZC354WJZZ ECO Label on A_Cab ( Except Russian models). S AA AB
20 TLABZC702WJZZ ECO Label on A_Cab ( LC24LE210EFCB). S -- --
21
XBPS730P06WS0
Screw, x 4 (Fix upper and lower angles to panel, laterals).
S
AA
AA
21
XBPS730P06WS0
Screw
,
x
4
(Fix
upper
and
lower
angles
to
panel
,
laterals)
.
S
AA
AA
22 XEBS730P08000 Screw, x 11 (Fix upper,lower angle to A_Cab, euro,control button and B_cab to A_c
a
SAA AA
23 XHPS730P06WS0 Screw x 8 (Fix Main, Power Pwb and Connectors angle). S AA AA
24 XBBS740P10000 Screw x 2 (Fix Stand neck to A_Cab, upper area). S AA AA
25 XEBS740P16000 Screw x 2 (Fix Stand neck to A_Cab, lower area). S AA AA
26 GCOVAD877WJ1A Stand Neck SAF AR
27 CDAI-A698WJ01 KS-Stand LC24LE210E-220E. S AS BC
27 CDAI-A698WJ02 KS-Stand LC24LE210EFCB. S -- --
CCOVAD819WJ01 KS-KEY COVER LC24LE210E-220E S AD AK
LE210E/LE220E ACCESSORIES PARTS LISTING
CCOVAD819WJ02 KS-KEY COVER LC24LE210EFCB S -- --
DLAB-D014WE01 LABELS SET - LC24LE210EE S -- --
DLAB-D015WE01 LABELS SET - LC24LE220EE S -- --
DLAB-D029WE01 LABELS SET - LC24LE210EK S -- --
DLAB-D035WE01 LABELS SET - LC24LE210EFCB S -- --
DLAB-D720WE01 LABELS SET - LC24LE210EV S -- --
DLAB-D721WE01 LABELS SET - LC24LE220EV S -- --
RRMCGA896WJSA R/C YKF204-019 LE220E S AE AP
TINS-E769WJZZ OWNERS MANUAL LC24LE210-220E S AD AL
TI
NS
-
E95
4
WJZZ
OWNE
R
S
M
A
N
UA
L
L
C24
LE
210-220
E
E
A
S
T
E
R
N
C
O
U
N
TRI
ES
S
-- --
TINS E954WJZZ
OWNERS
MANUAL
LC24LE210 220E
EASTERN
COUNTRIES
S
TLABND978WJZZ CHASSIS LABEL S AA AA
TLABND982WJZZ ORIGINAL FCB LABEL- LC24LE210EFCB.
TLABZB310WJZZ PROCESS LABEL REEL 293m(2.930unid) 100mm S AA AA
TGAN-A801WJZZ GUARANTEE FOR LC24LE210E - UK COUNTRY S -- --
TGAN-A802WJZZ GUARANTEE / AQUOS CARE PLAN - UK COUNTRY S -- --
TGAN-B078WJZZ GUARANTEE FOR LC24LE210E/220E - EASTERN COUNTRIES S -- --
TGAN-B079WJZZ GUARANTEE FOR LC24LE210E/220E - EASTERN COUNTRIES S -- --
UBATUA023WJZZ BATERY R6UWC/2SKD x2 S AA AD
! QACCKA047WJPZ AC CORD / LP21 LS7 - ONLY FOR EE/EV AND EFCB MODELS S AC AH
!
! QACCBA054WJPZ AC CORD / LP61L LS7 - ONLY FOR UK COUNTRY S AD AM
LANGKD040WJFW TOP ANGLE S-- --
NSFTZA454WJF7 INSERT BOSS M4 S AA AD
HDECQB506WJ1A LED DECORATION LC24LE210E-LC24LE220E. S -- --
HDECQB566WJ1A STAND SILVER DECORATION LC24LE210EFCB. S -- --
PSPAZC596WJZZ DECORATION ADHESIVE 24" S AA AD
GDAI-A698WJ1A STAND S-- --
TLABM5584BMZZ PAPER LABEL / ON CARTON BOX S AA AB
SPAKCF857WJZZ
PACKING CASE LC24LE210E 220E
S
AD
AM
LE210E/LE220E PACKING PARTS LISTING
SPAKCF857WJZZ
PACKING
CASE
LC24LE210E
-
220E
.
S
AD
AM
SPAKCF937WJZZ PACKING CASE LC24LE210EFCB. S -- --
SPAKPB586WJZZ HOSO-PP SAB AF
SPAKXD073WJZZ PACKING ADD SAE AN

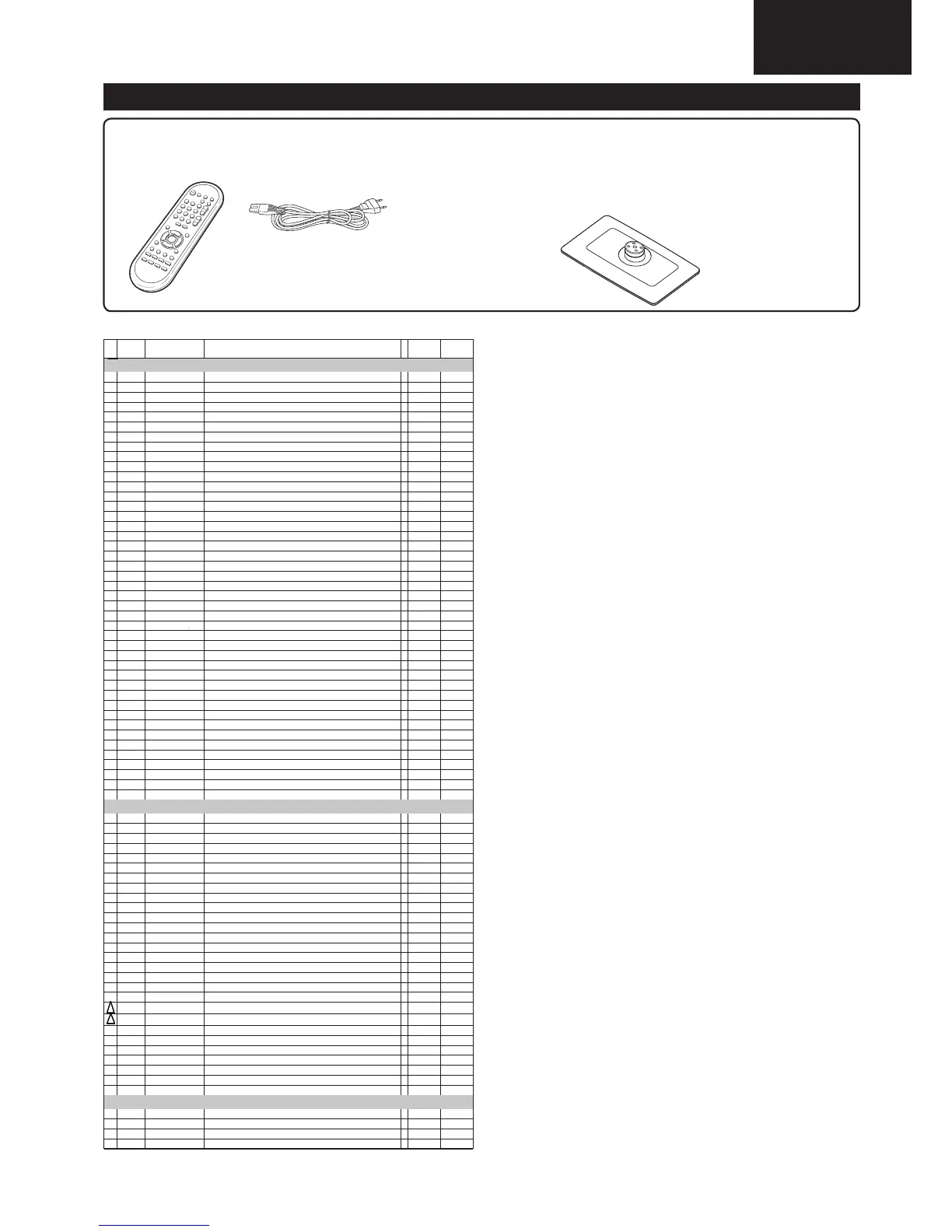

Remote control unit
(g1)
AC cord (g1)
• Operation manual (This publication)
• “AA” size zinc-carbon battery (g2)
Product shape varies in
some countries.
Supplied accessories
• Stand unit (x1)
