4.5 Bedienung über den benutzerdefinierten Webserver
Open your internet browser with the option "to customized site".

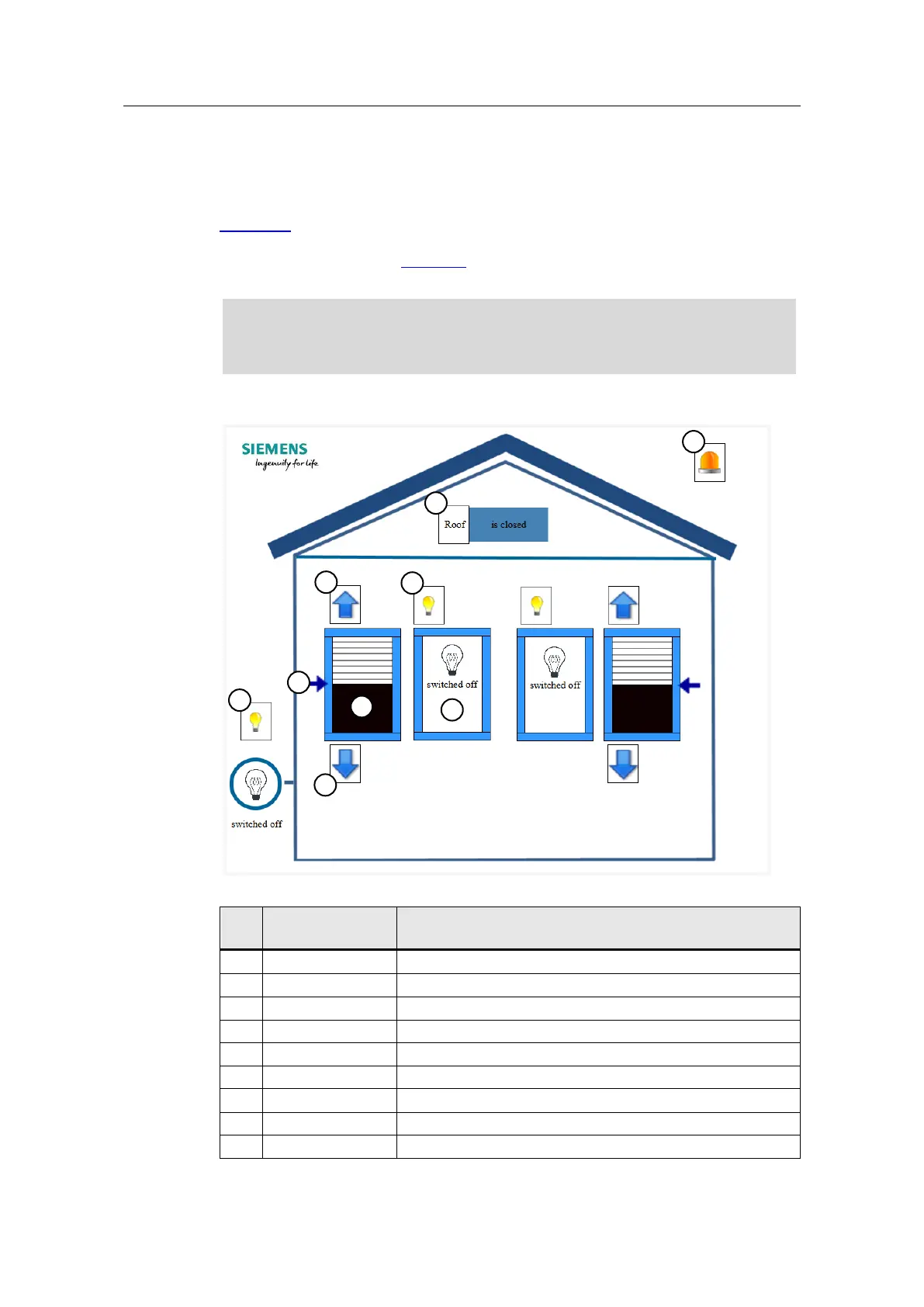

Figure 4-1 points to the configured operating elements for the user-defined web
server. In the web browser, click using the mouse, or on a touch screen, tap on the
button with the function in Table 4-6.
Note
After loading the circuit program, the display of the blinds is not yet synchronized
with the corresponding block in the circuit program. Synchronization takes place
when the end position of a roller blind is reached.
Figure 4-1
1
5
6
7
9
3
4
2
8
Table 4-6
Lfd.
Nr.
Funktion
Bemerkung
1.
Roller blind high
Roller blind is being lifted (up to roller blind limit switch)
2.
Roller blind from
Roller blind is being lowered (up to roller blind limit switch)
3.
Roller blind
Roller blind is up (window is shown black)
4.
Roller blind stop
Roller blind can be stopped at any position
5.
Light switch
Switches the light for each room on and off
6.
Light on/off
Lamp on, displayed in yellow
7.
Roof hatch
Roof hatch is opened or closed
8.
Panic function
Switches on lights in the house and outside lighting
9.
Outside lighting
Outside lighting on, displayed in yellow

Siemens LOGO! 8 Specifications

General

Model	LOGO! 8
Programming	LOGO! Soft Comfort
Memory	400 function blocks
Real-time clock	Yes
Protection class	IP20
Digital inputs	8 integrated
Digital outputs	4 integrated
Analog inputs	2 integrated
Communication	Ethernet
Supply Voltage	12/24V DC
Operating temperature	0 to 55 °C
