20 / 22
Siemens Desigo Touch and Web CM111029en_04
Building Technologies Compatibility & limitations – Firmware updates 2014-08-15
2.7 Firmware updates
2.7.1 General
With the devices PXG3.W100 (all versions) and PXM40 / PXM50 (>1.15.30.497)
the firmware is updated in XWP using SSA-DNT; see E-learning module "Com-
missioning the web server". To ensure operation of the devices on the most current
firmware, the current firmware must be downloaded.
2.7.2 PXM 40/PXM50 ≤1.15.30.497
As a rule, the firmware of any PXM40/50s (referred to as “device”) can be updated
using the FWDT (Firmware Download Tool). This is particularly important if a FW
update is not possible via DNT (Discovery and Node Setup Tool) due to technical
issues. –
In devices with FW version ≤1.15.30.497, updating the firmware via FWDT
is mandatory, to be able to update the device using DNT in the future.

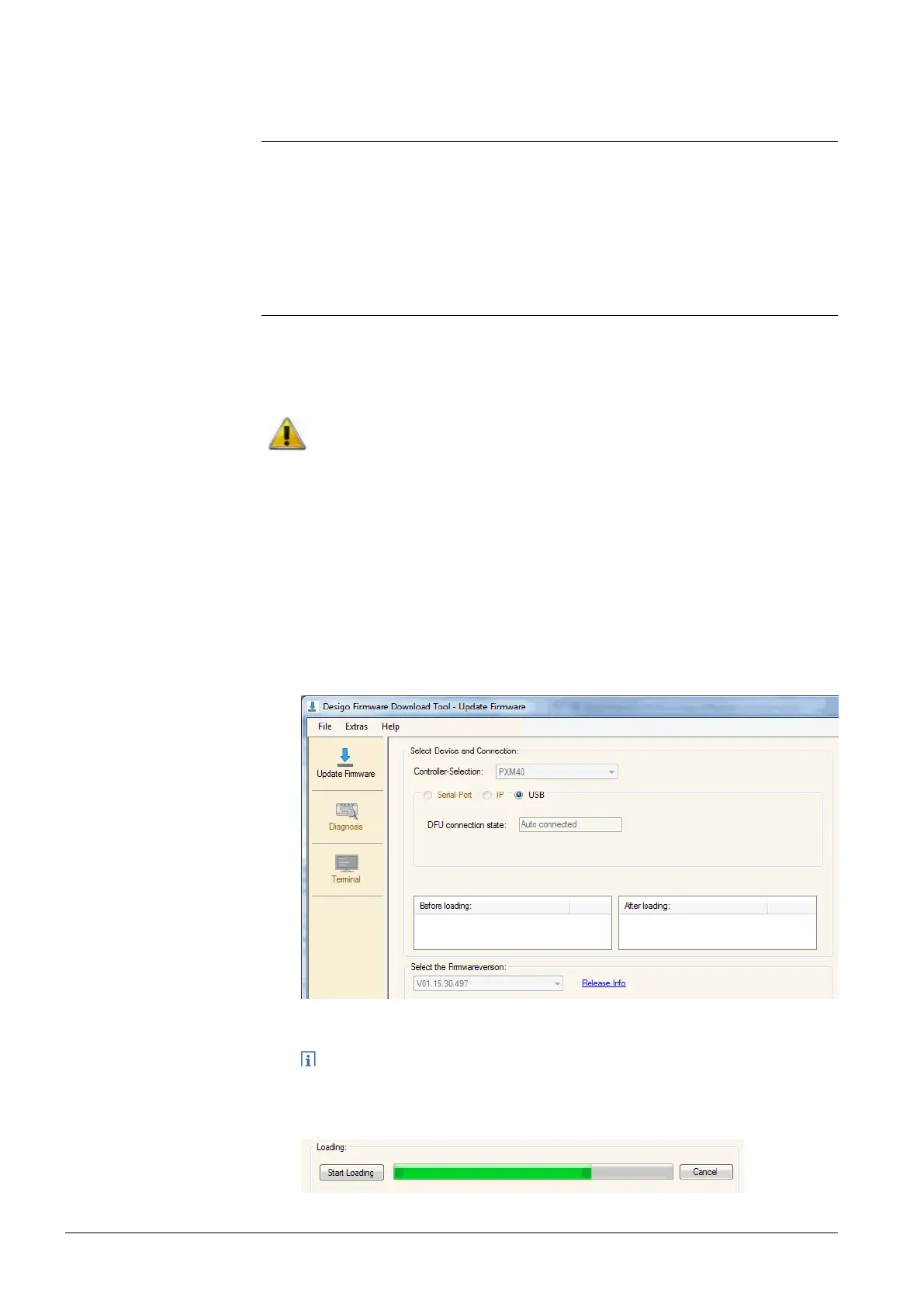

Procedure
1. Disconnect the device from power.
2. Press/hold the Reset button, reconnect the device to power.
3. Wait until the orange LED flashes (ca. 10 seconds), then
4. release the Reset button.
5. Start FWDT.
6. Connect the device to the PC via USB connection.
---> FWDT discovers the device and enters the mode specific to these devic-
es.
7. Group box Select the firmware version > drop down list > select the accu-
rate firmware version for your device.
The Select the firmware version dropdown list will appear only if there’s
more than one firmware version available.
8. Click Start Loading.
---> FWDT starts uploading and displays a progress bar.
