6. Mechanical design
6.1 General
The thermostats consist of 2 parts:
• Front panel with electronics, operating elements and built-in room temperature
sensor.
• Mounting base with power electronics.
The rear of the mounting base contains the screw terminals.
The base fits on a square conduit box with 60.3 mm fixing centers.
Slide the front panel in the mounting base and snap on.
RDF302, RDF302/VB, RDF302.B

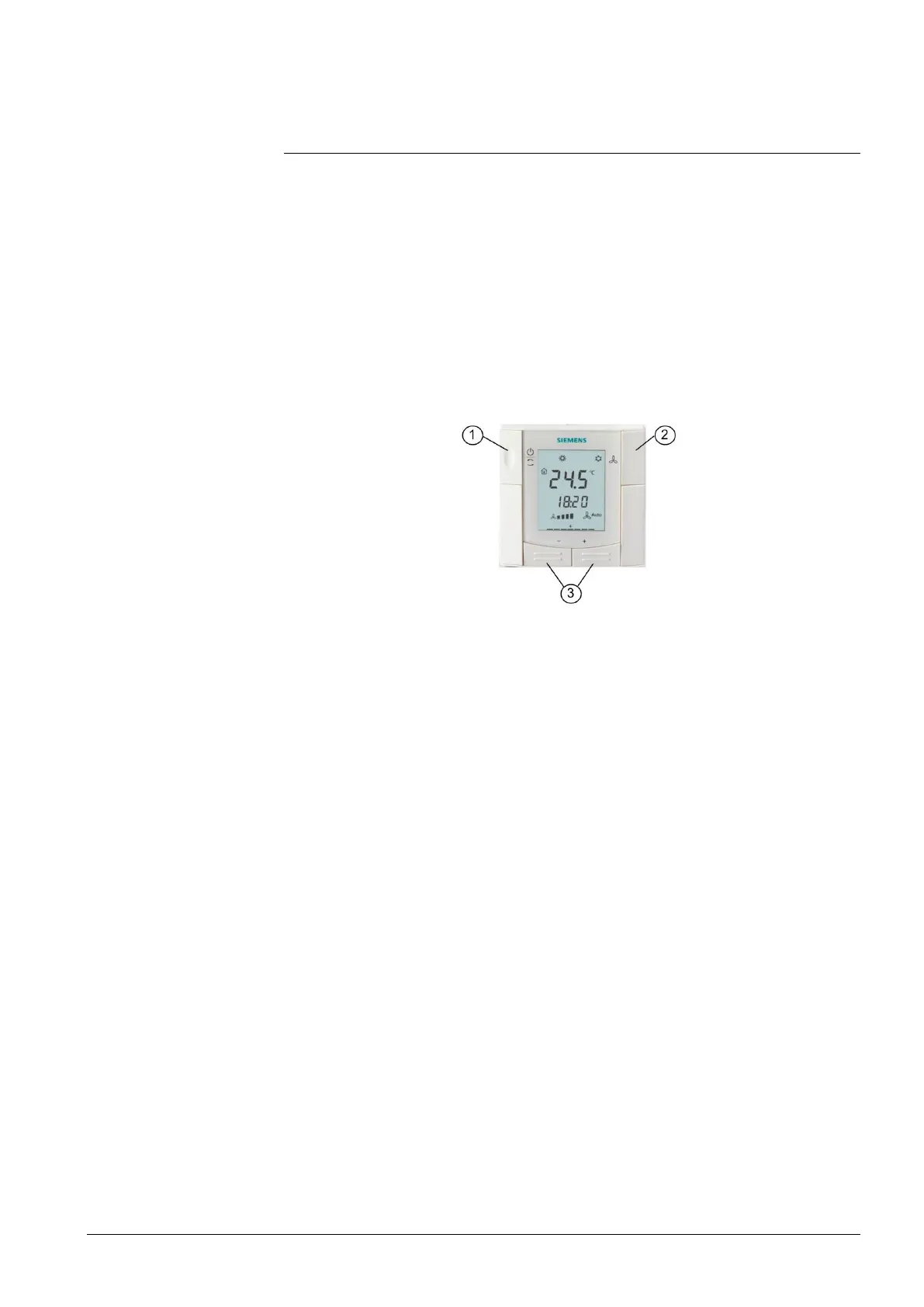

1. Operating mode selector
2. Change fan operation
3. Adjust setpoints and control parameters
For operation, refer to section 4.3.
Operation and settings
