22
Operating Instructions
Fully Withdrawn and Unlocked Positions To move the move-
able drawout element from the fully withdrawn position to the
unlocked position, push toward the bus connections until the
moveable drawout element hits a solid stop. The secondary
disconnects on both sides of the moveable and stationary
drawout elements will mate as the moveable drawout ele-
ment moves into the unlocked position. When the moveable
drawout element is in the unlocked position, the pointer on
the position indicator will point to the unlocked symbol. To
move the moveable drawout element from the unlocked
position to the fully withdrawn position, pull the moveable
drawout element outward until the extension rails are fully
extended .

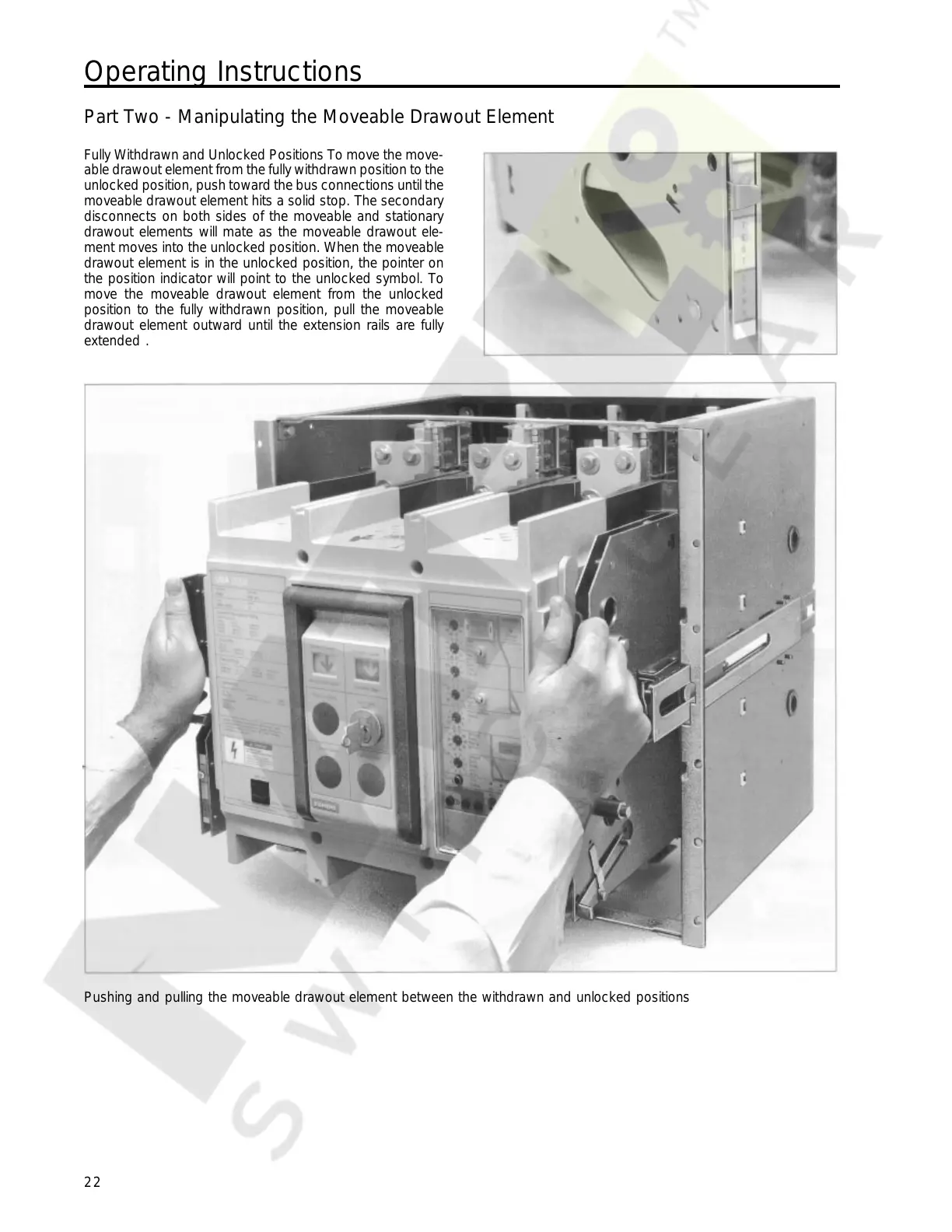

Part Two - Manipulating the Moveable Drawout Element
Pushing and pulling the moveable drawout element between the withdrawn and unlocked positions
