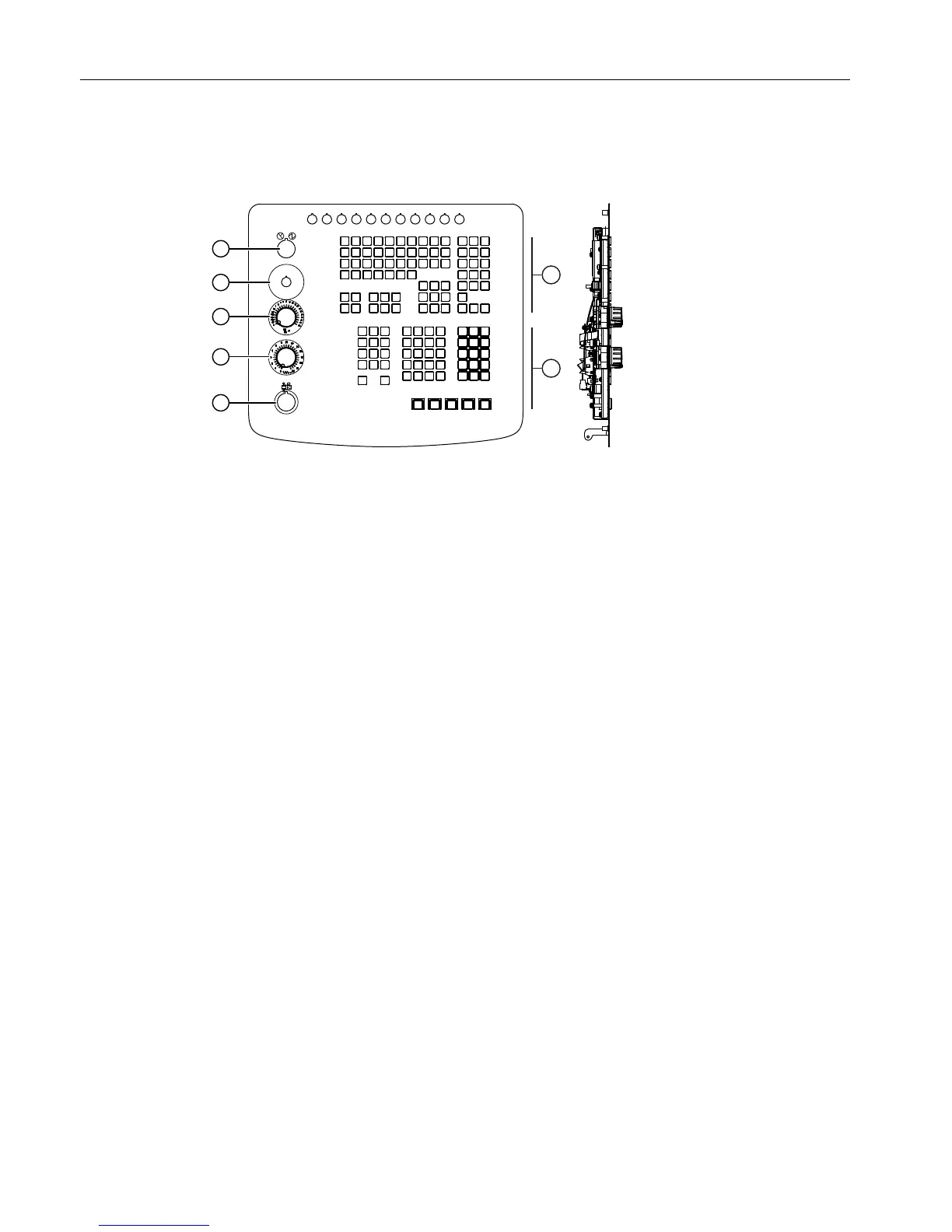

① CNC keyboard
② Machine control keys
③ Slot for "Clamp tool" illuminated key
④ Feedrate override rotary switch
⑤ Rapid traverse override rotary switch
⑥ Slot for emergency stop
⑦ Slot for "Machine ON" illuminated key
Figure 3-1 MCP 466C-M IE (front and side view)
CNC keyboard
● USB keyboard (without function keys)
● Operating area keys (hotkeys):
MACHINE, PROGRAM, OFFSET, PROGRAM MANAGER, ALARM and CUSTOM
● Further keys:
ALARM CANCEL, HELP, GROUP CHANNEL, INSERT, SELECT and NEXT WINDOW
Operator controls
● 54 keys
● 1 x feedrate override rotary switch (0-120%, 29 latched positions)
● 1 x rapid traverse override rotary switch (0-100%, 23 latched positions)
Operator control and display elements
3.2 Milling machine control panel
ERGOline Stage 3
16 Manual, 02/2015, 6FC5397-4FP40-0BA0
