① CNC keyboard
② Machine control keys
③ Feedrate override rotary switch
④ Handwheel
⑤ Slot for emergency stop
⑥ Slot for "Machine ON" illuminated key

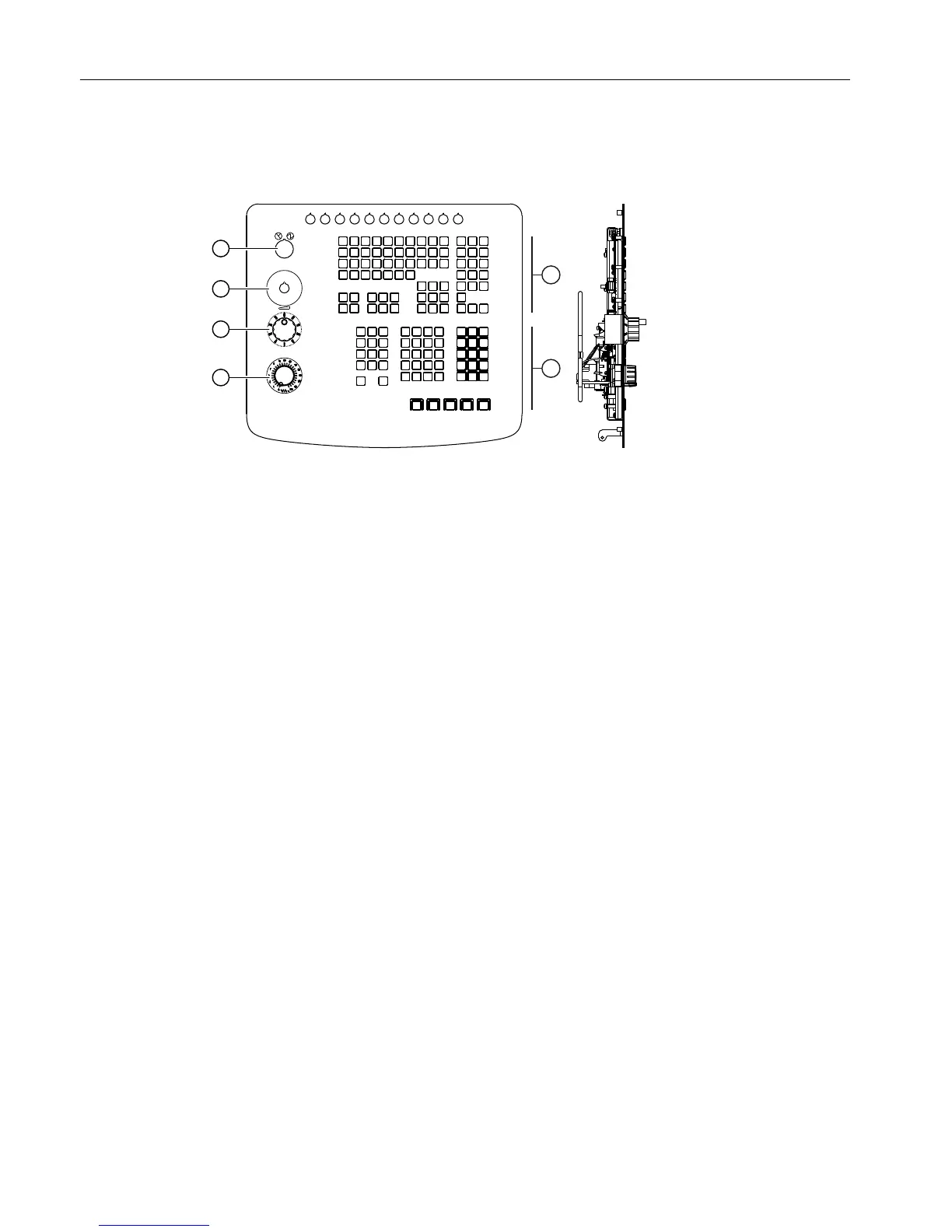

Figure 3-2 MCP 466C-T IE (front and side view)
CNC keyboard
● USB keyboard (without function keys)
● Operating area keys (hotkeys):
MACHINE, PROGRAM, OFFSET, PROGRAM MANAGER, ALARM and CUSTOM
● Further keys:
ALARM CANCEL, HELP, GROUP CHANNEL, INSERT, SELECT and NEXT WINDOW
Operator controls
● 54 keys
● 1 x feedrate override rotary switch (0-120%, 29 latched positions)
● 1 x handwheel (100 pulses/revolution, approx. 60 mm wheel diameter)
Options
Mounting option for:
● 1 x emergency stop button (16 mm system)
● 1 x "Machine ON" illuminated key (22 mm system)
Operator control and display elements
3.3 Turning machine control panel
ERGOline Stage 3
18 Manual, 02/2015, 6FC5397-4FP40-0BA0
