Overview
1.3 Structure of the devices
SIMATIC IOT2050
12 Operating Instructions, 03/2024, A5E39456816-AF
1.3.2 Other configurations for IOT2050

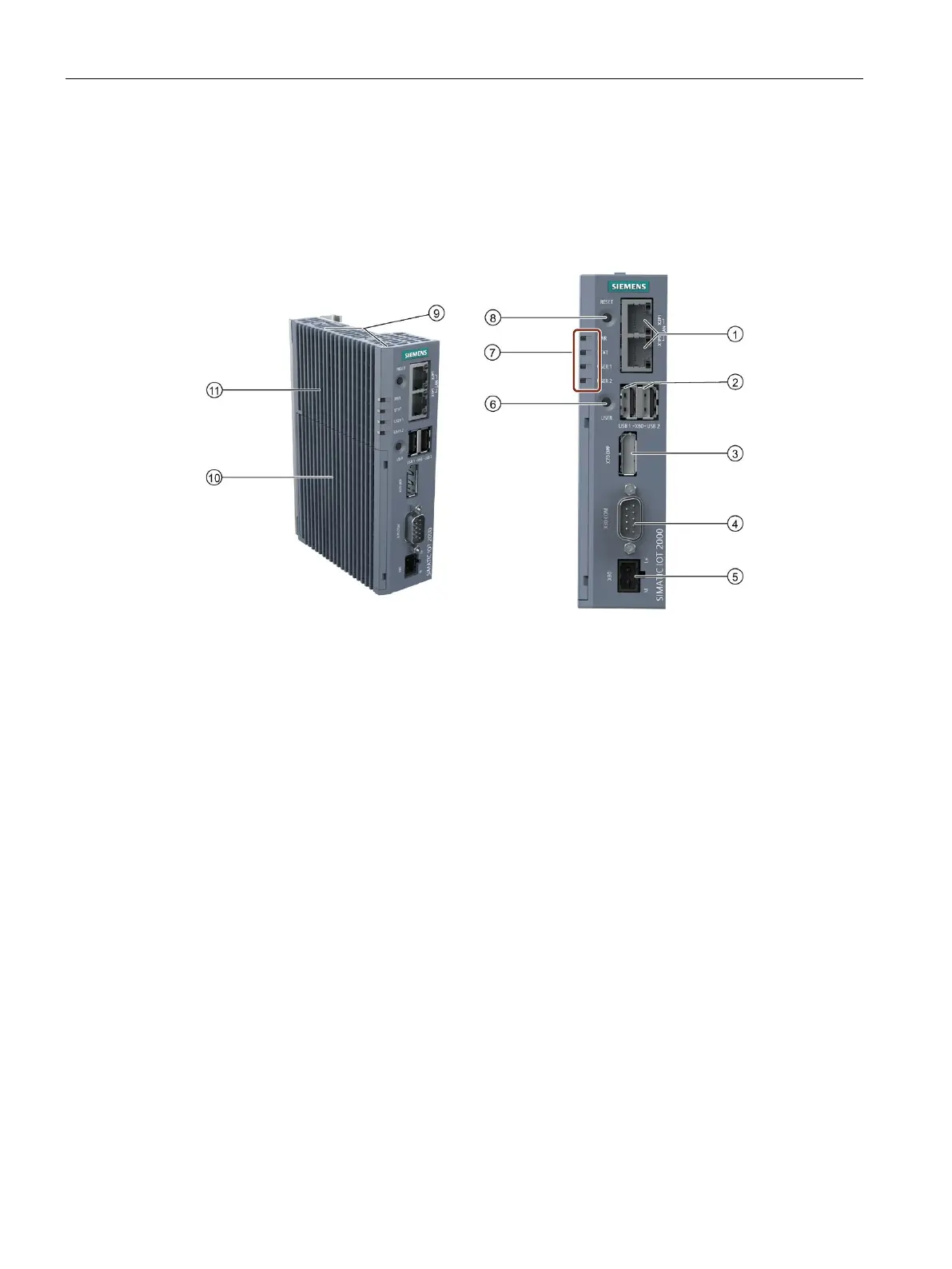

The following figures show the configuration and interfaces of the SIMATIC IOT2050.
①
Ethernet interfaces 100/1000 Mbps
⑦
LED display, see section "Status displays
(Page 13)"
②
For IOT2050 Basic (FS02), IOT2050 Advance
(FS04):
•
X60-USB1: USB3.0 Type A
•
X60-USB2: USB2.0 Type A
⑧
RESET button for the CPU
For IOT2050 M.2, IOT2050 Advance (FS01 ~
FS03)
IOT2050 Basic (FS01):
•
X60-USB1/X60-USB2: USB2.0 Type A
③
DisplayPort 1.1 A
⑨
Markings for mini PCIe/M.2 installation
accessory
④
COM interface (RS232/422/485)
⑩
Shield cover
⑤
Power supply connector
⑪
Top housing
⑥
USER button, programmable
