Dimensio
n dra
wings
8.2
Dimensi
on d
rawing
s SM
SIMAT
IC IOT2050
94
Operating Inst
ructions
,
03/2024
,
A5E
3945
6816
-
AF
8.2
Dimensi
on dra
wing
s SM

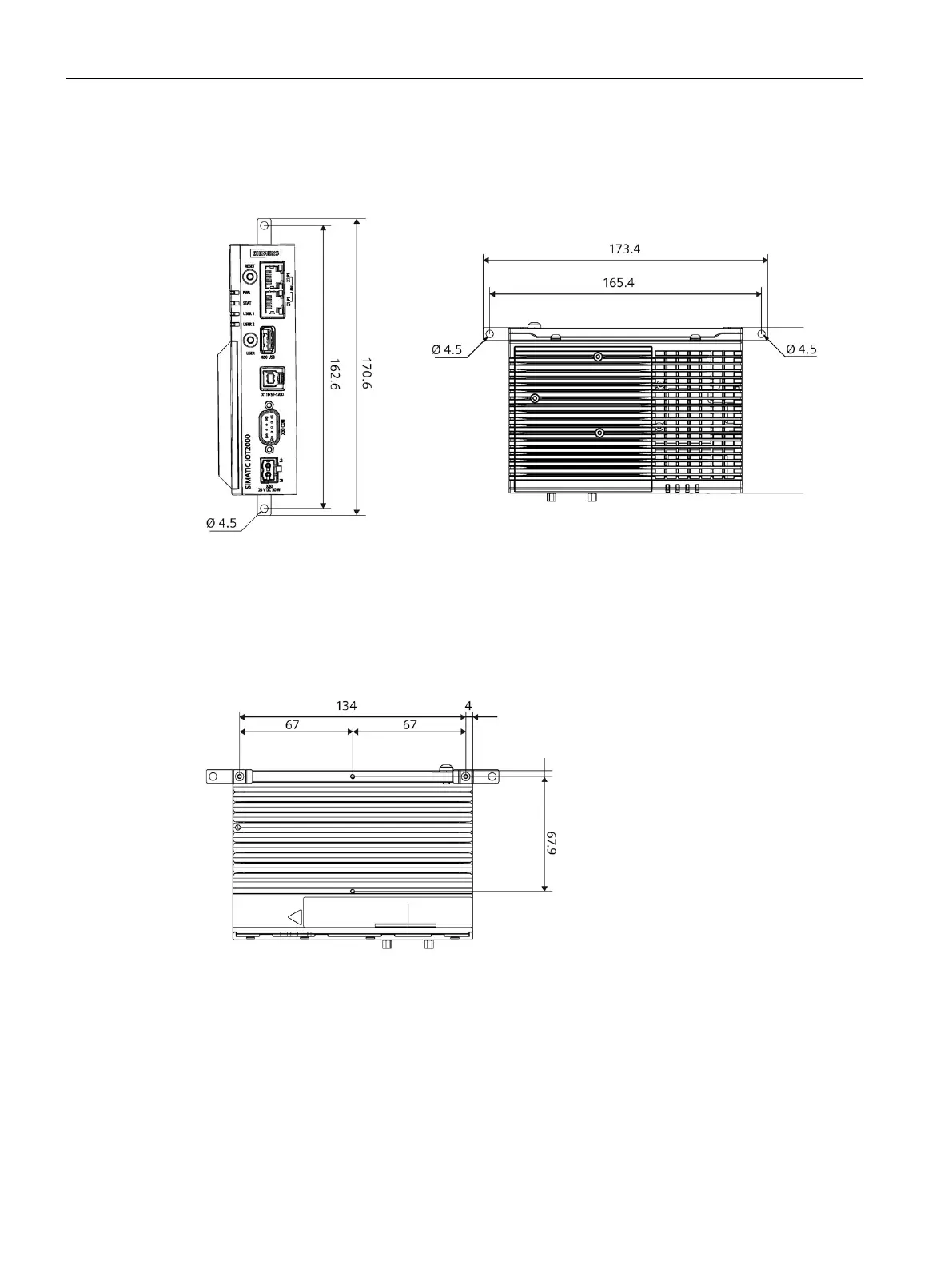

The following f
igures show the dimensio
n drawings of the type IOT2050 S
M.
All d
imensio
ns in mm.
8.3
Dimensi
on dra
wing
s mounting
The following f
igures show the dimensio
n drawings of the moun
ting holes.
93
95
Table of Contents
Default Chapter
3
Preface
3
Table of Contents
5
1 Overview
9
Product Description
9
Configuration Plan
10
Structure of the Devices
11
Iot2050 Sm
11
Other Configurations for IOT2050
12
Status Displays
13
Accessories
13
2 Safety Instructions
14
General Safety Instructions
14
Cybersecurity Information
17
Data Protection
17
Notes on Use
17
3 Installing and Connecting the Device
19
Preparing for Installation
19
Checking the Delivery
19
Identification Data of the Device
21
Device QR Code
21
Permitted Mounting Positions and Mounting Types
22
Mounting the Device
23
Mounting Instructions
23
Mounting on DIN Rails
24
Secure the Mounting Clips
24
Mounting on DIN Rails
25
Wall Mounting
27
Vertical Wall Mounting
27
Horizontal Wall Mounting
28
Connecting the Device
29
Notes on Connecting
29
Connecting the Function Earth
30
Connecting the Power Supply
31
Iot2050 Sm
33
Installing and Removing the Expansion Cable
33
Connecting the Ethernet
34
4 Software and Commissioning
35
Install Example Image on Emmc
36
Overview
36
Install Sample Image to Emmc with Single USB Stick
37
Setting up the IOT2050 with Example Image
39
Installing the SD-Card Example Image
39
Remote Access with Putty SSH Connection
39
Remote Access with UART Connection
41
Setting up Network Interface
44
Installing Software on IOT2050
46
Change Boot Order of IOT2050
48
Using UART Connection
49
5 Expand Device
51
Insert Micro SD Card/Nano SIM Card
51
Install Arduino Shield
52
Install Mini Pcie Card
54
IOT2050 SM: Installing Mini Pcie Card
54
IOT2050 Basic/Advance: Installing Mini Pcie Card
58
IOT2050 Basic/Advance: Installing Half-Size Mini Pcie Card
61
IOT2050 M.2: Installing M.2 Card
62
6 Maintaining and Repairing the Device
65
Maintenance
65
Repair Information
65
Replacing the Backup Battery
66
Overview
66
IOT2050 Advanced and IOT2050 M.2
67
Iot2050 Sm
69
Recycling and Disposal
70
Update the Firmware
71
Overview
71
Transfer Required Software
73
Clean Emmc on IOT2050 (Optional)
74
Install Firmware Update Tool
74
Update Firmware
75
Configure IOT2050 SM
76
Working with Web UI
77
Working with Eil Cli Interface
79
Configure S7-1200 SM with Eio Cli
79
Reading and Writing Data to IOT2050 SM
80
Converting Real to Float
84
Upgrade
86
Diagnostic EIO
86
Controller Status
87
7 Certificates and Approvals
88
Directives and Declarations
90
Notes on CE Marking
90
ESD Guideline
91
8 Dimension Drawings
93
Dimension Drawings SM
94
Dimension Drawings Mounting
94
9 Technical Specifications
96
Iot2050 Sm
96
General Technical Specifications
96
Electromagnetic Compatibility
97
Ambient Conditions
98
Power Demand of the Components
99
Direct Current Supply (DC)
100
Other Configurations for IOT2050
100
General Technical Specifications
100
Electromagnetic Compatibility
102
Ambient Conditions
103
Power Demand of the Components
104
Direct Current Supply (DC)
105
10 Hardware Descriptions
106
IOT2050 SM: Motherboard
106
IOT2050 Advance/Basic: Motherboard
109
IOT2050 M.2: Motherboard
112
External Interfaces
114
Power Supply
114
Usb
115
Interface for S7-1200 Modules
115
Ethernet Port
116
Serial Port
116
Internal Interfaces
118
Arduino Shield Interfaces
118
UART Debug
119
Mini Pcie Interface
120
M.2 Interface
120
Micro SD Interface
122
Displayport 1.1A
123
Technical Support
124
Service and Support
124
Troubleshooting
124
Markings and Symbols
125
Overview
125
Safety
125
Operator Controls
125
Certificates, Approvals and Markings
126
Interfaces
127
List of Abbreviations
128
Glossary
130
Index
132
