Siemens SIMATIC IOT2050 User Manual

Hardware descriptions
10.5 Internal interfaces
SIMATIC IOT2050
Operating Instructions, 03/2024, A5E39456816-AF
123
Pin
Abbreviation
Function
7
Dat0
Data line bit 0
8
Dat1
Data line bit 1

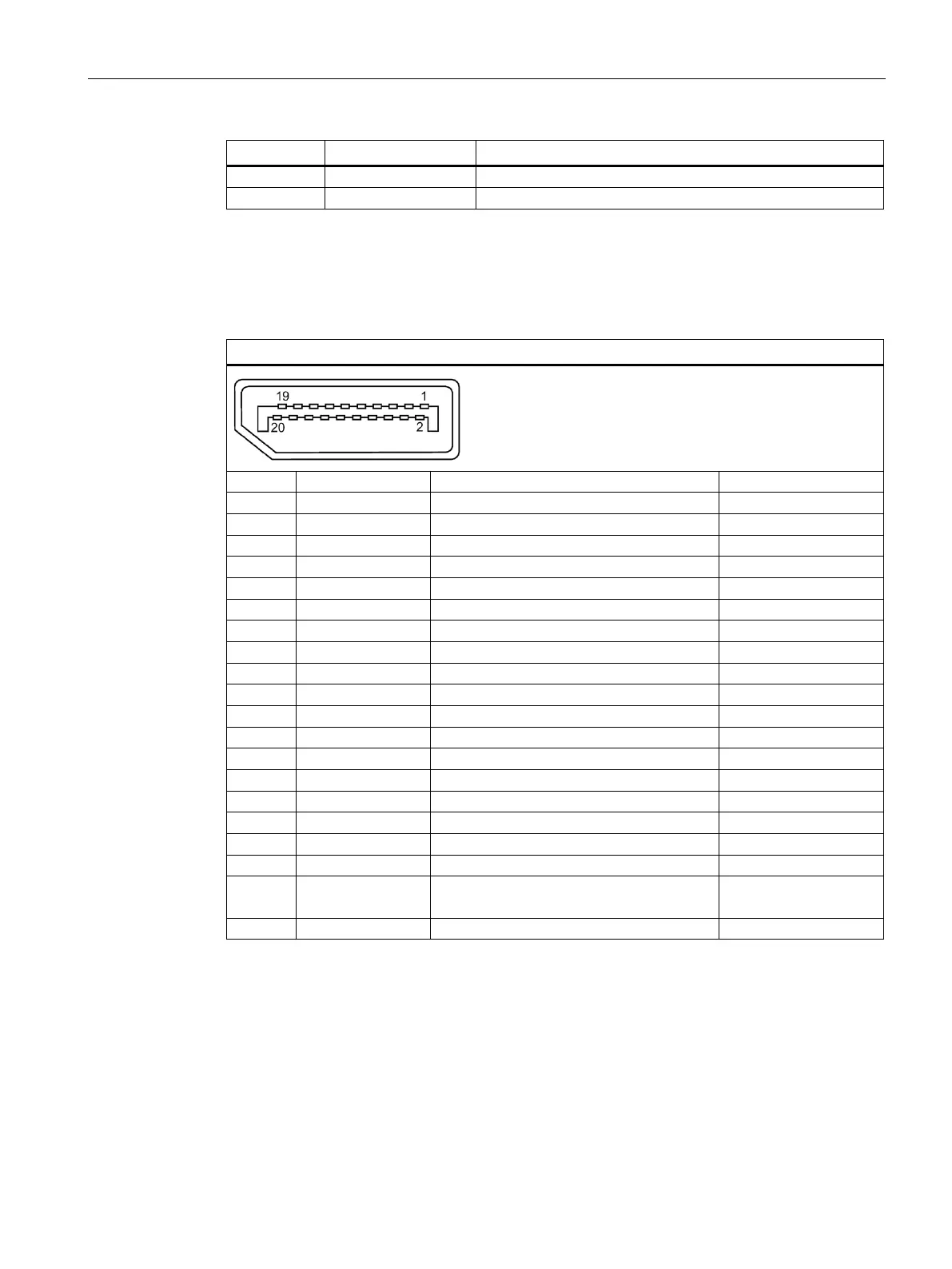

10.5.6 DisplayPort 1.1A
X70
DisplayPort interface
Pin no.
Abbreviation
Function
Input/output
1
Lane 0_P
Lane 0+
Input
2
GND
Ground
-
3
Lane 0_N
Lane 0-
Input
4
Lane 1_P
Lane 1+
Input
5
GND
Ground
-
6
Lane 1_N
Lane 1-
Input
7
8
GND
Ground
-
9
10
11
GND
Ground
-
12
13
CONFIG1
Connected to ground
-
14
CONFIG2
Connected to ground
-
15
AUX CH_P
Auxiliary channel+
Bidirectional
16
GND
Ground
-
17
AUX CH_N
Auxiliary channel-
Bidirectional
18
Hot plug
Hot Plug Detect
output
19
Return
Return for power
Connected to ground
-
20
DP_PWR
Power for connector (3.3 V 500 mA)
power out
