Device maintenance and repair
7.3 Manage onboard RAID system
SIMATIC IPC547G
Operating Instructions, 04/2020, A5E49948632-AA
107
7.3 Manage onboard RAID system
The RAID system is fully set up ex works. The installed SIMATIC diagnostic software is used
to display the status of the RAID system. Additional software is not required. Additional
information is available in the sections "RAID systems (Page 60)" and "Replacing a defective
hard disk drive in the RAID system (Page 94)".
You can configure RAID hardware using <CTRL+I> in the boot phase. The associated
description is available on the "Documentation and Drivers" DVD.

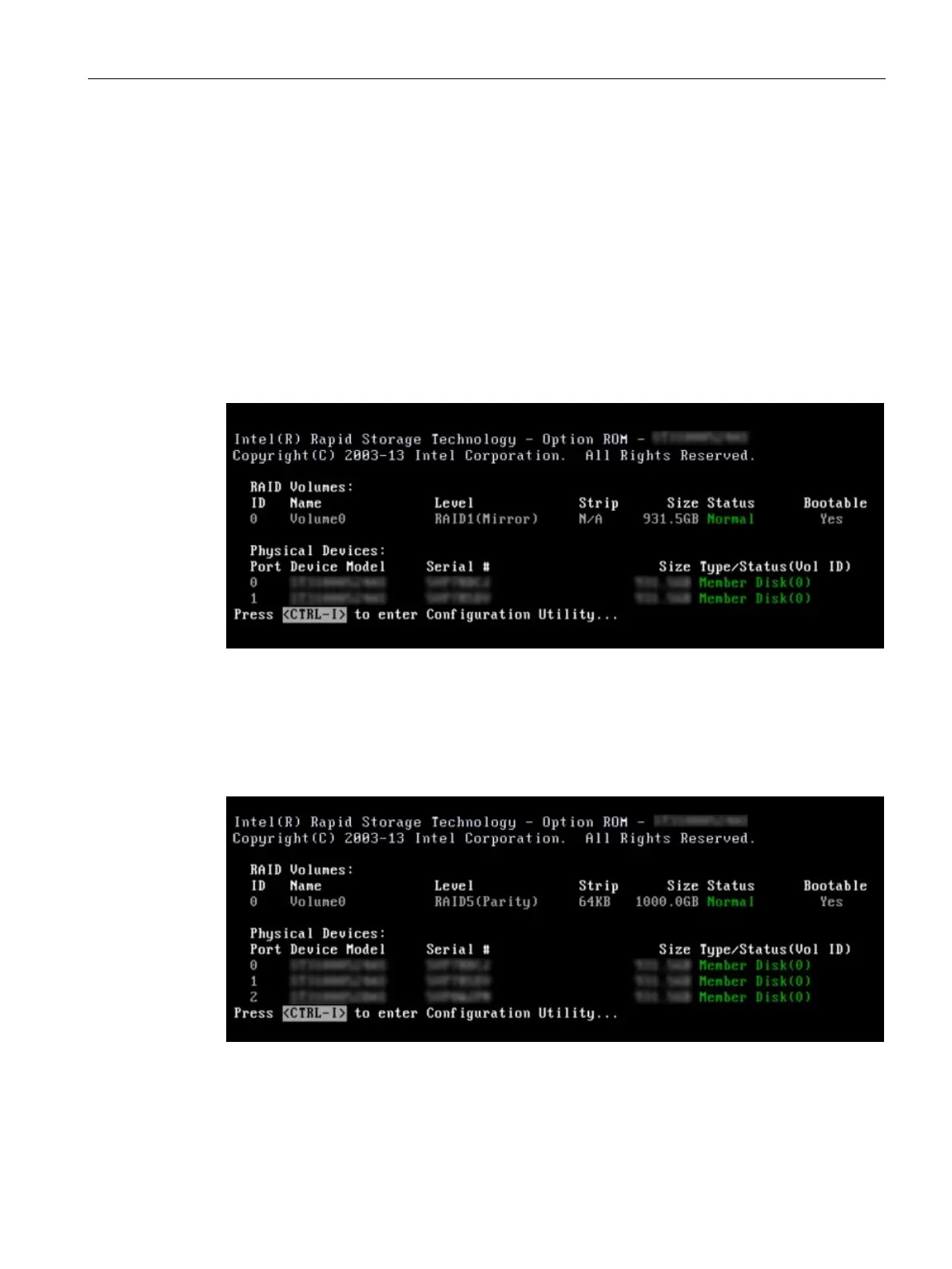

7.3.1 Example for a RAID1 system during the boot phase of the system
You can configure RAID hardware with <CTRL-I> in the boot phase. The associated
description is available on the "Documentation and Drivers" DVD.
7.3.2 Example for a RAID5 system during the boot phase of the system
