4.2 Web server
CP 1604 / CP 1616
52 Operating Instructions, 02/2017, C70000-G8976-C218-08

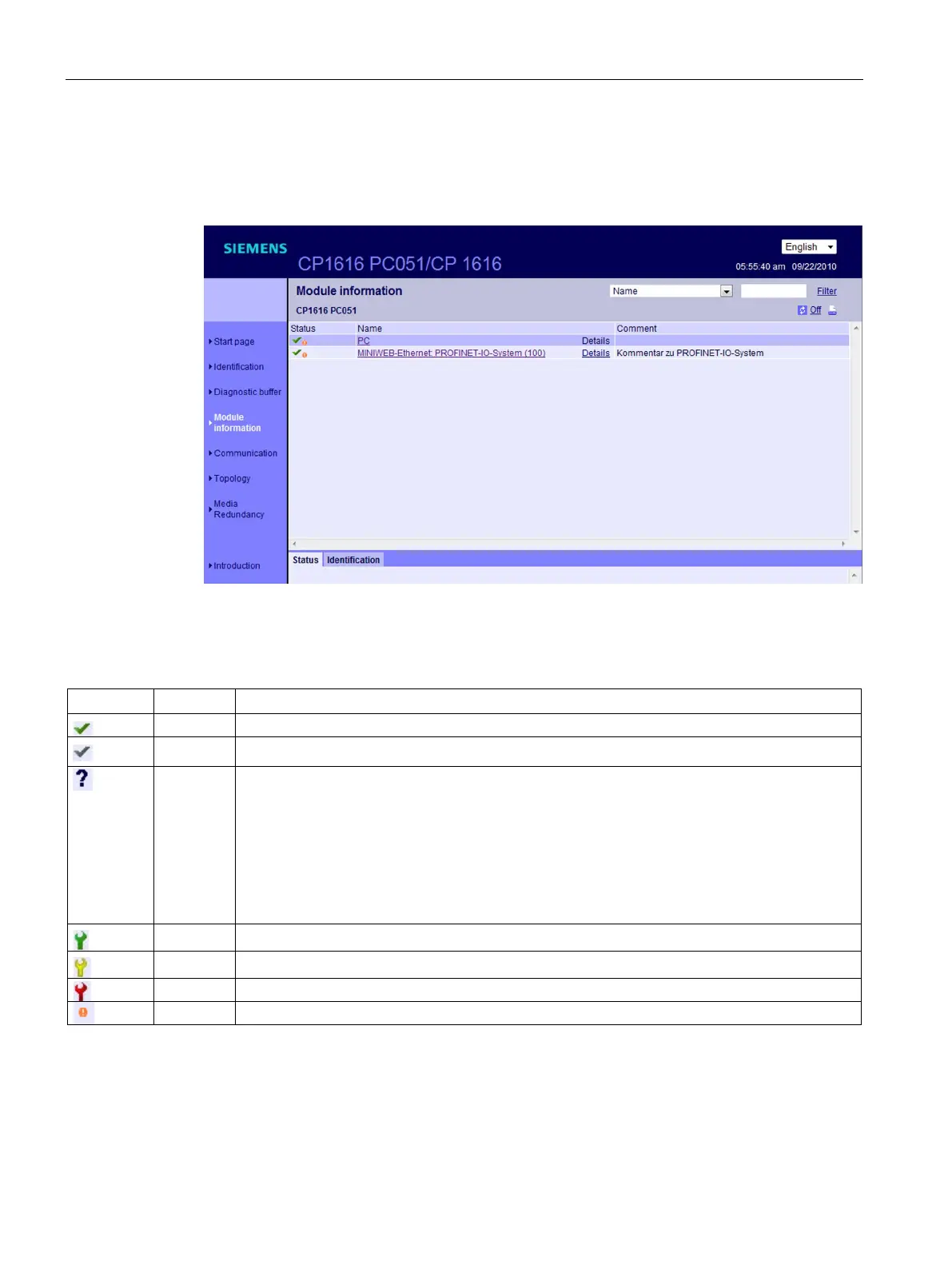

The status of a station is displayed with icons and comments on the "Module information"
Web page.
Figure 4-8 Module information - Station
Meaning of the icons in the "Icon" column.
gray
• Deactivated PROFIBUS slaves or PROFINET devices
black Component cannot be reached / status not available
• "Status not available" is always displayed when the CP 1616 is in STOP or during start up
evaluation by "Report system error" for all configured I/O modules and I/O systems after re-
starting the CP 1616.
• This status can, however, also be displayed temporarily for all modules during operation if
there is a flood of diagnostic interrupts.
• No status can be obtained for modules of a subsystem connected to a CP.
green Maintenance required
yellow Maintenance demanded
Fault - component failed or faulty
Fault at a lower module level
