Product overview
2.2 Operator controls and display elements
I/O device digital inputs DI 16x24VDC M12-L 8xM12 (6ES7141-6BH00-0BB0)
12 Equipment Manual, 06/2021, A5E46570510-AB
2.2 Operator controls and display elements

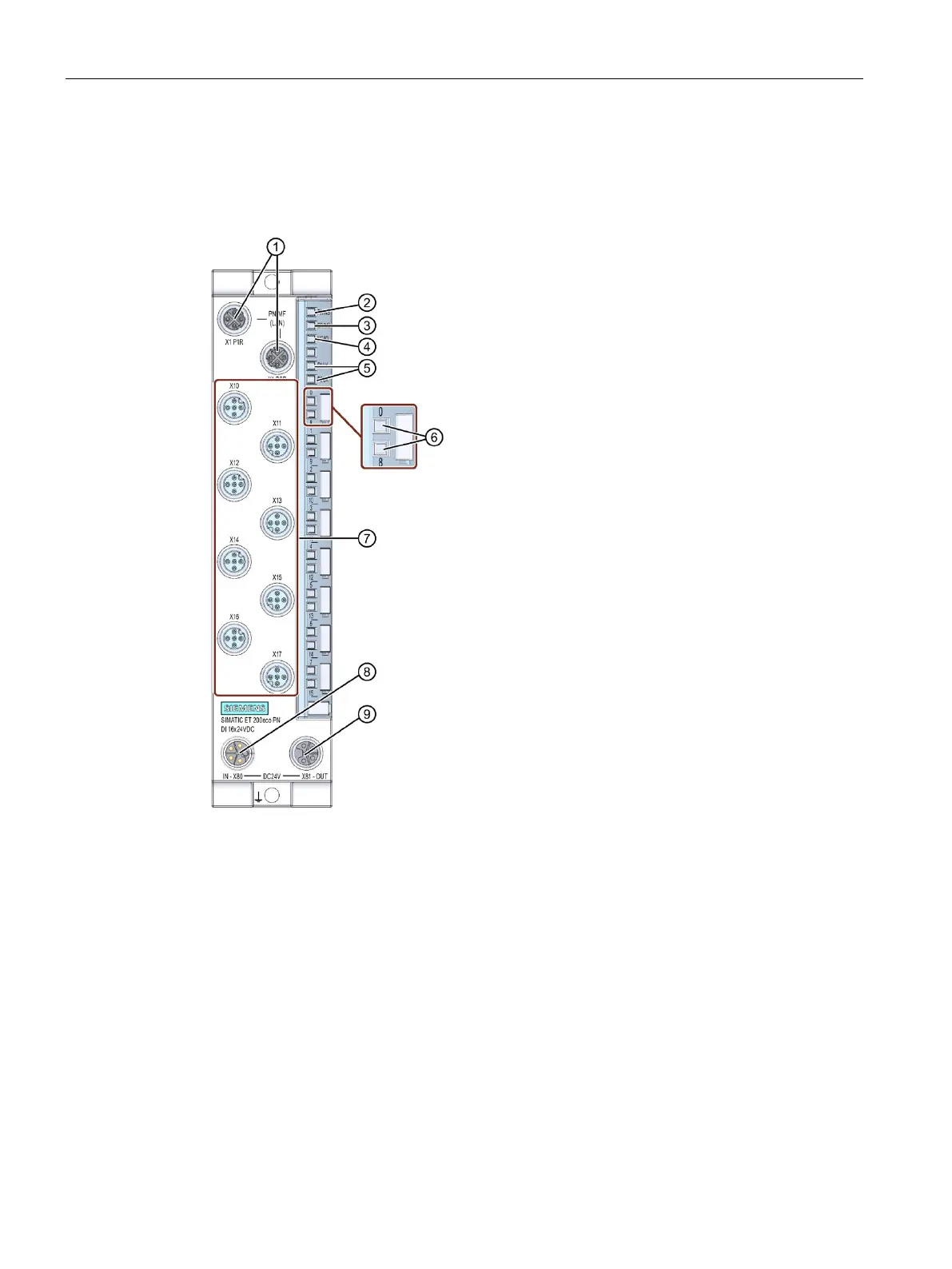

The figure below shows the operator controls and display elements of the
DI 16x24VDC M12-L 8xM12 I/O device.
PN/MF (LAN): Sockets for connecting PROFINET
RN/NS: RUN/network status LED
ER/MS: ERROR/module status LED
MT/IO: MAINT/IO status LED
P1 LK/P2 LK: LINK port status LEDs
LED displays 0 to 15 for channel status/channel error
X10 to X17: Sockets for the input signal
X80: Connector for infeed of supply and load voltage
X81: Socket for loop-through of the supply and load voltage
Figure 2-2 Operator controls and display elements
