I/O device digital inputs DI 16x24VDC M12-L 8xM12 (6ES7141-6BH00-0BB0)
Equipment Manual, 06/2021, A5E46570510-AB
35
Dimension drawing
A
A.1 Dimension drawing

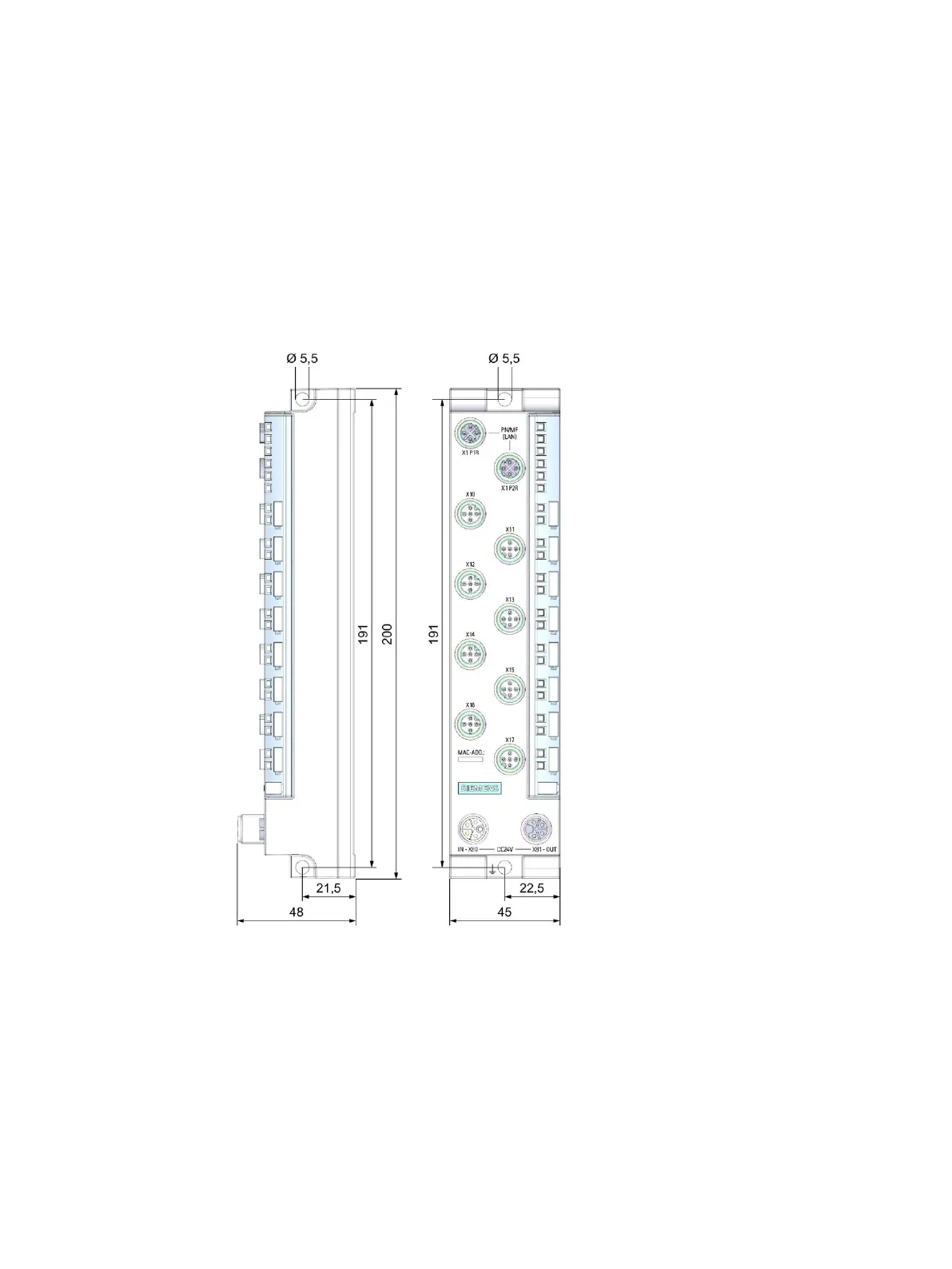

The figure below shows the dimension drawing of the I/O device digital inputs
DI 16x24VDC M12-L 8xM12 in front and side views.
Figure A-1 Dimension drawing
