Siemens SIMATIC Equipment Manual

I/O device digital inputs DI 16x24VDC M12-L 8xM12 (6ES7141-6BH00-0BB0)
Equipment Manual, 06/2021, A5E46570510-AB
23
Interrupts/diagnostics alarms
5
5.1 Status and error displays
LED displays

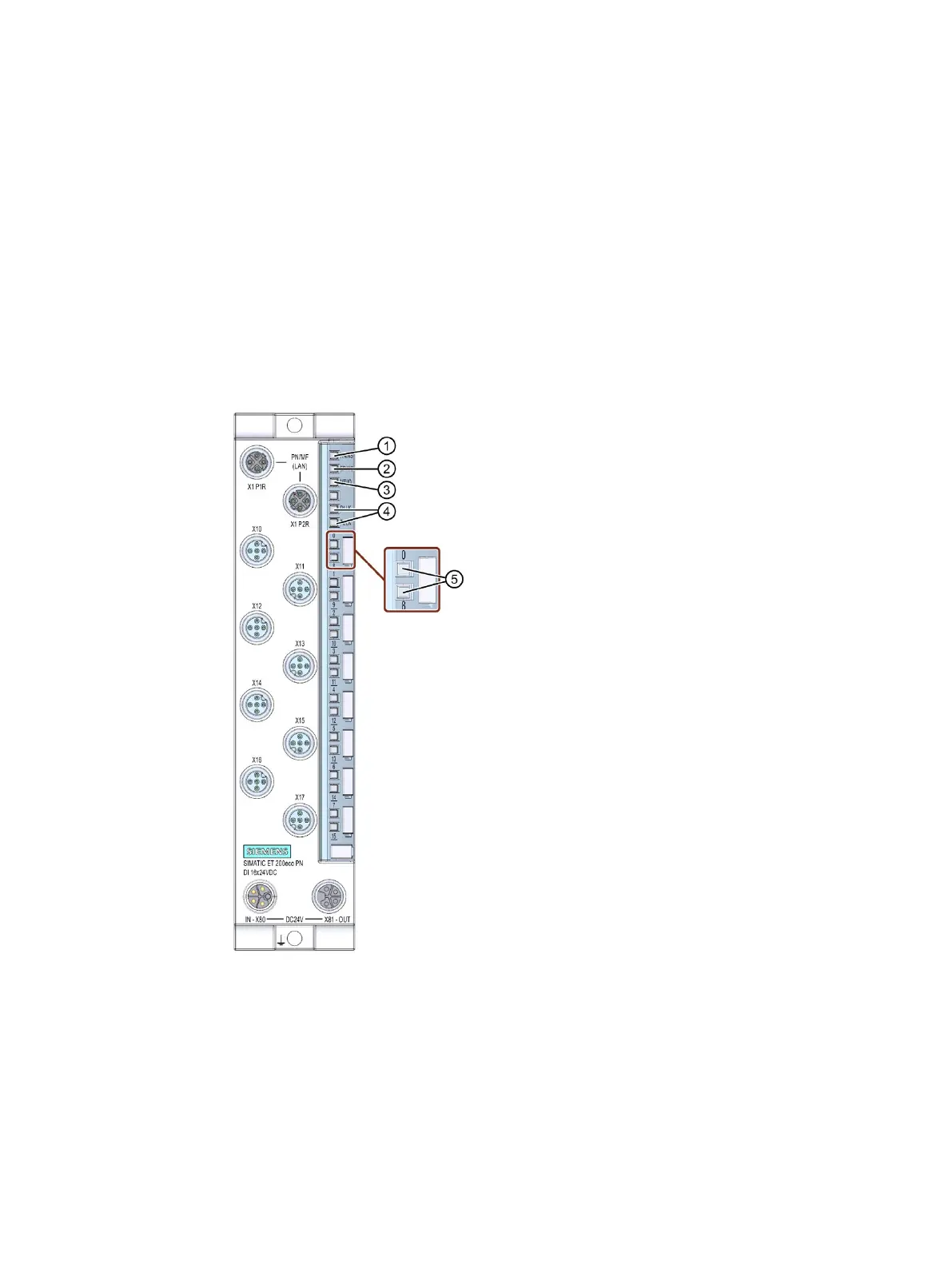

The figure below shows the LED displays (status and error displays) of the I/O device
DI 16x24VDC M12-L 8xM12.
①
RN/NS: RUN/network status LED (green)
②
ER/MS: ERROR/module status LED (red)
③
MT/IO: MAINT/IO status LED (yellow)
④
P1 LK/P2 LK: LINK port status LEDs (green)
⑤
LED displays 0 to 15 for channel status/channel error (green/red)
Figure 5-1 LED displays
