1.2 - EQUIPMENT IDENTIFICATION

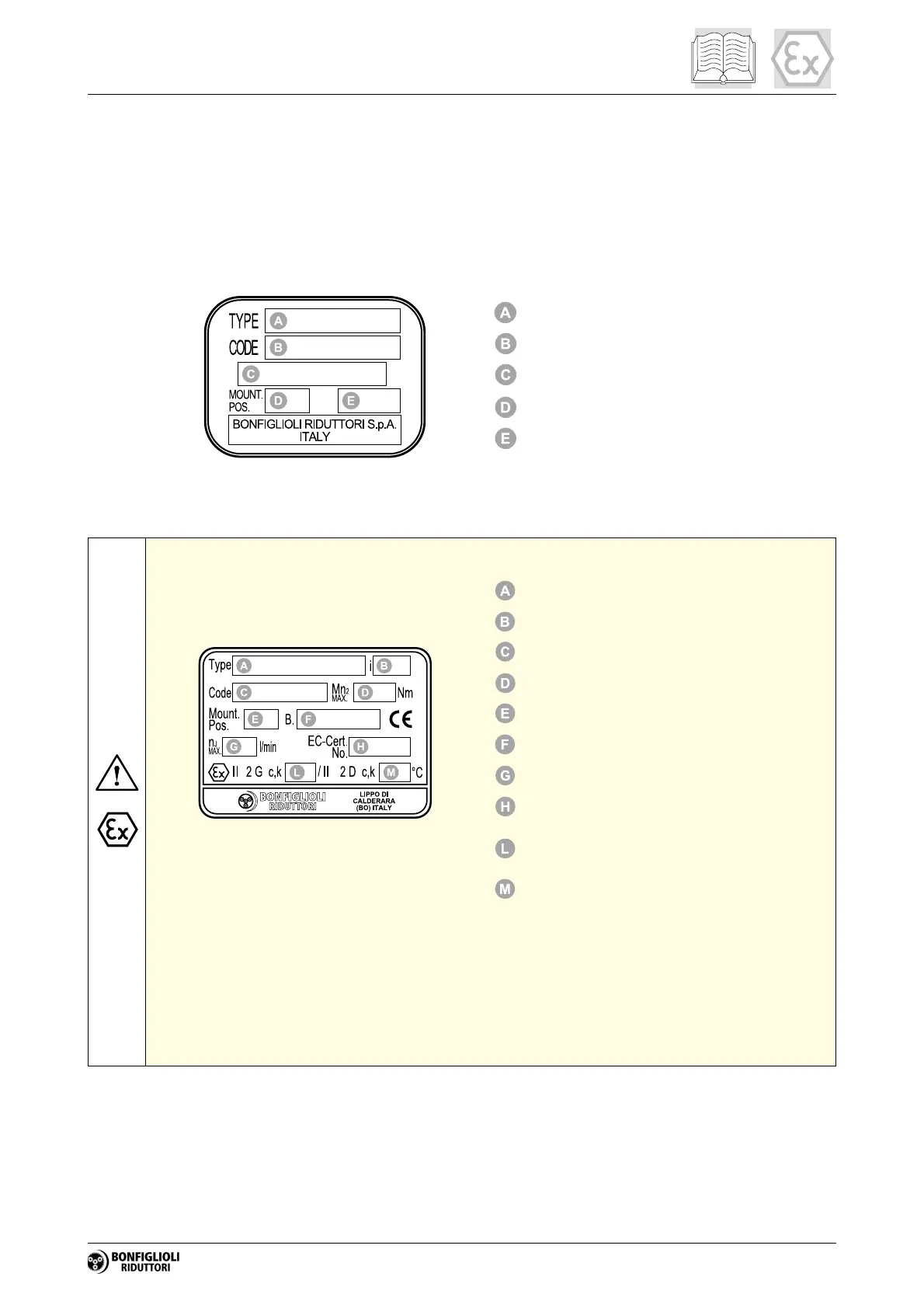

The gear unit bears the following nameplate. The nameplate bears all references and indispensable safety
instructions. The gear unit’s identifying code is explained in the Sales Catalogue.
If the gear unit is supplied complete with electric motor (gearmotor), all information regarding the motor itself
is supplied in the motor manual.
Gear unit type.
Product code.
Month / Year of manufacture.
Mounting position.
Gear ratio.
Nameplate for ATEX-specified gear units:
Gear unit type.
Gear ratio.
Product code.
Transmissible torque at n
1
=1400 rpm [Nm].
Mounting position.
Month / Year of manufacture.
Maximum drive speed.
Certification Nr.
Temperature class, or maximum surface
temperature.
Maximum surface temperature.
CE - Mark
•
Environmental limits (ambient temperature range between - 20°C and + 40°C).
•
Maximum surface temperature: temperature class T4 for 2G and 130°C for 2D.
Some types of gear unit, shown in the catalogue, are exceptions to this rule and are marked
temperature class T3 for 2G or 160°C for 2G and 2D.
•
Certifying agency with whom the technical file has been deposited.
Readability of the nameplate
The nameplate and the information thereon must be readable at all times and consequently cleaned from
time to time.
Should the nameplate wear and/or become damaged so as to affect its readability or that of even one of the
items of information thereon, the User must request a new nameplate from the Manufacturer, quoting the in
-
formation given in this manual, and replace the old one.
