Siemens SIMOTION D45 Series - 3 Interfaces; Interface Overview; Table 3-1 Overview of Available External Interfaces; Table 3-2 Overview of Interfaces that Cannot be Used for SIMOTION D

D4x5
Manual, 03/2007 Edition
33
Interfaces
3
3.1 Interface overview
This section describes the interfaces of the SIMOTION D4x5.
Available interfaces
Table 3-1 Overview of available external interfaces
Interface Name Connector type
DRIVE-CLiQ interface (0) X100 DRIVE-CLiQ plug
DRIVE-CLiQ interface (1) X101 DRIVE-CLiQ plug
DRIVE-CLiQ interface (2) X102 DRIVE-CLiQ plug
DRIVE-CLiQ interface (3) X103 DRIVE-CLiQ plug
DRIVE-CLiQ interface (4) X104 (D445 only) DRIVE-CLiQ plug
DRIVE-CLiQ interface (5) X105 (D445 only) DRIVE-CLiQ plug
Ethernet interface IE1/OP X120 RJ45 socket
Ethernet interface IE2/NET X130 RJ45 socket
Digital inputs/outputs X122, X132 Micro Combicon 2x12-pin
Power supply connector X124 Combicon 4-pin
PROFIBUS DP1 interface X126 9-pin SUB-D socket
PROFIBUS DP2/MPI interface X136 9-pin SUB-D socket
Measuring sockets (T0, T1, T2, and M) X131 - X134 Sockets on the circuit board

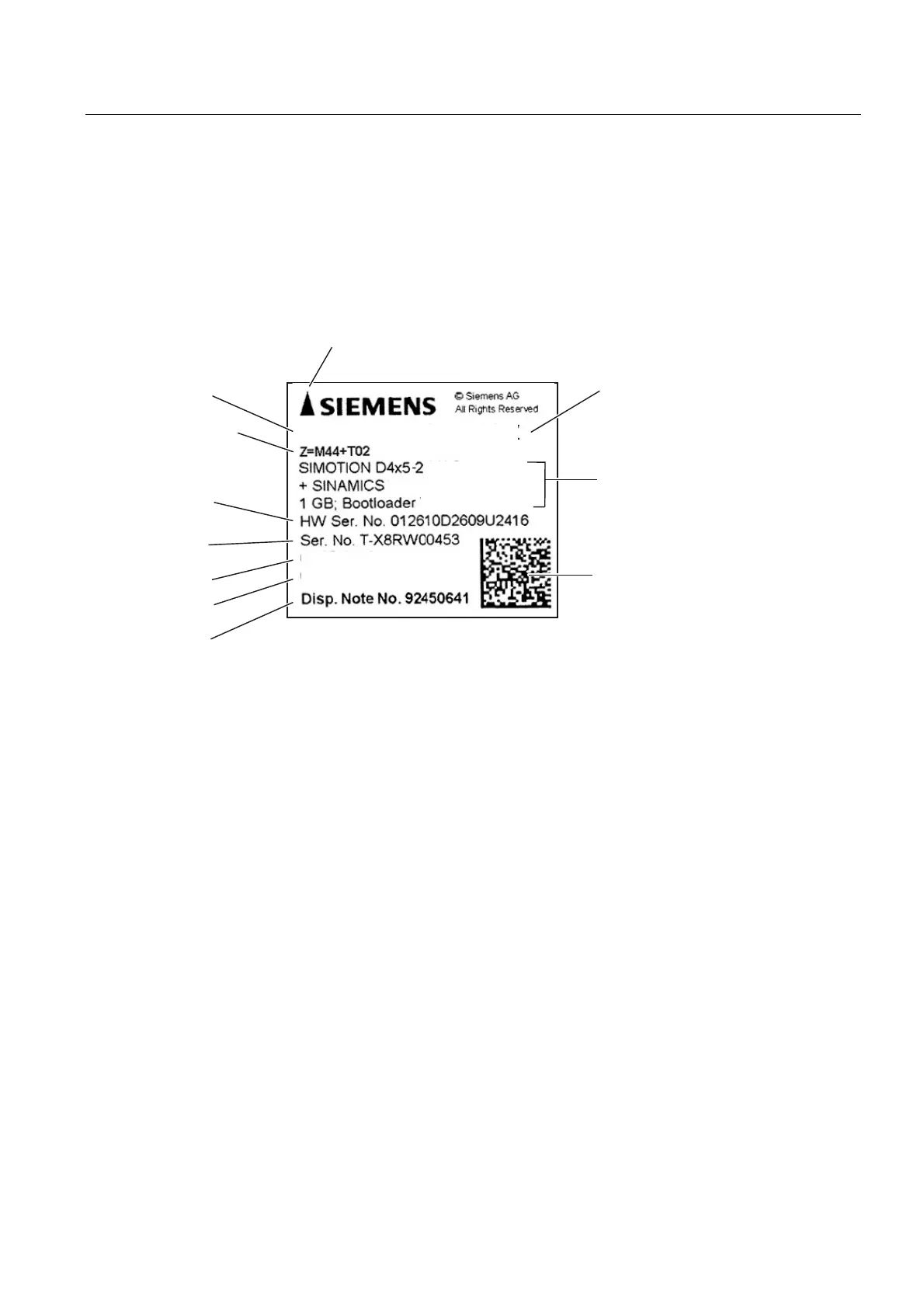

SIMOTION CF plug-in X109 SIMOTION CF
Fan/battery module interface X190 Fan/battery module
Non-usable interfaces
Table 3-2 Overview of interfaces that cannot be used for SIMOTION D
Interface name Interface Connector type
1st USB interface X125 USB socket
2nd USB interface X135 USB socket
RS232 interface X140 9-pin SUB-D pins
3rd Ethernet interface X127 RJ45 socket
