Interfaces
3.4 PROFINET IO interface (only for SIMOTION D4x5-2 DP/PN)
SIMOTION D4x5-2
Manual, 02/2012
55
3.4 PROFINET IO interface (only for SIMOTION D4x5-2 DP/PN)
PROFINET is an open component-based industrial communication system using Ethernet
for distributed automation systems.
SIMOTION D4x5-2 DP/PN has a PROFINET interface with three ports (X150 P1-P3)
onboard. The PROFINET interface supports operation of a SIMOTION D4x5-2 DP/PN as an
IO controller and/or as an I device.
Interface position
The following figure contains information on the PROFINET interface of the control unit.
Position of the interface, labeling of the ports and the associated displays are described.
'LVSOD\
6WDWXV
JUHHQ
2II
\HOORZ
2II
0HDQLQJ
7UDQVIHUUDWHRUb0ELWV
1RRUIDXOW\FRQQHFWLRQ
'DWDH[FKDQJH
1RGDWDH[FKDQJH
'LVSOD\ 'LVSOD\
6WDWXVRIWKHLQWHUIDFH31
6\QFKURQL]DWLRQVWDWXVRIWKHLQWHUIDFH6<
/('GLVSOD\VIRUWKHVWDWXVRILQWHUIDFH;
/,1.
$&7
;3
$&7
/,1.
;3
;3



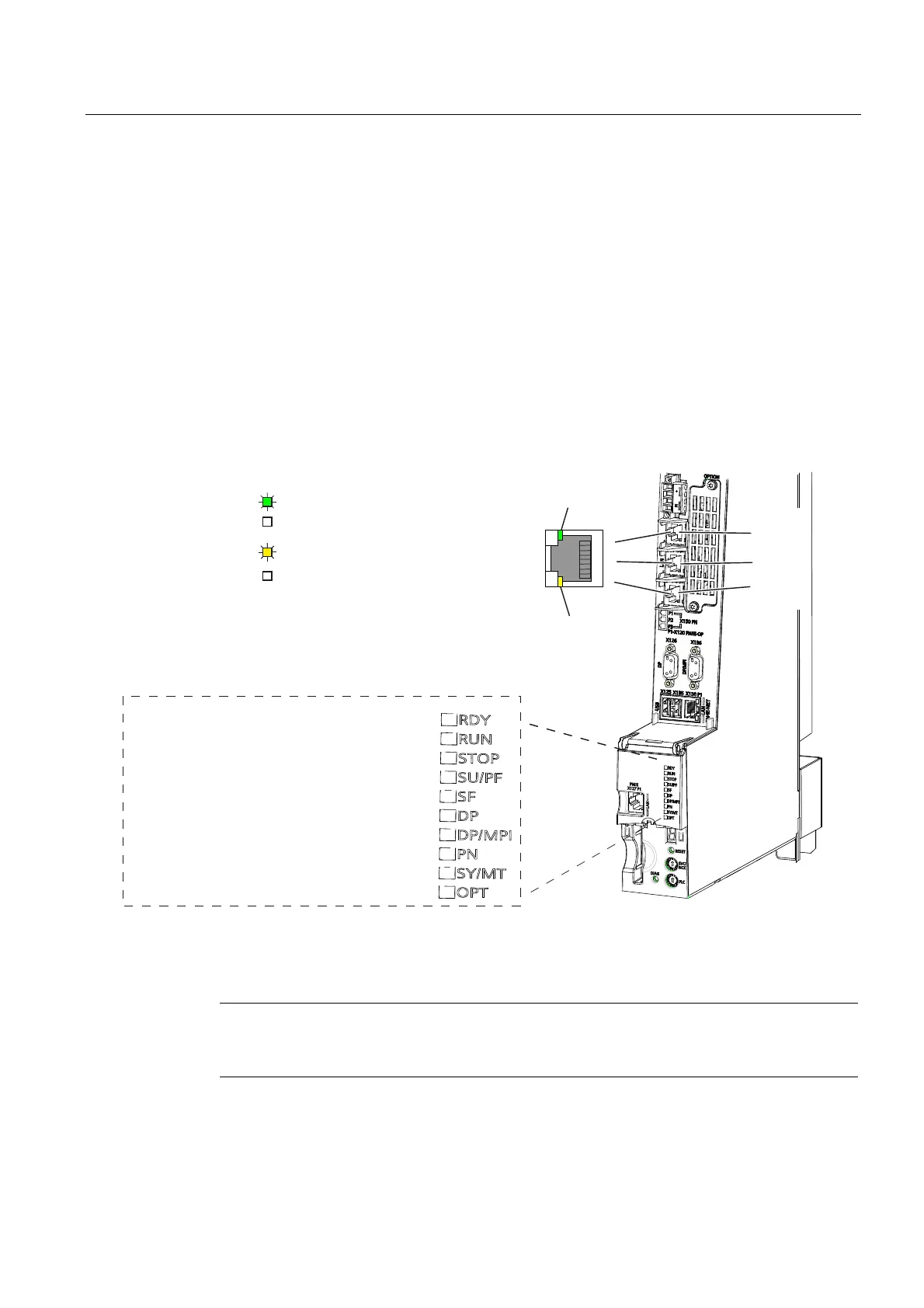

Figure 3-4 The position of the PROFINET X150 P1 to P3 interfaces and their displays (SIMOTION D445-2 DP/PN)
Note
The 3rd port of the PROFINET IO interface X150 P3 is also designated as X120 PN/IE OP.
This designation is not relevant for SIMOTION D.
