Supplementary system components
6.2 Fan/battery module
SIMOTION D4x5-2
Manual, 02/2012
95
6.2.2 Installing the fan/battery module
Overview
The procedure for installing the double fan/battery module is described below.
Procedure
There are cutouts on the lower side of the control unit to attach the module. Proceed as
follows to install the double fan/battery module:
1. If required, insert a battery in the double fan/battery module.
2. Hold the double fan/battery module at an angle to the front with the open side facing up.
The battery must be visible.
3. Push the plastic lug into the slot-like cutout on the lower side of the control unit.
4. Tilt the double fan/battery module up until the two latches snap into place at the front.
Note the two contact strips that are lead through cutouts of the control unit.
This establishes the electrical connection between the double fan/battery module and the
control unit.
&RQWDFWVWULS
3ODVWLFOXJ
*XLGHOXJV
'RXEOHIDQEDWWHU\
PRGXOH
/DWFK
'RXEOHIDQEDWWHU\
PRGXOHPRXQWHG

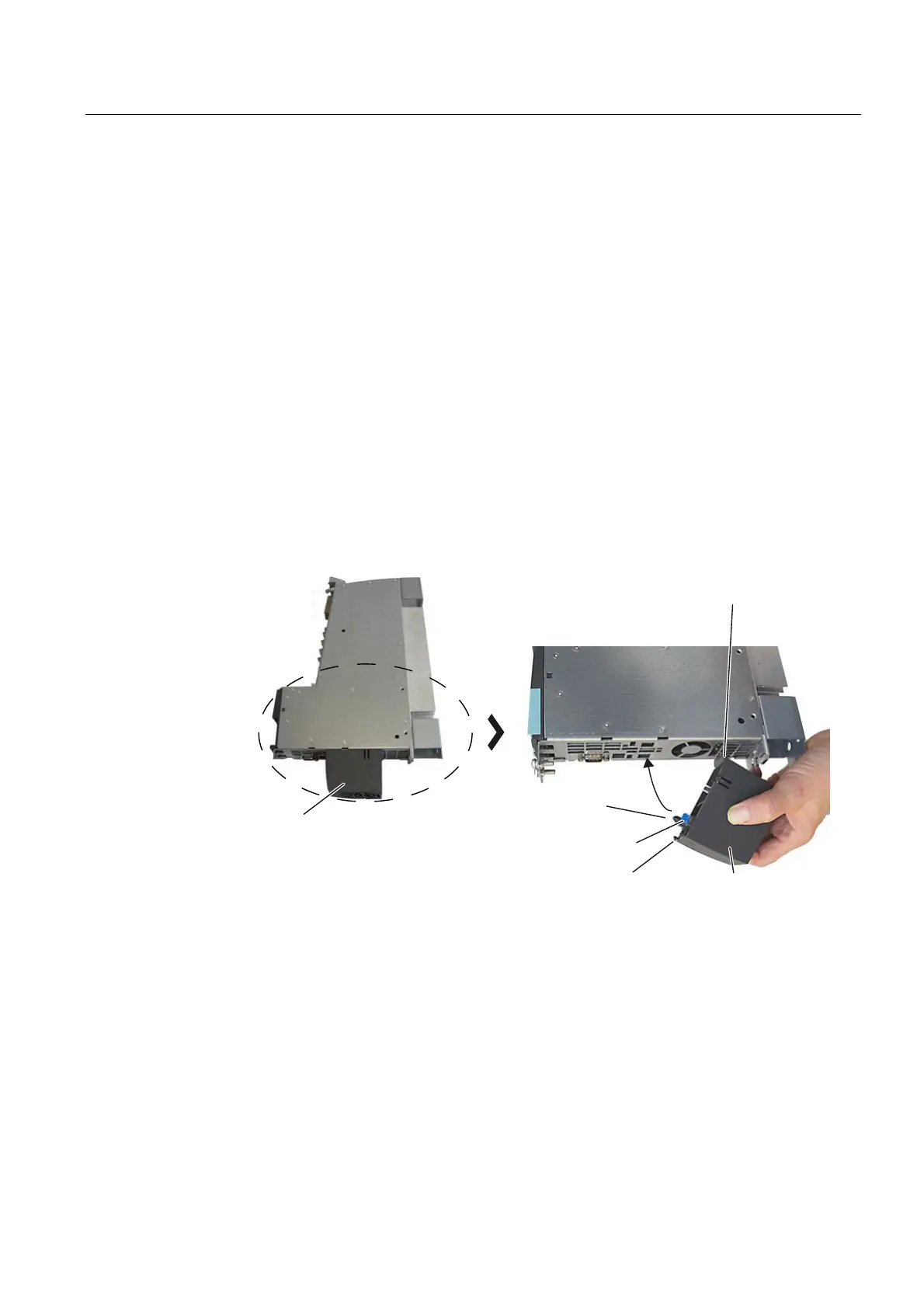

Figure 6-2 Installing the double fan/battery module
