5 Functional Mechanisms of this Application
5.1 Functionality of process data exchange
SINAMICS G120 DP at S7-1200
Entry-ID: 70155469, V1.4, 07/2018
34
 Siemens AG 2018 All rights reserved
5.1.5 FB 11 “Process_Data”
This FB shows the access to the process data with the use of the “DPRD_DAT” /
“DPWR_DAT” instructions. It is called up cyclically in OB1.

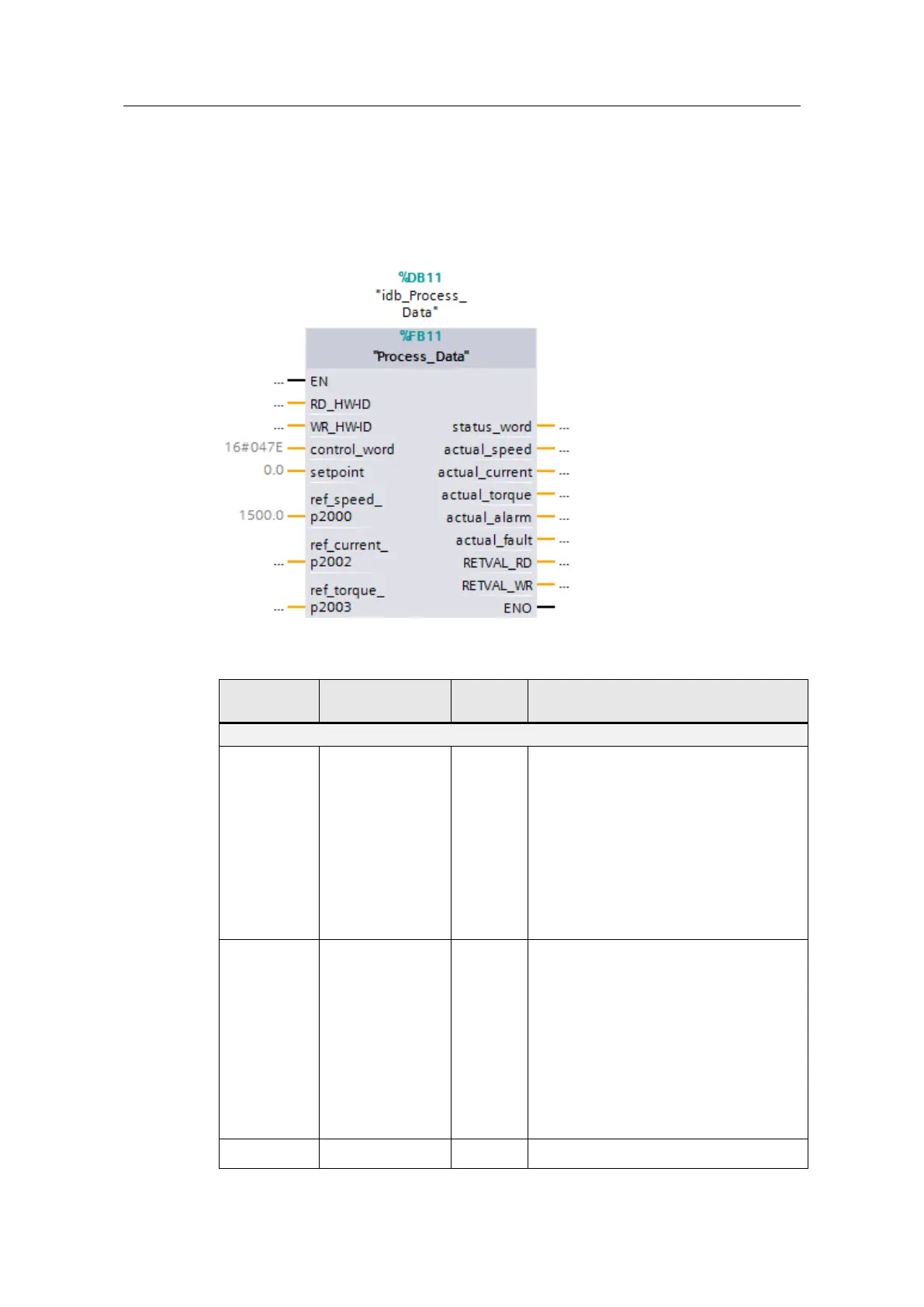

Figure 5-5: FB “Process_Data”
Table 5-1: Interface of the “Process_Data” FB
Parameter
Data type
Start
value
Description
Input parameters
RD_HW-ID
HW_SUBMODULE
-
Decisive hardware identifier for reading
data from a DP standard slave /PROFINET
IO device.
When selecting the frame type in the
properties of the SINAMICS drive in the
TIA Portal, STEP 7 creates a system
constant which corresponds to this
identifier. Enter this system constant here.
It is symbolically displayed to you in the
dropdown list when entering the
parameters.
WR_HW-ID
HW_SUBMODULE
-
Decisive hardware identifier for writing data
to a DP standard slave /PROFINET IO
device.
When selecting the frame type in the
properties of the SINAMICS drive in the
TIA Portal, STEP 7 creates a system
constant which corresponds to this
identifier. Enter this system constant here.
It is symbolically displayed to you in the
dropdown list when entering the
parameters.
control_word
Word
16#047E
Control word of SINAMICS G120

Siemens SINAMICS G120C DP Specifications

General

Protection Rating	IP20
Frequency Range	0 to 650 Hz
Control Modes	V/f, sensorless vector control
Communication Interfaces	PROFIBUS DP
Ambient Temperature	-10 to +50 °C (without derating), -10 to +60 °C (with derating)
Overload Capacity	150 % rated current for 60 s, 200 % rated current for 3 s
Storage Temperature	-40 to +70 °C
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Output Voltage	0 V to Supply Voltage
