Siemens SINUMERIK 808D ADVANCED T User Manual

PLC Subroutines Manual
6FC5397-0FP40-0BA0, 08/2013
49
Table 3-20 Outputs
Name
Type
Description
Finish BOOL Part program selection finished
Error BOOL Part program selection error
Assigned global variables
SelPP_FinOm BOOL M239.6 Indicates that a part program has been selected
SelPP_ErrOm BOOL M239.7 Indicates that an error occurs when selecting a part program
Relevant PLC machine data
None

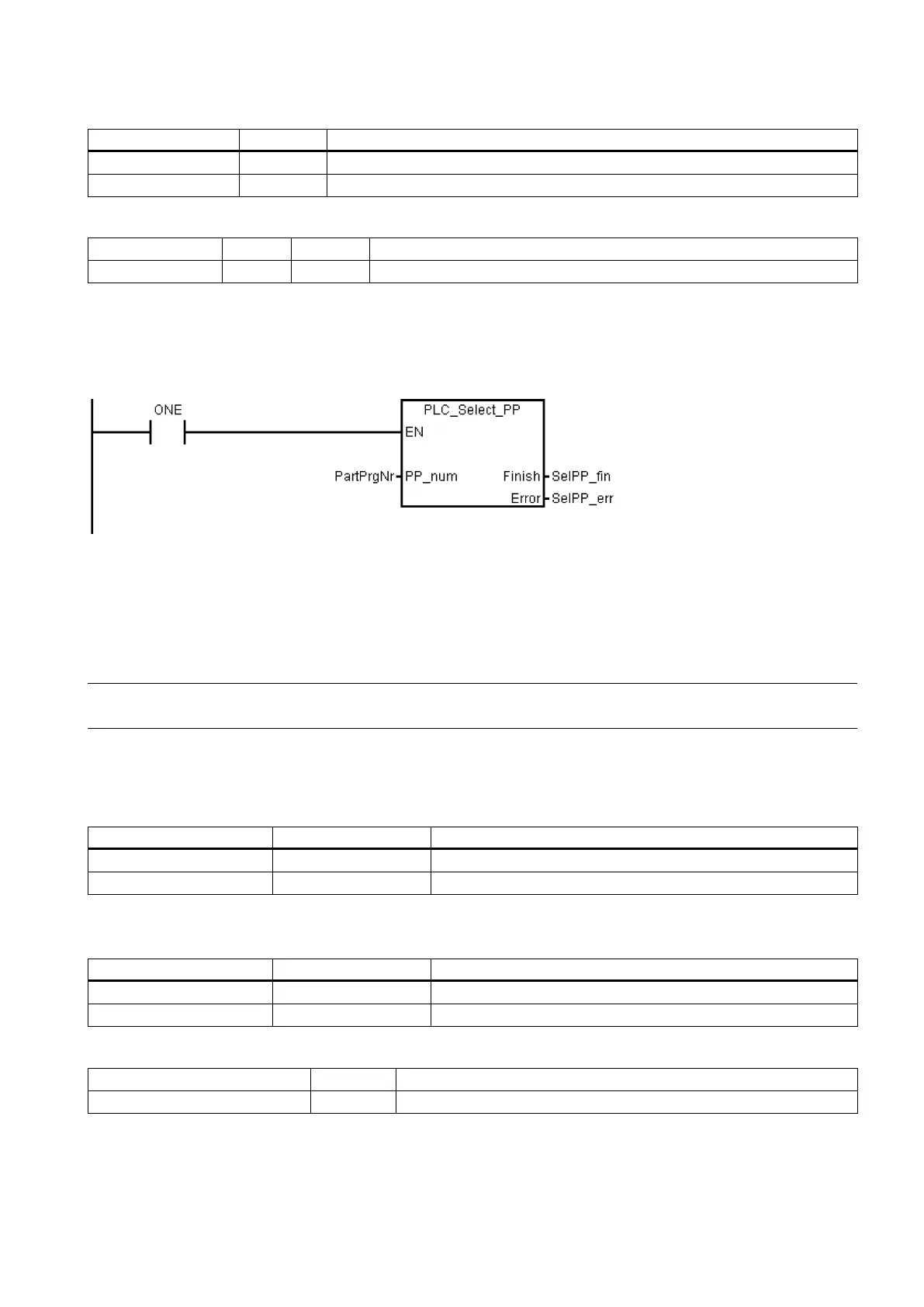

Example for calling subroutine 47
3.21
Subroutine 48 - ServPlan (service plan)
Purpose
To use subroutine 48, you must have created a service plan on the SINUMERIK 808D ADVANCED. When the pre-alarm
time arrives, the machine outputs a notification message. When the final alarm time arrives, the machine outputs an alarm
message.
Note
To perform a service plan on the PLC, you need to download DB9903(SP_INI) and DB9904(SP_ACT).
Local variable definition
Table 3-21 Inputs
Name
Type
Description
Deact0 BOOL Freezing a service plan
AckMsg0 BOOL Confirming the notification message of a service plan
Table 3-22 Outputs
Name
Type
Description
HintMsg0 BOOL Notification message
Alarm0 BOOL Alarm message
Assigned global variables
ServPlan_msg0 BOOL Notification message of the first service plan
ServPlan_alm0 BOOL Alarm message of the first service plan
