Siemens SIRIUS Configuration Manual

Selection tables 400 V AC
3.3 Circuit breaker + contactor + 3RB3 solid-state overload relay
Configuring SIRIUS Innovations
Configuration Manual, 04/2010, A8E56203880102-02
31

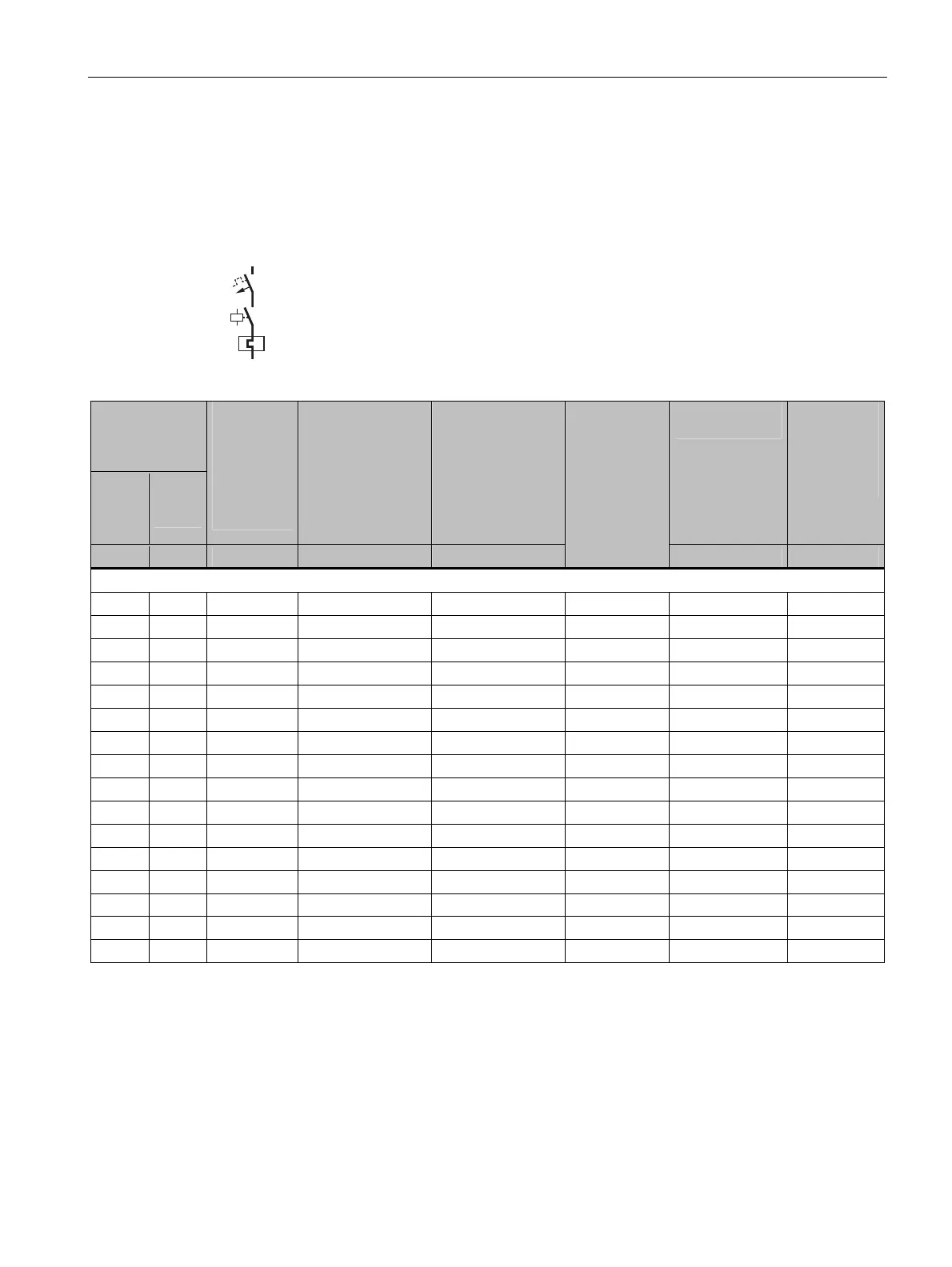

3.3 Circuit breaker + contactor + 3RB3 solid-state overload relay
Type of coordination 1,
short-circuit breaking capacity
I
q
= 150 kA
$
&9
Standard three-
phase motor
4-pole at
400 V AC
1)
Stan-
dard
output
P
Motor
current
I
Setting
range
Overload
release
Motor
starter
protector
Motor starter
protector
Starter protection
Contactor
2)
Overload relay
(solid-state)
Setting range
Overload
release
Overload
relay
kW A Order No. Order No. Order No.
Size
Order No. A
CLASS 10
0,06 0,2 None 3RV2311-0CC10 3RT2015-1AP01 S00/S00/S00 3RB3016-1RB0 0,1 ... 0,4
0,09 0,3 None 3RV2311-0DC10 3RT2015-1AP01 S00/S00/S00 3RB3016-1RB0 0,1 ... 0,4
0,12 0,4 None 3RV2311-0HC10 3RT2015-1AP01 S00/S00/S00 3RB3016-1NB0 0,32 ... 1,25
0,18 0,6 None 3RV2311-0JC10 3RT2015-1AP01 S00/S00/S00 3RB3016-1NB0 0,32 ... 1,25
0,25 0,85 None 3RV2311-0KC10 3RT2015-1AP01 S00/S00/S00 3RB3016-1NB0 0,32 ... 1,25
0,37 1,1 None 3RV2311-1AC10 3RT2015-1AP01 S00/S00/S00 3RB3016-1PB0 1 ... 4
0,55 1,5 None 3RV2311-1BC10 3RT2015-1AP01 S00/S00/S00 3RB3016-1PB0 1 ... 4
0,75 1,9 None 3RV2311-1BC10 3RT2015-1AP01 S00/S00/S00 3RB3016-1PB0 1 ... 4
1,1 2,7 None 3RV2311-1DC10 3RT2015-1AP01 S00/S00/S00 3RB3016-1PB0 1 ... 4
1,5 3,5 None 3RV2311-1EC10 3RT2015-1AP01 S00/S00/S00 3RB3016-1SB0 3 ... 12
2,2 5 None 3RV2311-1GC10 3RT2015-1AP01 S00/S00/S00 3RB3016-1SB0 3 ... 12
3 6,5 None 3RV2311-1HC10 3RT2015-1AP01 S00/S00/S00 3RB3016-1SB0 3 ... 12
4 8,5 None 3RV2311-1JC10 3RT2016-1AP01 S00/S00/S00 3RB3016-1TB0 4 ... 16
5,5 11,5 None 3RV2311-4AC10 3RT2024-1AP00 S00/S0/S0 3RB3026-1QB0 6 ... 25
7,5 15,5 None 3RV2321-4BC10 3RT2025-1AP00 S0/S0/S0 3RB3026-1QB0 6 ... 25
11 22 None 3RV2321-4EC10 3RT2027-1AP00 S0/S0/S0 3RB3026-1VE0 10 ... 40
Order numbers for basic versions with screw terminals and spring-loaded terminals also possible. 3RA2921-1BA00 link
module can only be used with screw terminals.
1)
Guide value for 4-pole standard motors at 400 V AC, 50 Hz. Selection depends on the concrete startup and rated data
of the protected motor.
2)
Rated control supply voltage 230 V AC, 50 Hz, other control voltages possible.
