Selection tables 400 V AC
3.10 Motor starter protector + 3RW40 soft starter
Configuring SIRIUS Innovations
48 Configuration Manual, 04/2010, A8E56203880102-02

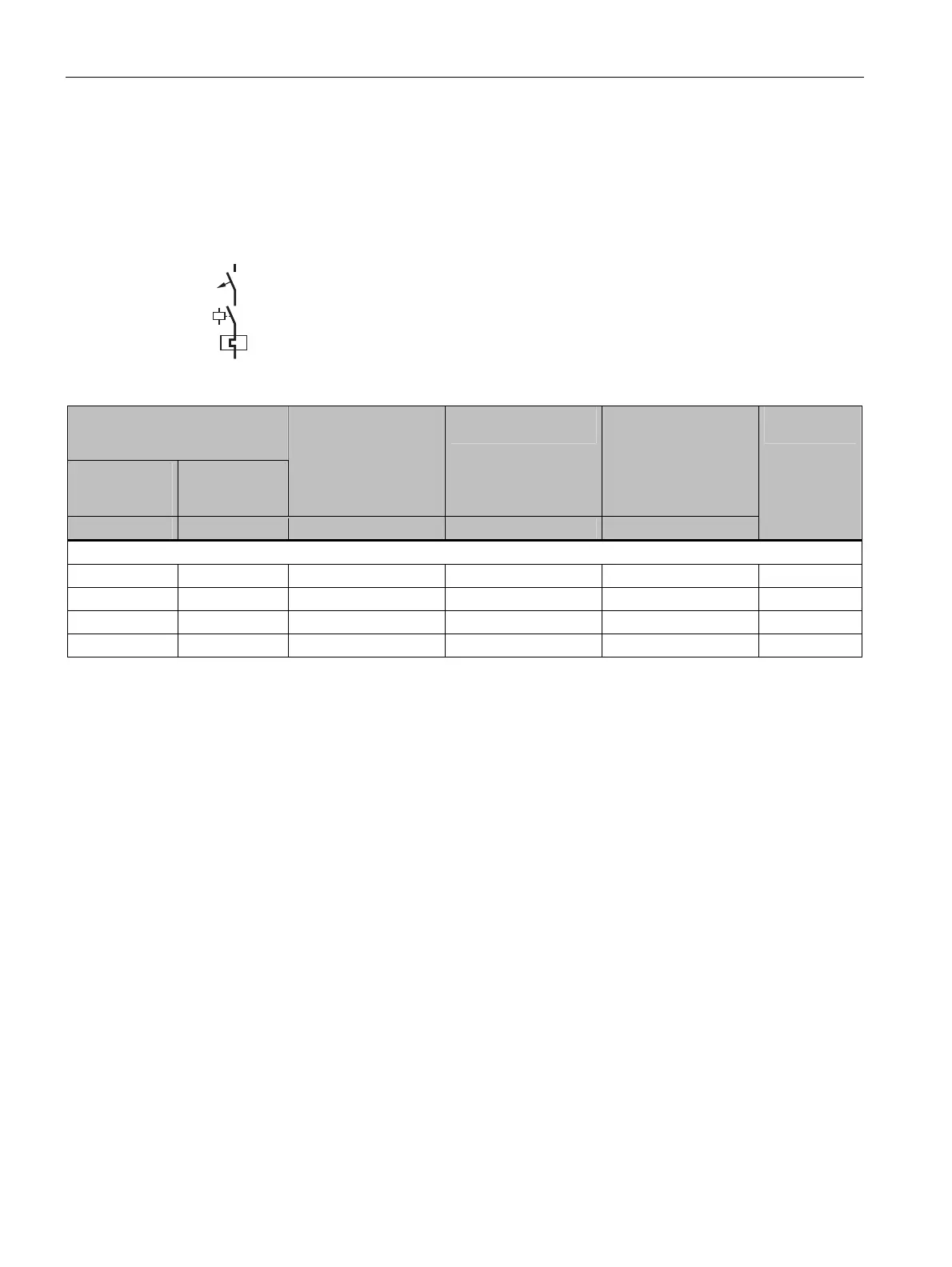

3.10 Motor starter protector + 3RW40 soft starter
CLASS 10, type of coordination 1,
short-circuit breaking capacity
I
q
= 55 kA
&9
Standard three-phase motor
4-pole at
400 V AC
1)
Standard
output
P
Motor current
I
Setting range
Overload release
Motor starter protector
Motor starter protector
Motor protection
2)
Soft starter
kW A A Order No. Order No.
Size
MSP / 3RW40
Short-circuit breaking capacity I
q
= 55 kA
7,5 15,5 11 ... 16 3RV2011-4AA10 3RW4024-1BB14 S00/S0
11 22 20 ... 25 3RV2021-4DA10 3RW4026-1BB14 S0/S0
15 29 27 ... 32 3RV2021-4EA10 3RW4027-1BB14 S0/S0
18,5
3)
35 34 ... 40 3RV2021-4FA10 3RW4028-1BB14 S0/S0
Order numbers for basic versions with screw terminals and spring-loaded terminals also possible. 3RA2921-1BA00 link
module can only be used with screw terminals.
1)
Guide value for 4-pole standard motors at 400 V AC, 50 Hz. Selection depends on the concrete startup and rated data
of the protected motor.
2)
Rated currents taken into account at 40 °C ambient temperature. Rated control supply voltage 230 V AC, 50 Hz. Other
control voltages are also possible.
3)
Discrete mounting only, without a link module.
