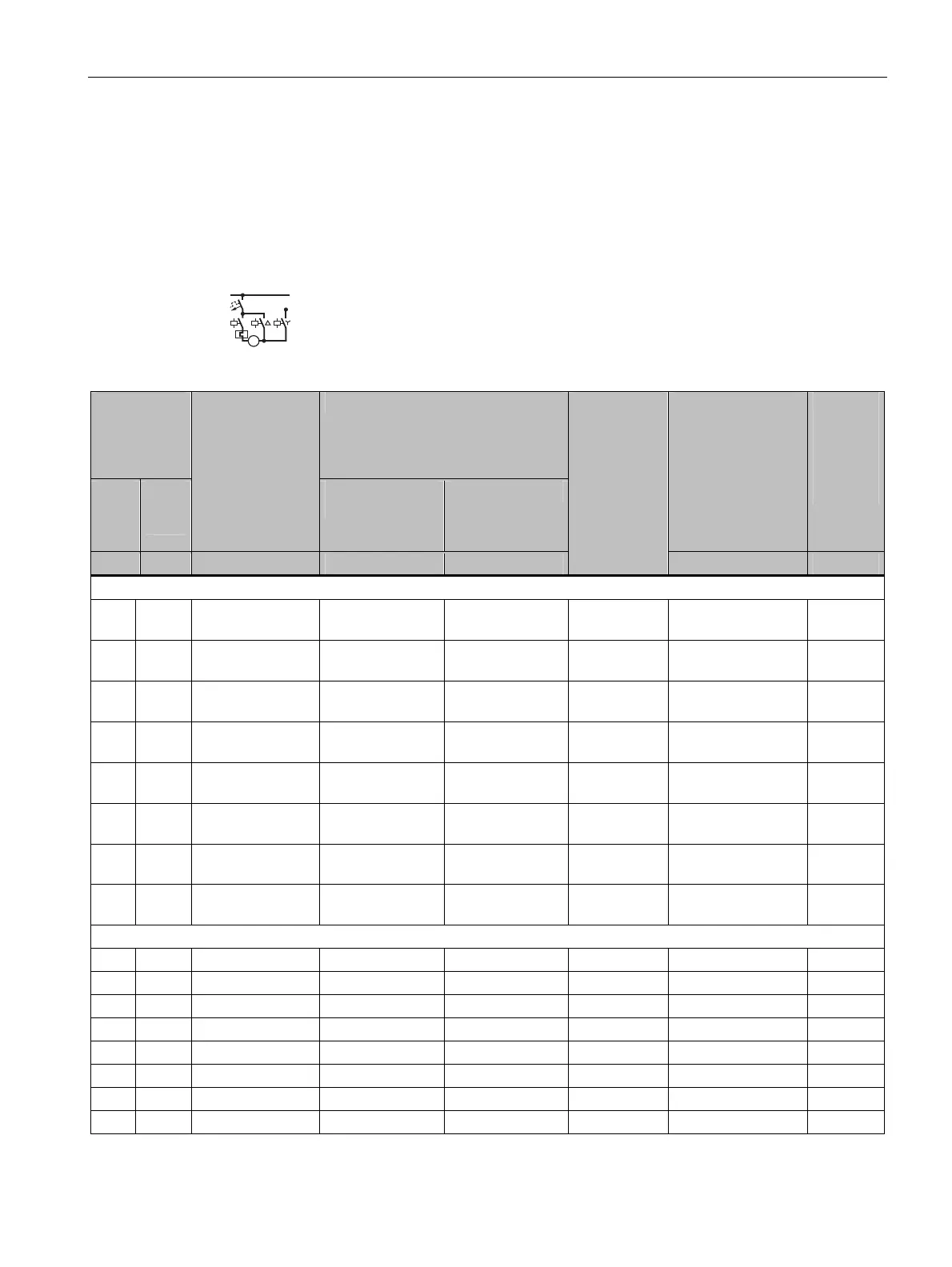

Selection tables 500 V AC
4.6 Motor starter protector + contactor assembly for star-delta start + 3RB22 / 23 / 3 solid-state overload relay, or 3UF7
Configuring SIRIUS Innovations
Configuration Manual, 04/2010, A8E56203880102-02
67
4.6 Motor starter protector + contactor assembly for star-delta start +
3RB22 / 23 / 3 solid-state overload relay, or 3UF7
CLASS 5 and CLASS 10, types of coordination 1 and 2,
short-circuit breaking capacity
I
q
= 100 kA
M
$&9
Standard
three-phase
motor
4-pole at
400 V AC
1)
Contactors
2)
Stan-
dard
output
P
Motor
current
I
Motor starter
protector
Line contactor +
delta contactor
Star contactor
Overload relay
(solid-state) or
current measuring
module
3)
Setting
range
Overload
release
Overload
relay
kW A Order No. Order No. Order No.
Size
Order No. A
Type of coordination 1 with 3RB22, 3RB23 or 3UF7
5,5 9,2 3RV2311-1JC10 3RT2017-1AP01 3RT2017-1AP01 S00/S00/S00 3UF7101-1AA00-0/
3RB2906-2DG1
2,4 ... 25
7,5 12,4 3RV2311-1KC10 3RT2018-1AP01 3RT2017-1AP01 S00/S00/S00 3UF7101-1AA00-0/
3RB2906-2DG1
2,4 ... 25
7,5 12,4 3RV2311-1KC10 3RT2024-1AP00 3RT2024-1AP00 S00/S0/S0 3UF7101-1AA00-0/
3RB2906-2DG1
2,4 ... 25
11 17,6 3RV2321-4BC10 3RT2026-1AP00 3RT2026-1AP00 S0/S0/S0 3UF7101-1AA00-0/
3RB2906-2DG1
2,4 ... 25
11 17,6 3RV2321-4CC10 3RT2026-1AP00 3RT2026-1AP00 S0/S0/S0 3UF7101-1AA00-0/
3RB2906-2DG1
2,4 ... 25
15 23 3RV2321-4DC10 3RT2027-1AP00 3RT2027-1AP00 S0/S0/S0 3UF7101-1AA00-0/
3RB2906-2DG1
2,4 ... 25
18,5 28 3RV2321-4NC10 3RT2027-1AP00 3RT2027-1AP00 S0/S0/S0 3UF7102-1AA00-0/
3RB2906-2JG1
10 ... 100
18,5 28 3RV2321-4EC10 3RT2027-1AP00 3RT2027-1AP00 S0/S0/S0 3UF7102-1AA00-0/
3RB2906-2JG1
10 ... 100
Type of coordination 1 with 3RB3
5,5 9,2 3RV2311-1JC10 3RT2017-1AP01 3RT2017-1AP01 S00/S00/S00 3RB3016-1SB0 3,0 ... 12
7,5 12,4 3RV2311-1KC10 3RT2018-1AP01 3RT2017-1AP01 S00/S00/S00 3RB3016-1SB0 3,0 ... 12
7,5 12,4 3RV2311-1KC10 3RT2024-1AP00 3RT2024-1AP00 S00/S0/S0 3RB3026-1SB0 3,0 ... 12
11 17,6 3RV2321-4BC10 3RT2026-1AP00 3RT2026-1AP00 S0/S0/S0 3RB3026-1QB0 6,0 ... 25
11 17,6 3RV2321-4CC10 3RT2026-1AP00 3RT2026-1AP00 S0/S0/S0 3RB3026-1QB0 6,0 ... 25
15 23 3RV2321-4DC10 3RT2027-1AP00 3RT2027-1AP00 S0/S0/S0 3RB3026-1QB0 6,0 ... 25
18,5 28 3RV2321-4NC10 3RT2027-1AP00 3RT2027-1AP00 S0/S0/S0 3RB3026-1VB0 10 ... 40
18,5 28 3RV2321-4EC10 3RT2027-1AP00 3RT2027-1AP00 S0/S0/S0 3RB3026-1VB0 10 ... 40
