Technical data
6.2 Output
SITOP PSU300S
36 Manual, 12.2016, C98130-A7587-A1-7-7629

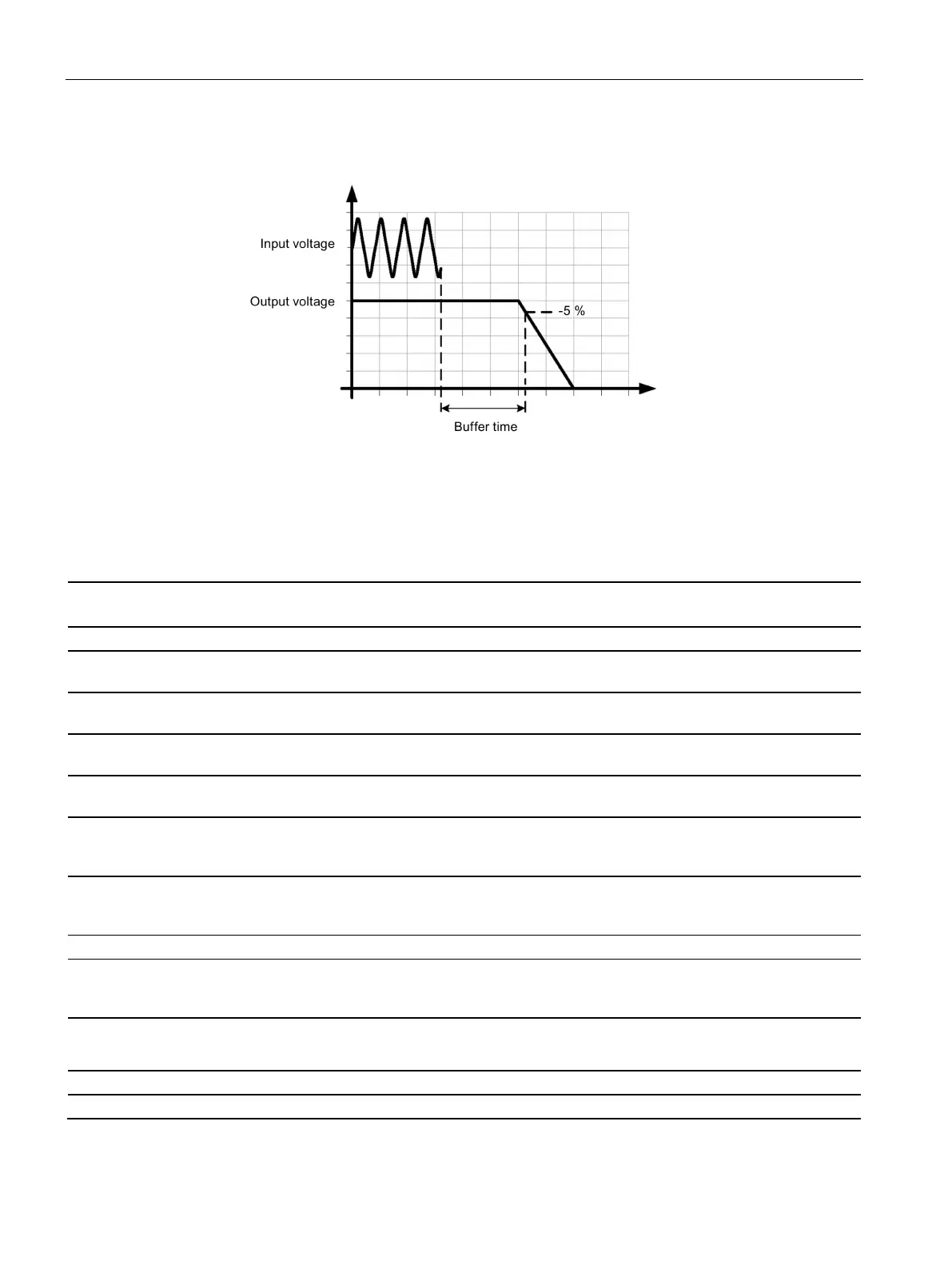

Figure 6-1 Power-failure buffering
6.2
Output
6EP1433-2BA20
(24 V/5 A)
6EP1434-2BA20
(24 V/10 A)
6EP1436-2BA10
(24 V/20 A)
6EP1437-2BA20
(24 V/40 A)
Output
Regulated, isolated DC voltage
Rated voltage U
out rated
DC
24 V
Total tolerance,
static ±
3 % 3 % 3 % 3 %
Static line regulation,
approx.
0.1 % 0.1 % 0.5 % 1 %
Static load regulation,
approx.
0.1 % 0.15 % 1 % 2 %
Residual ripple in the
load range
peak-peak, max.
200mV: 0 - 1.1 A
150mV: >1.1 A
200mV: 0 - 1.1 A
150mV: >1.1 A
150 mV 150 mV
Spikes peak-peak,
max. (bandwidth,
20 MHz)
240 mV 240 mV 240 mV 240 mV
Adjustment range
24 - 28 V
Product function /
output voltage can be
adjusted
Yes
Output voltage setting
• Remark
Using a potentiometer
Max. 120 W Max. 240 W Max. 480 W Max. 960 W
Status display
LED green for "24V O.K."
Signaling
Relay contact (NO contact, rating 60 VDC/0.3 A) for "24V O.K."
