6.4 Closed-loop control
SITOP PSU300S
42 Manual, 12.2016, C98130-A7587-A1-7-7629

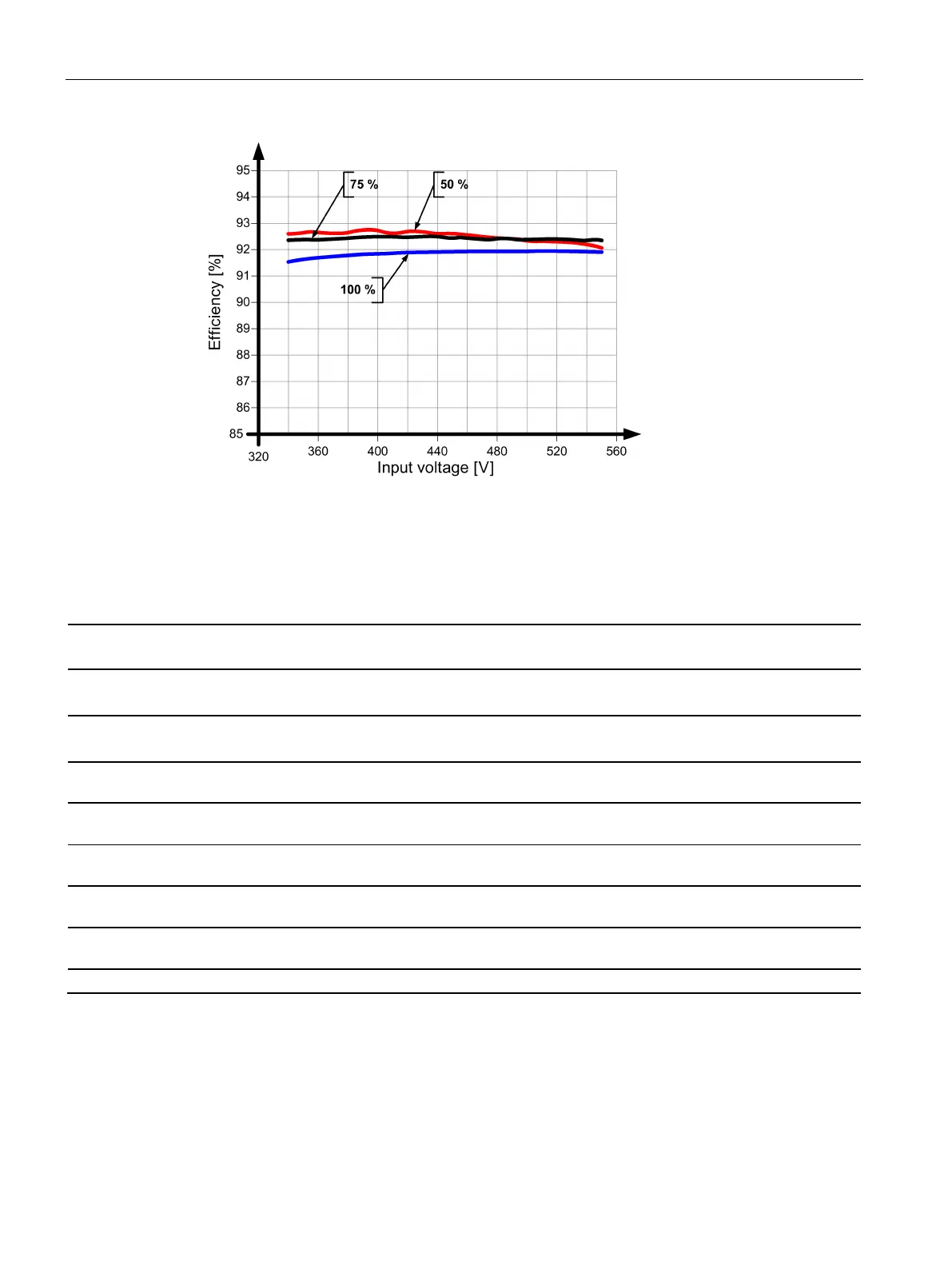

Figure 6-10 Efficiency 6EP1437-2BA20
6.4
Closed-loop control
6EP1433-2BA20 (24 V/5 A)
6EP1434-2BA20 (24 V/10 A)
6EP1436-2BA10
(24 V/20 A)
6EP1437-2BA20
(24 V/40 A)
Dyn. line regulation
(U
in rated
±15 %), max.
1 % 3 % 3 %
Dyn. load regulation
(I
out
: 10/90/10 %), U
out
± typ.
3 % 3 % 3 %
Load step regulation time
10 to 90%, typ.
4 ms 2 ms 1 ms
Load step regulation time
90 to 10%, typ.
4 ms 2 ms 1 ms
Dyn. load regulation
(I
out
: 50/100/50 %), U
out
± typ.
1 % 3 % 1.5 %
Load step regulation time
50 to 100%, typ.
3 ms 2 ms 1 ms
Load step regulation time
100 to 50%, typ.
3 ms 2 ms 1 ms
Regulation time / maximum
10 ms
10 ms
10 ms
