SITOP PSU300S
Manual, 12.2016, C98130-A7587-A1-7-7629
9
Description, device design, dimension drawing
SITOP PSU300S is a primary-clocked power supply for connection to a 3-phase AC line
supply. An electronically regulated DC voltage that can be set via a potentiometer is
available at the output of the device. The output of the device is isolated, no-load proof and
short-circuit proof. The LED display indicates the operating status. The operating state of the
device can be processed via the signaling contact.
Signaling contacts (24 V OK)
Indicator light (24 V OK)

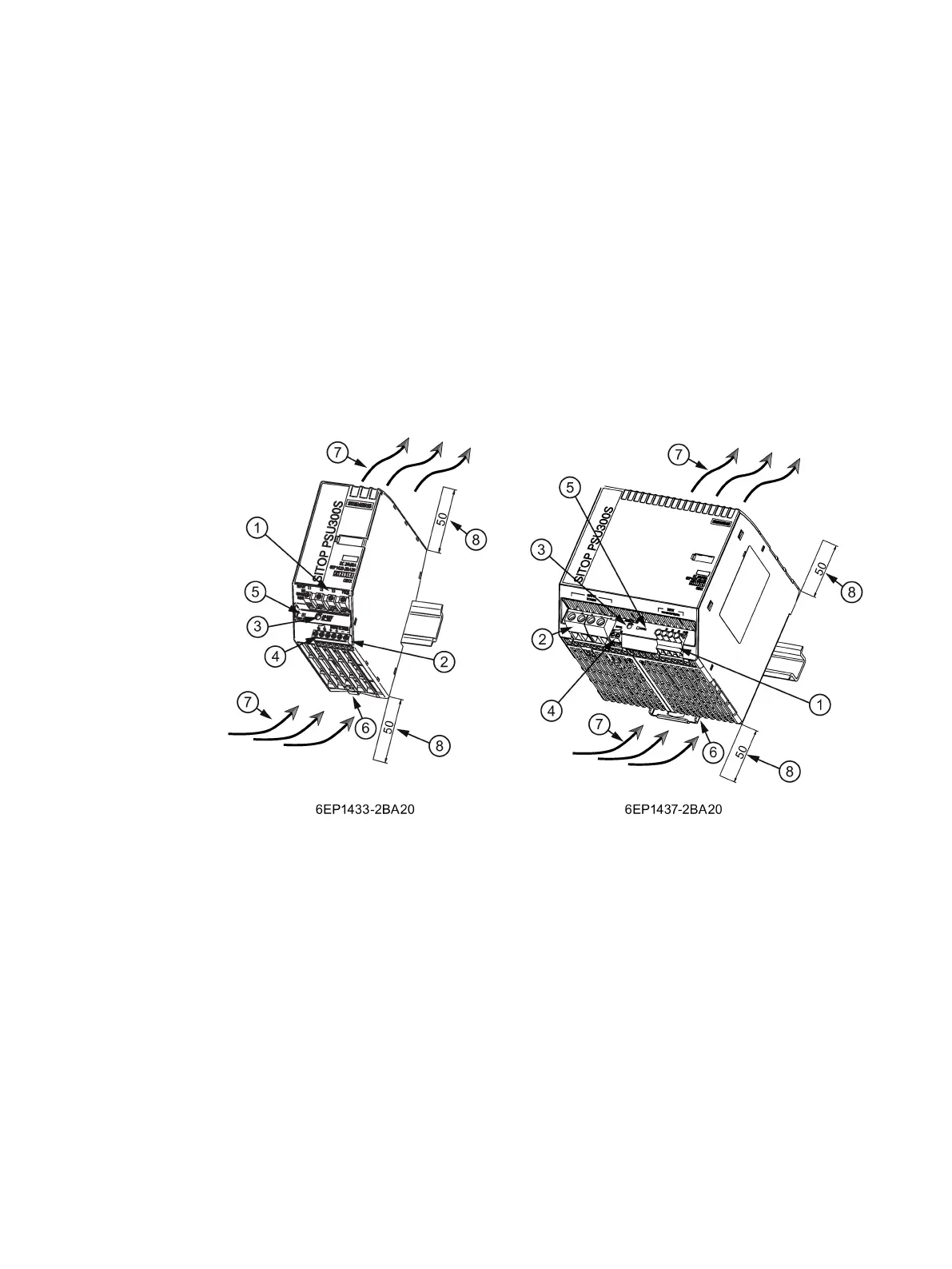

Figure 2-1 Design
