Safety, approvals, EMC
7.2 Test voltage
SITOP PSU300S
48 Manual, 12.2016, C98130-A7587-A1-7-7629
7.2
Test voltage

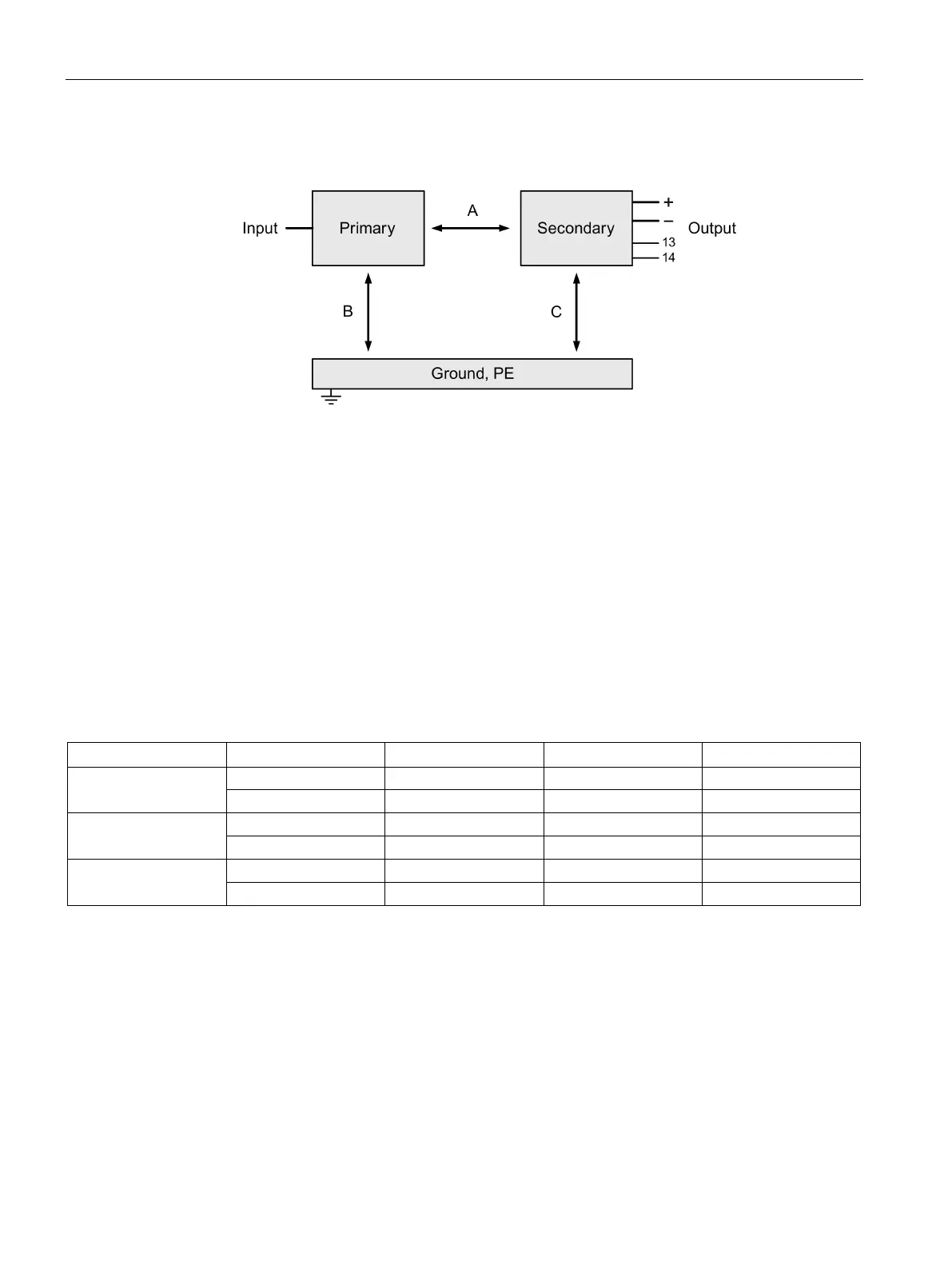

Figure 7-1 Test voltage diagram
Only the manufacturer can perform the type test and production test; users can also perform
the field test.
Preconditions for performing the field test:
Tests (A) & (B)
● Connect the input terminals with one another
● Connect the output terminals, signaling contact and PE with one another
Test (C)
● Connect the output terminals and signaling contact with one another and measure with
respect to PE
Table 7- 1 Test voltage
Test time
Prim ↔ sec (A)
Prim ↔ PE (B)
Sec ↔ PE (C)
Type test 60 s 4200 V DC 2200 V DC 700 V DC
60 s
3000 V AC
1500 V AC
500 V AC
Production test 1 s 2200 V DC 2200 V DC 500 V DC
1 s
1500 V AC
1500 V AC
350 V AC
Field test
1 s
2200 V DC
2200 V DC
500 V DC
1 s
1500 V AC
1500 V AC
350 V AC
Remark:
Tripping current for DC measurement: 0
mA
Tripping current for AC measurement: < 100 mA
