Check Transmission Oil Level
Hydro - Gear 310-0510 Models
Transmission Oil Type: SAE 20W-50 with a minimum
API rating of SG/CD.
1. Lift the seat deck forward to expose the engine com-
partment. Locate the access hole (A, Figure 5) and
the transmission fill plug.
2. Clean the transmission housing (C) area around the
fill plug. Remove fill plug (B). Check that there is oil
present. The oil level is 1-1/4” (31.7 cm) from the top
of the transmission. If there is not enough oil present,
add 20W-50 SG engine oil until the oil level is correct.
DO NOT OVERFILL.

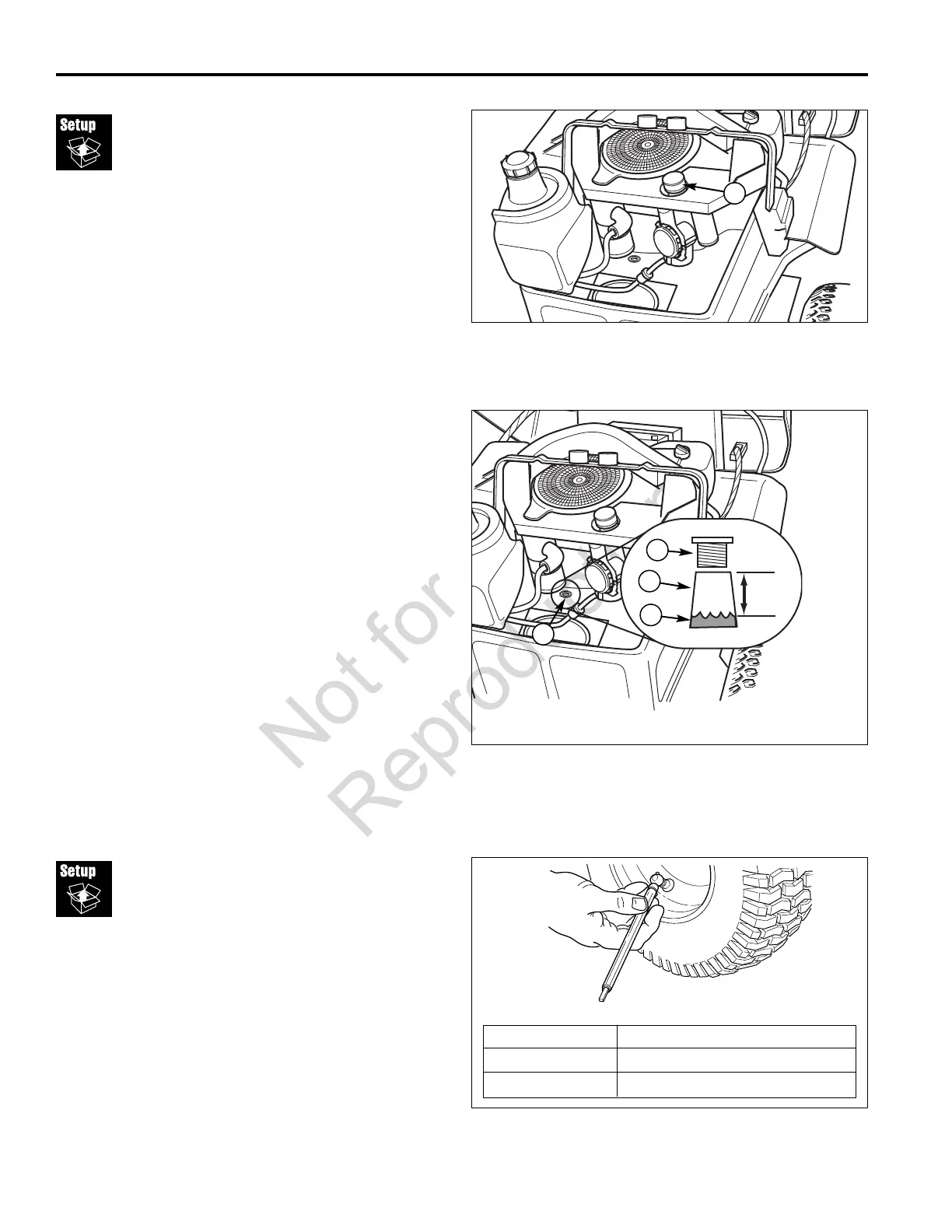

Figure 5. Transmission Oil Check
A. Access Hole C. Transmission Housing
B. Fill Plug D. Transmission Oil Level
A
D
B
Reduce & Check Tire
Pressures
The tires are over-inflated for shipping purposes. Inflate
to the pressures shown. Note that these pressures may
differ slightly from the “Max Inflation” stamped on the
side-wall of the tires. The pressures shown provide prop-
er traction, improve cut quality, and extend tire life.
Figure 6. Tire Pressure
1-1/4”
Tire Pressure
Front 10-12 psi (,68-,82 bar)
Rear 10-12 psi (,68-,82 bar)
Check
Fluid Levels
Fill & Check Engine Oil
1. Use the dipstick (A, Figure 4) to check the engine oil
level. If necessary add engine oil. Check engine
manufacturer’s owner’s manual for oil recommenda-
tions.
Figure 4. Check / Fill Oil
A. Dip Stick / Oil Fill
A
C
