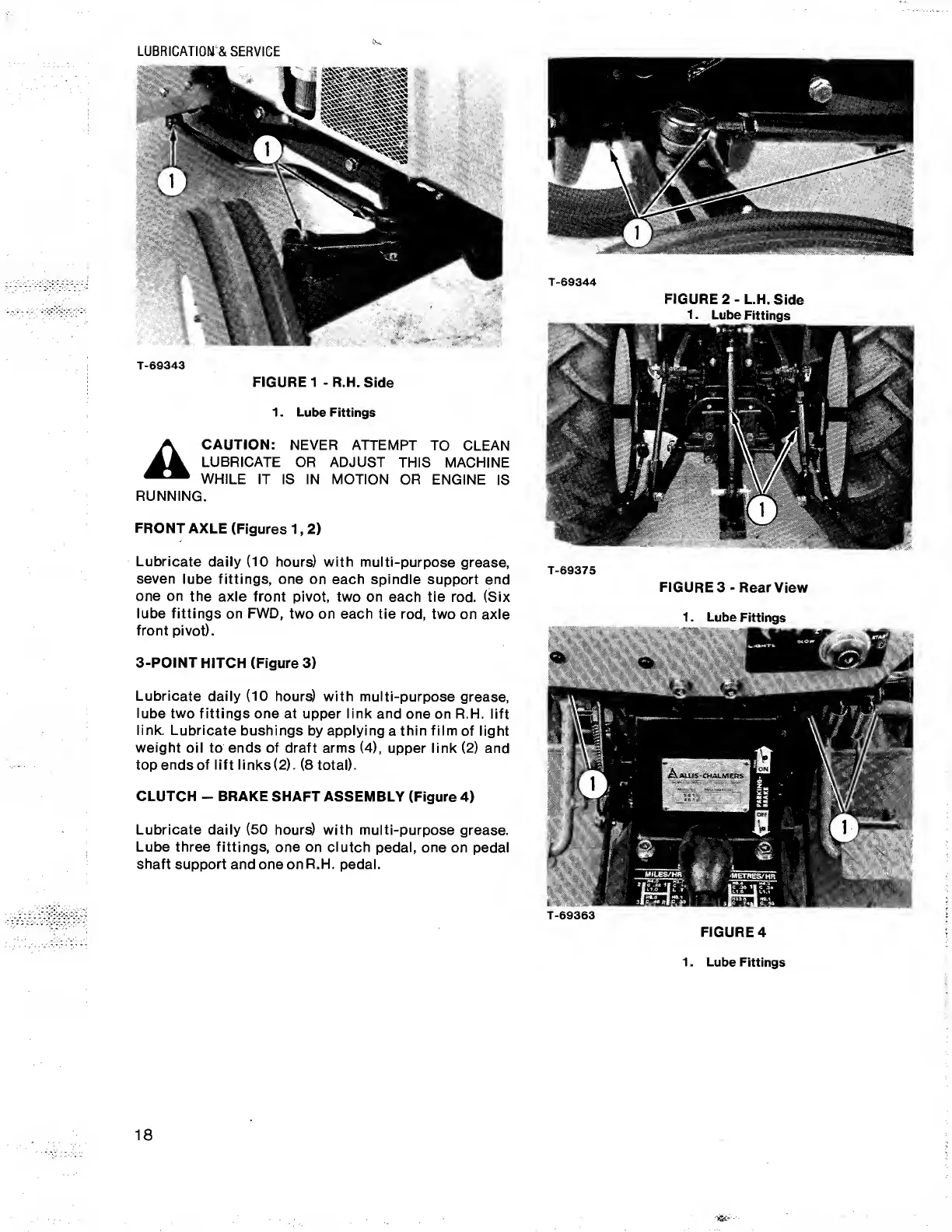

LUBRICATION & SERVICE
T-69344
FIGURE 2 -L.H. Side
1. Lube Fittings
FIGURE 1 - R.H. Side
1. Lube Fittings
CAUTION: NEVER ATTEMPT TO CLEAN
LUBRICATE OR ADJUST THIS MACHINE
WHILE IT IS IN MOTION OR ENGINE IS
RUNNING
FRONT AXLE (Figures 1,2)
Lubricate daily (10 hours) with multi-purpose grease,
seven lube fittings, one on each spindle support end
one on the axle front pivot, two on each tie rod. (Six
lube fittings on FWD, two on each tie rod, two on axle
front pivot).
FIGURE 3 - RearView
1. Lube Fittings
